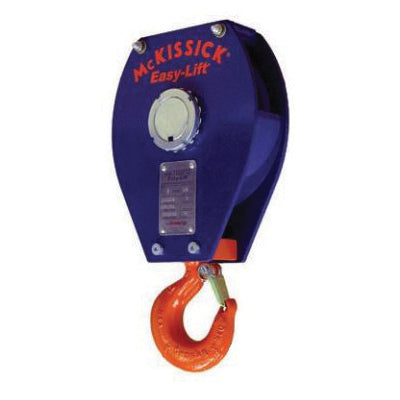

McKissick 751 Bridge Crane Overhead Block - 9/16 in - 5 Ton - 10 in

Product Description

The McKissick 751 Bridge Crane Overhead Block is a single-groove overhead block engineered for bridge crane and overhead lifting applications in industrial facilities, manufacturing plants, steel mills, and heavy fabrication environments. Rated for a 5-ton working load limit, this block is built around a 10-inch outside diameter sheave with a single groove, accommodating wire rope cable up to 9/16 inch in diameter. With overall dimensions of 21 inches high by 11.12 inches wide by 3.5 inches thick, the 751 presents a notably slim block profile that distinguishes it from the double-groove 752 series, making it well suited for overhead crane applications where a single-part line reeving arrangement and a compact block width are required.

The single-groove sheave configuration is designed for single-part line reeving arrangements where one wire rope run is guided through the block, providing straightforward load handling in overhead crane systems where multi-part reeving is not required. The 10-inch sheave diameter provides a suitable rope bend radius for the 9/16-inch wire rope accommodated by this block, supporting rope longevity during the high-cycle lifting operations typical of industrial bridge crane service. The slim 3.5-inch block thickness makes the 751 a practical choice for installations where lateral clearance is limited or where a low-profile overhead block is specified.

The McKissick 751 is designed to meet the demanding requirements of overhead bridge crane service, where consistent, dependable block performance across repeated lifting cycles is essential for safe and efficient facility operations. This block is well suited for installation in bridge crane, gantry crane, and overhead hoist systems in steel mills, manufacturing plants, heavy fabrication shops, and industrial facilities where a single-groove overhead block with a slim profile is specified.

Material:

Steel (body and side plates)

Compatible With:

Wire rope cable up to 9/16 in diameter Bridge crane and overhead hoist single-part line reeving systems

Uses:

Single-part line reeving in bridge crane and gantry crane systems Overhead lifting in industrial manufacturing and fabrication facilities Steel mill and heavy industrial crane block applications Overhead hoist load handling where slim block profile is required

Key Features:

5 Ton working load limit 10 in sheave outside diameter 1 rope groove for single-part line reeving Accommodates wire rope cable up to 9/16 in diameter Overall dimensions: 21 in H x 11.12 in W x 3.5 in THK Slim block profile for installations with limited lateral clearance Purpose-built for bridge crane and overhead lifting applications McKissick 751 series
