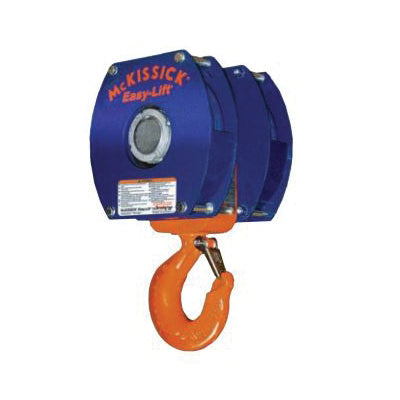

McKissick 752 Series Bridge Crane Block - 7.5 Ton - 7/16 in Wire Rope - 10 in Sheave

Product Description

The McKissick 752 Series Bridge Crane Block is a heavy-duty overhead lifting block engineered for demanding industrial crane applications. Designed for use with bridge cranes and overhead crane systems, this block delivers reliable performance in environments where consistent load control and durability are essential. The 752 Series is a well-established product line from McKissick, a brand recognized throughout the rigging and lifting industry for manufacturing high-quality blocks and sheaves.

This block is rated for a 7.5 ton capacity and is designed to accommodate a maximum cable diameter of 7/16 in. The 10 in sheave outside diameter and 2-groove configuration allow for efficient reeving arrangements suited to standard bridge crane setups. The overall dimensions of 20.25 in H x 11.12 in W x 10.44 in THK give this variant a larger thickness profile compared to other 7.5 ton options in the 752 Series, and this dimension should be carefully evaluated against available crane clearances prior to installation.

The 752 Series overhead block is built to withstand the repetitive duty cycles common in manufacturing facilities, warehouses, steel service centers, and other industrial operations. Its construction supports smooth cable travel across the sheave grooves, reducing wear on both the cable and the block during extended use. The 7/16 in maximum cable diameter at the 7.5 ton rating is among the finer wire rope specifications available in this series at this load level and should be confirmed against McKissick documentation and the crane system's installed wire rope before ordering.

Material:

Consult McKissick documentation for confirmed material specifications

Compatible With:

Bridge crane and overhead crane systems 7/16 in maximum wire rope cable Standard crane hook or suspension hardware compatible with this block series

Uses:

Bridge crane lifting and load positioning Overhead material handling in industrial facilities Manufacturing and warehouse crane systems Steel service center and mid-range industrial applications

Key Features:

752 Series overhead crane block 7.5 Ton rated capacity 7/16 in maximum cable diameter 10 in sheave outside diameter 2-groove sheave configuration Overall dimensions: 20.25 in H x 11.12 in W x 10.44 in THK Designed for bridge crane and overhead crane use

Note:

Material composition and finish details should be confirmed against the official McKissick 752 Series product documentation or catalog prior to specification. The 10.44 in THK dimension should be verified against available crane clearance before installation. The 7/16 in cable diameter at the 7.5 ton rating should be confirmed against McKissick documentation and the crane system's installed wire rope before ordering. Do not assume certifications or standards compliance without verification from McKissick or an authorized distributor.
