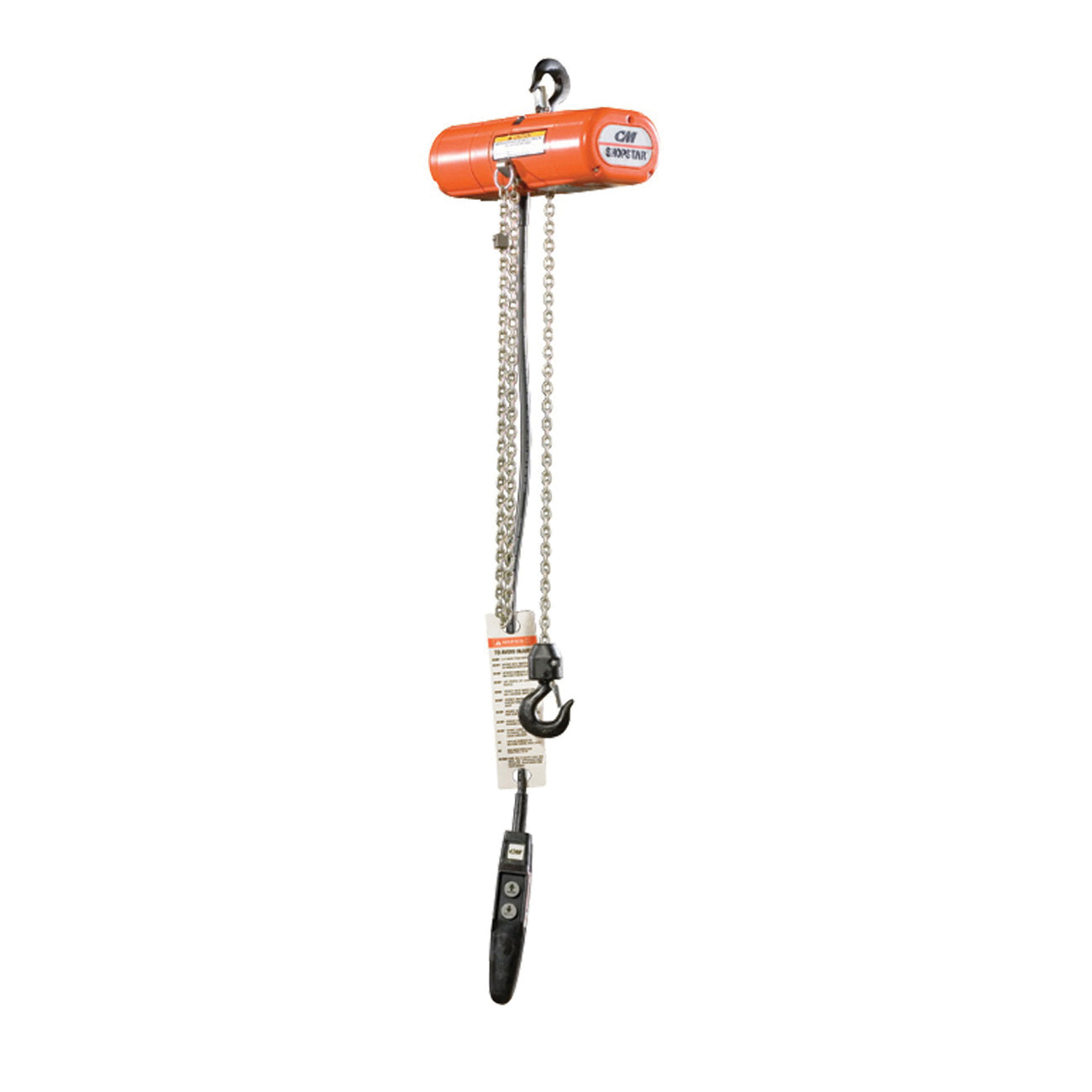

ShopStar Electric Chain Hoist - 500 lb Double Reeving 10 ft Lift 8 FPM 230 VAC

Product Description

The CM ShopStar Electric Chain Hoist is a compact powered lifting unit designed for rugged commercial and industrial material handling. These double-reeved models have a 10 ft Lift and are available in 500 lb, 600 lb and 1000 lb capacities. Depending on the selected configuration, lifting speeds include 6, 8, 12 or 20 FPM, with one-speed controls and electrical options that include 230, 460 and 575 VAC where specified. The double-reeved arrangement supports higher-capacity lifting while maintaining the ShopStar’s compact workstation-oriented design.

The hoist uses a thermally protected motor and a cast aluminum alloy frame with a durable epoxy powder-coated finish. Its totally enclosed construction helps protect the motor from environmental contamination, while the lifetime-lubricated gear train reduces routine maintenance requirements. The 10-pocket oblique-lay liftwheel promotes smooth chain engagement, consistent lifting motion and extended load-chain wear.

A standard overload device helps protect the hoist and supporting structure against damaging overloads. The dual braking system combines a DC brake with regenerative braking for controlled stopping and secure load holding. A NEMA 4 industrial control station supports operation in demanding work areas, while available hook suspensions, trolleys and chain containers allow the hoist to be adapted to different fixed or mobile overhead lifting arrangements.

Material:
Cast aluminum alloy hoist frame
CM Hoist alloy load chain
Steel liftwheel and internal gearing
Epoxy powder-coated exterior finish

Compatible With:
Properly rated overhead suspension points
CM Series 632 manual push trolley
CM Universal Trolley
Compatible ShopStar chain containers
Electrical service matching the selected model voltage

Uses:
Workstation lifting
Production-line material handling
Manufacturing and assembly operations
Maintenance and equipment servicing
Commercial and industrial load handling
Repetitive lifting and positioning applications

Key Features:
H4 industrial duty cycle
Standard overload protection
Dual DC and regenerative braking
Lifetime-lubricated gear train
10-pocket oblique-lay liftwheel
NEMA 4 industrial control station
