Valustar Model WB Electric Chain Hoist - 0.25 Ton Single Reeving 10 ft Lift 16 FPM 115 VAC

Product Description

Product Description:

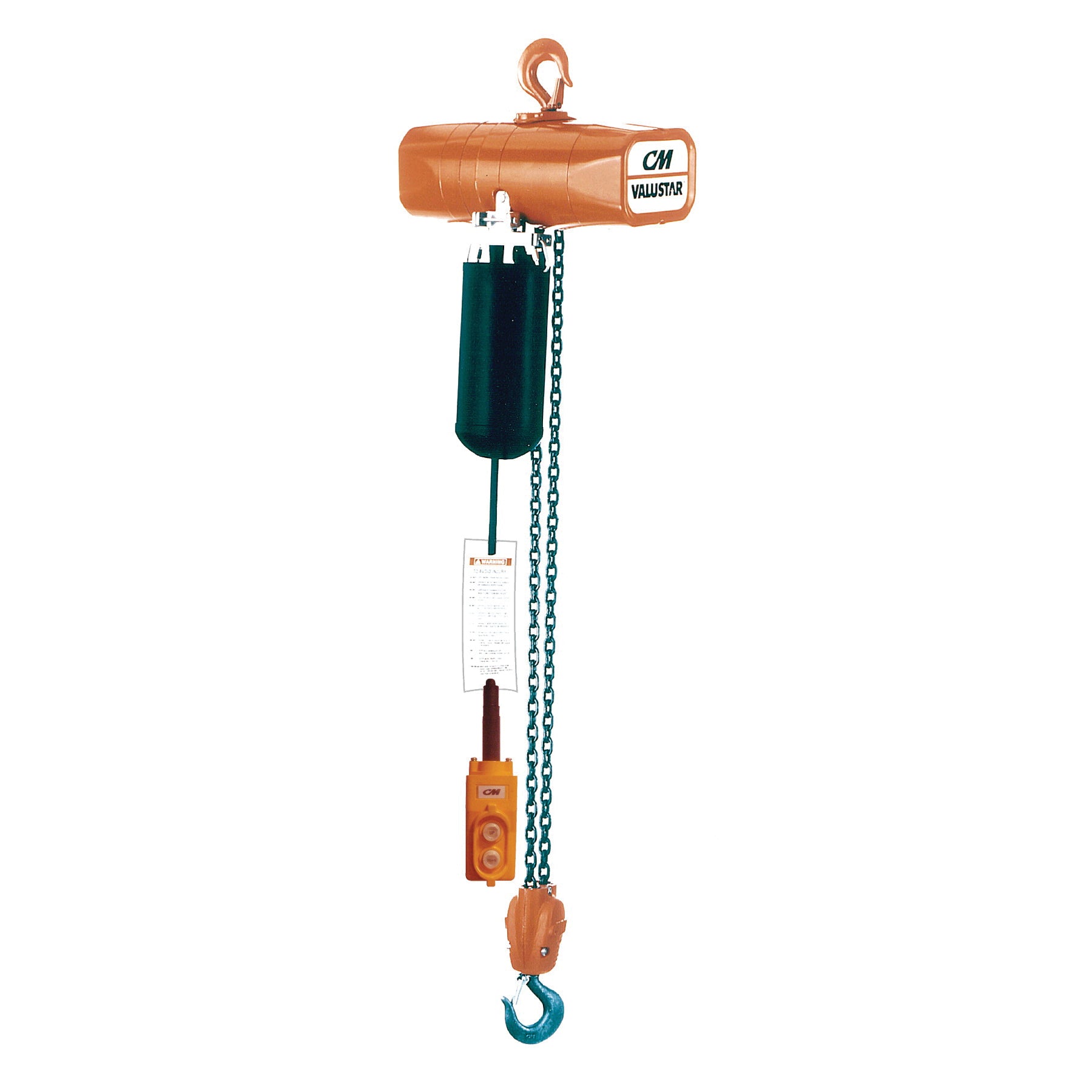

The CM Valustar Model WB Electric Chain Hoist is a compact, economical lifting unit designed for general commercial material-handling applications. These single-reeved models provide a 0.25 Ton capacity, 16 FPM lifting speed and one-speed control. Available configurations include 10, 15 and 20 ft Lift options with either 115 VAC single-phase or 230/460 VAC three-phase power. Model WB provides 14-1/4 in minimum headroom and a 1 in hook opening.

A fully machined and heat-treated liftwheel works with hardened chain guides to provide smooth chain travel and reduce wear. CM Hoistaloy load chain supports dependable lifting performance, while the fully machined and heat-treated gear train is permanently lubricated with non-oxidizing grease for extended service life and reduced maintenance. An enclosed hoist-duty motor protects the drive system during regular commercial operation.

The Valustar uses a heavy-duty caliper-type AC brake with regenerative braking for controlled stopping and dependable load holding. A standard overload Protector device helps prevent lifting beyond the rated capacity, while the rugged NEMA 4 control station supports reliable operation in demanding environments. Single-phase Valustar models are rated for H3 duty, while three-phase configurations are rated for H4 duty.

Material:
Fully machined and heat-treated liftwheel
Hardened steel chain guides
CM Hoistaloy alloy steel load chain
Fully machined and heat-treated gear train
Forged steel latch-style hooks

Compatible With:
Properly rated overhead suspension points
Standard CM hook suspension
115 VAC single-phase electrical service
230/460 VAC three-phase electrical service
Compatible CM Valustar chain containers

Uses:
General commercial lifting
Workstation material handling
Light manufacturing and assembly
Warehouse load positioning
Equipment installation and maintenance
Repetitive lifting and lowering applications

Key Features:
0.25 Ton single-reeved construction
16 FPM single-speed lifting
Heavy-duty caliper-type AC brake
Regenerative braking
Standard overload Protector device
NEMA 4 control station
Lifetime-lubricated gear train
