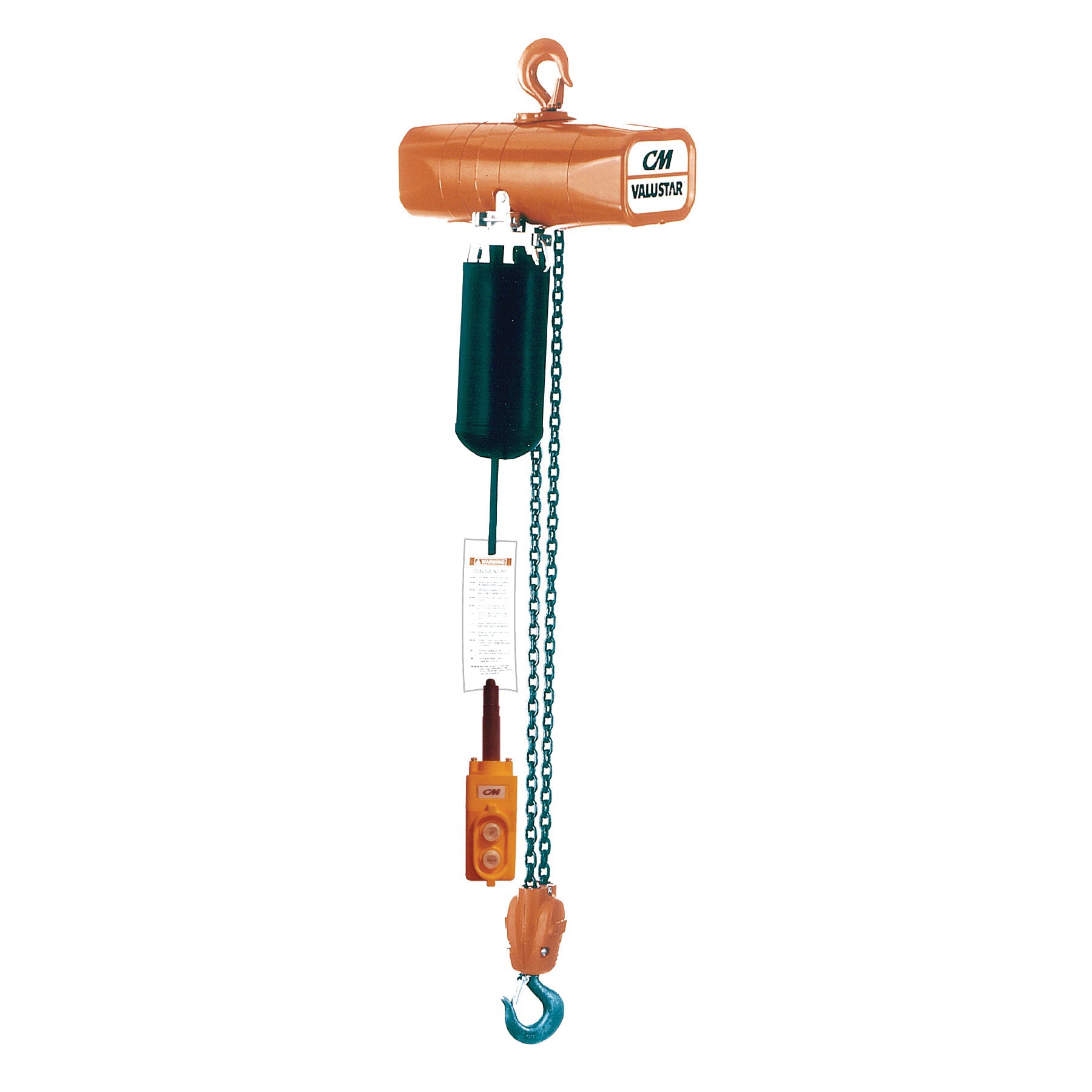

Valustar Model WF Electric Chain Hoist - 0.5 Ton Single Reeving 20 ft Lift 16 FPM 230/460 VAC

Product Description

Product Description:
The CM Valustar Model WF Electric Chain Hoist is designed for powered lifting, lowering and load positioning in manufacturing, maintenance and general industrial material-handling applications. These single-reeved configurations provide a 0.5 Ton lifting capacity, a 16 FPM lifting speed and available lifting heights of 10, 15 or 20 ft.

One-speed control provides consistent vertical load movement for repetitive lifting tasks. The compact design provides 14-1/4 in minimum distance between hooks, helping preserve available lifting space beneath the supporting structure, while the 1 in hook opening accommodates compatible lifting attachments.

A caliper-type AC braking system supports controlled stopping and dependable load holding. Available 115 and 230/460 VAC electrical configurations allow the appropriate model to be matched to the facility power supply.

Material:
Metal hoist frame and housing
Alloy steel load chain
Hardened steel drive components
Forged steel hook assemblies
Industrial electrical and control components

Compatible With:
Properly rated overhead suspension points
Approved hook and lug suspension systems
Compatible plain, geared and motorized trolleys
115 VAC electrical systems for applicable models
230/460 VAC electrical systems for applicable models
Manufacturer-approved load chain and replacement components

Uses:
Manufacturing and production lifting
Assembly and fabrication operations
Equipment installation and maintenance
Warehouse material handling
Workstation load positioning
Repetitive lifting and lowering
Controlled positioning of machinery and components

Key Features:
0.5 Ton lifting capacity
Single-reeved load-chain configuration
10, 15 and 20 ft lifting-height options
16 FPM lifting speed
One-speed control
Caliper-type AC braking system
14-1/4 in minimum headroom
1 in hook opening
