CLAMP 9 TON VERTICAL 2.00-4.00 JAW UNIV

Product Description

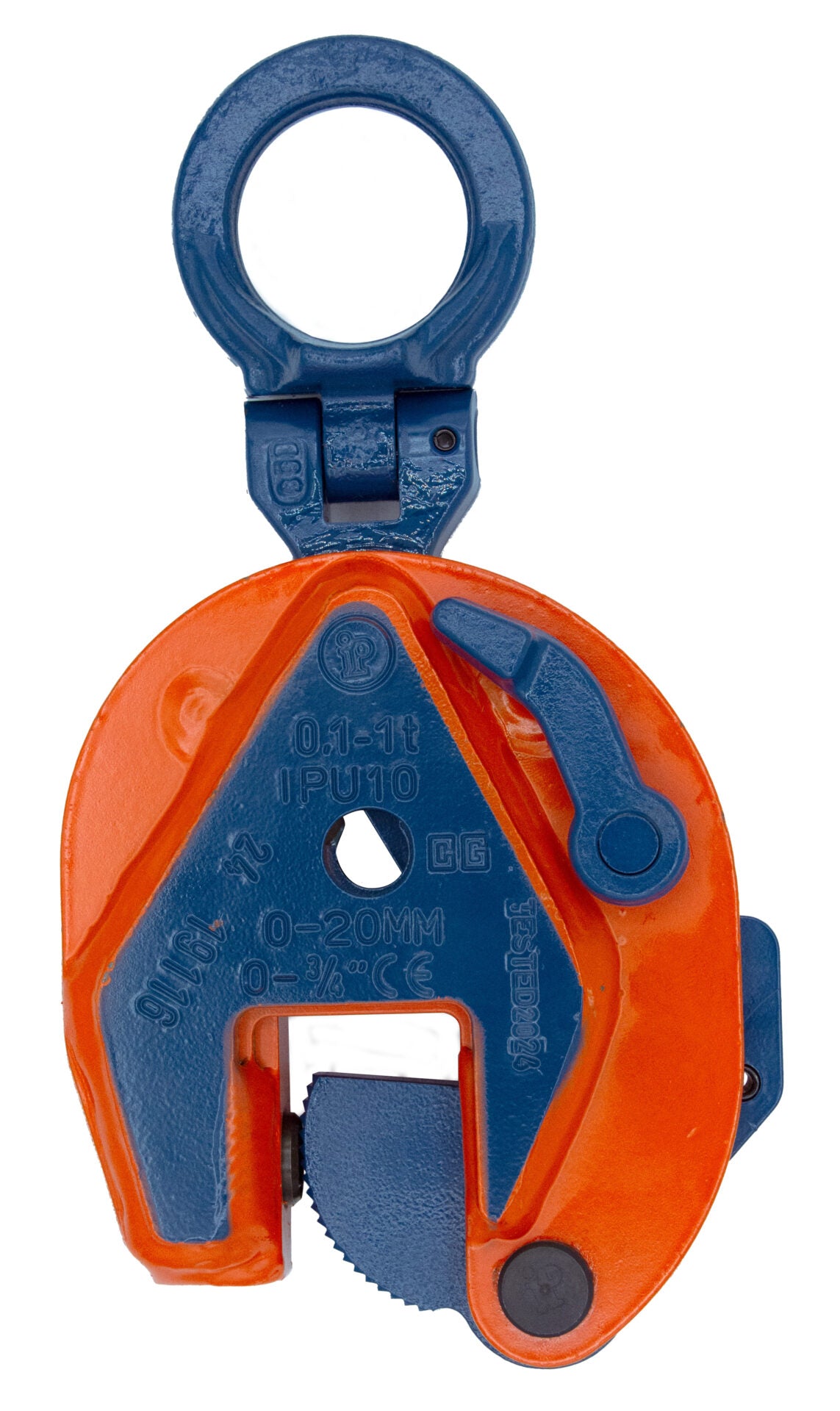

IPU10/J - 9t Vertical Lifting Clamp w/Universal Eye 2-4" Larger Jaw
• Larger jaw opening.
• Model IPU10R (remote control opening and closing via a cable) on request.
• Model IPU10W (wedge) available on request.
• Welded alloy steel body for strength and smaller size. Forged alloy components, where required.
• Individually Proof Tested to 2 times the Working Load Limit with certification.
• Company name (Crosby IP), logo, Working Load Limit and jaw opening permanently stamped on body.
• Each product is individually serialized, with the serial number and Proof Load test date stamped on body. User manual with test certificate is included with each clamp.
• Full 180° turning range for material transfer, turning or moving.
• Lock open, lock closed ability with latch for pretension on material and then release of material.
• Maintenance and repair kits are available.
• Minimum WLL is 10% of maximum WLL.
• For plate surface hardness to 279HV10, only 5% minimum WLL is needed.
• Design Factor based on EN 13155 and ASME B30.20.
