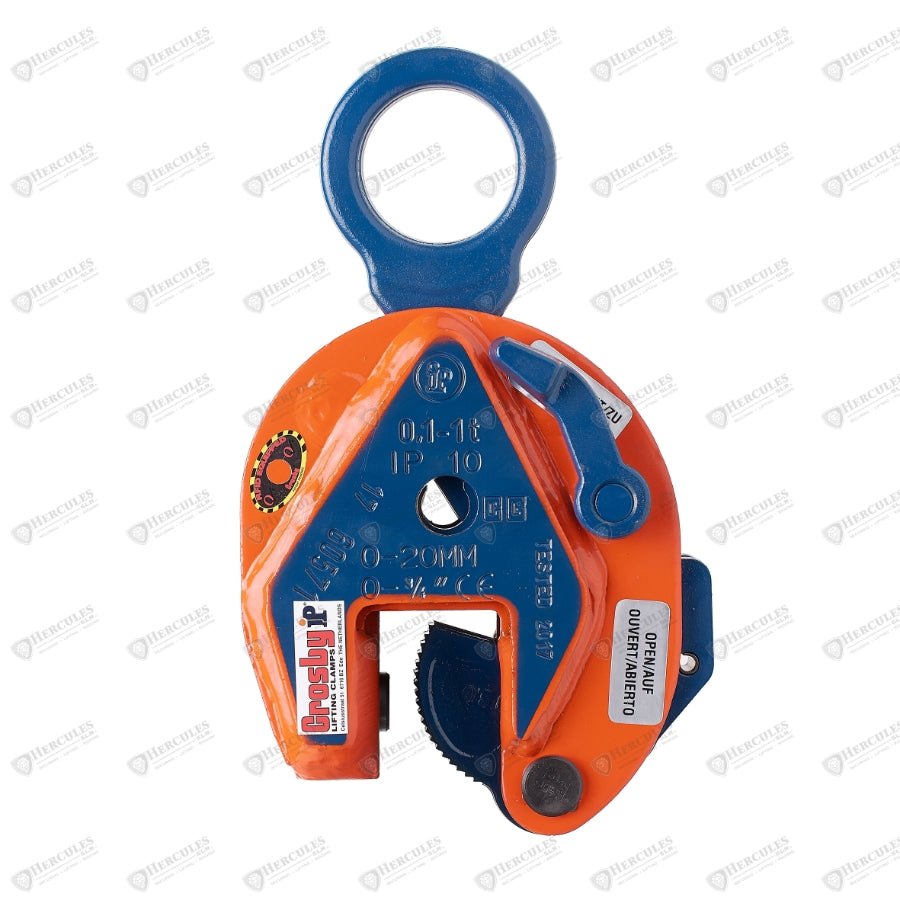

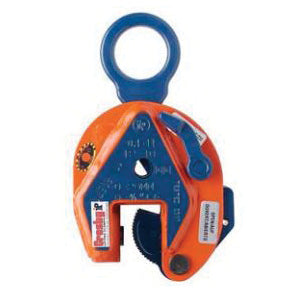

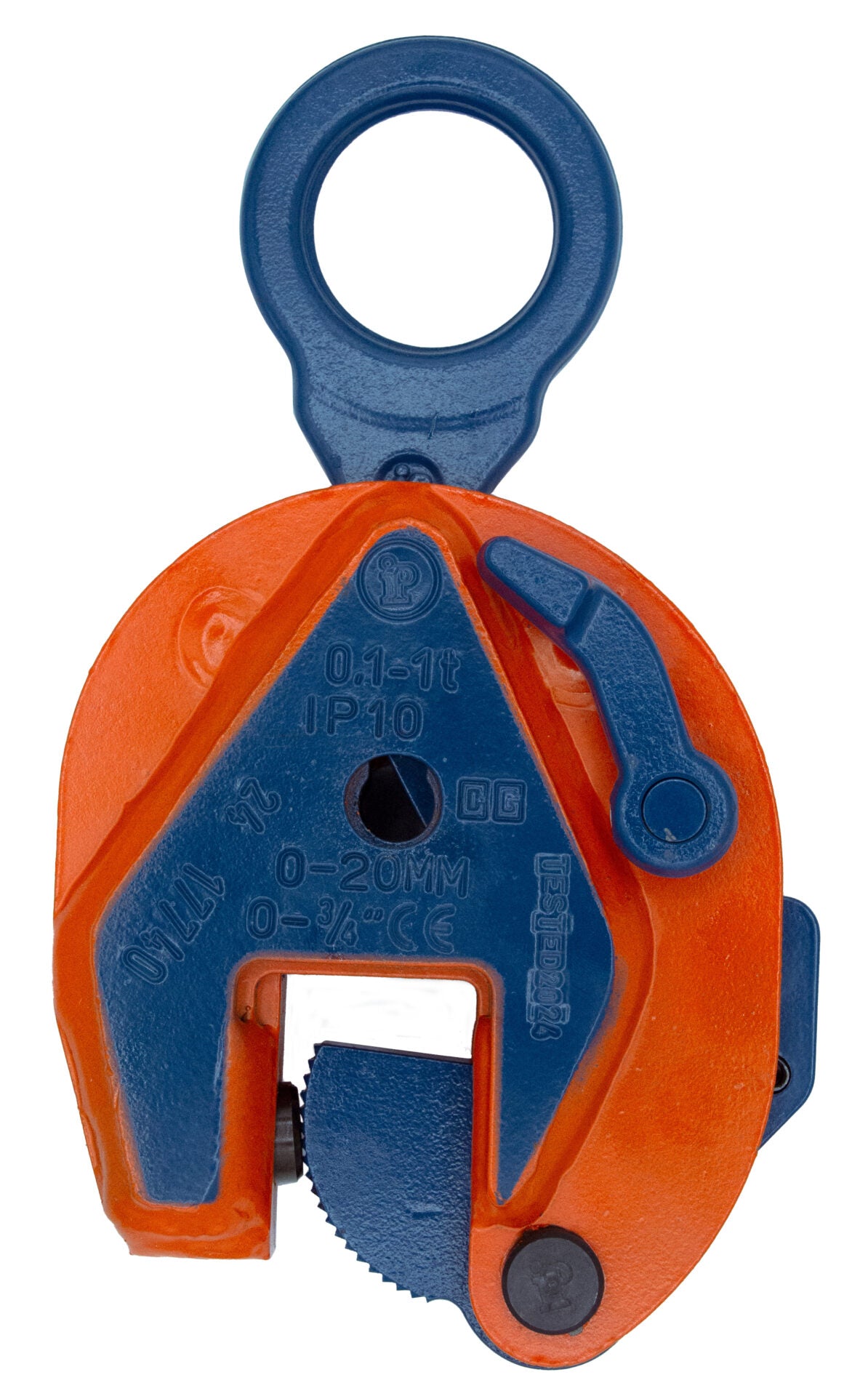

Crosby IP Model IP10 lifting clamps are designed for the vertical lifting, turning, and transfer of steel plates, sheet metal, and fabricated structures. These clamps are engineered to allow movement of materials from horizontal to vertical positions and back, providing flexibility in lifting operations.
The clamps are available in multiple configurations to suit different applications. The IP10 is the standard model, IP10J offers a larger jaw opening, IP10S is designed for use with stainless steel materials, and IP10H is suitable for higher hardness materials.

Material:
Body: Welded alloy steel
Components: Forged alloy steel (where required)

Specifications:
Designed for vertical lifting, turning, and positioning of plates and fabrications
Provides a full 180° turning range for material handling
Available in multiple models:
IP10 – Standard clamp
IP10J – Larger jaw opening
IP10S – For stainless steel materials
IP10H – For higher hardness materials
Equipped with lock open / lock closed latch system for pretension gripping
Individually proof tested to 2× Working Load Limit with certification
Clamp body marked with logo, WLL, and jaw opening
Each unit is individually serialized with proof load test date
Minimum WLL is typically 10% of maximum WLL (5% for select models)
Operating temperature range: -40°C to +100°C
Maintenance and repair kits available

Uses:
Vertical lifting of steel plates
Turning and positioning materials (0° → 180°)
Handling fabricated structures
Industrial and construction lifting operations

Key Features:
Multi-function design – Lifts, turns, and transfers materials
Model versatility – Multiple variants for different materials and applications
Pretension locking system – Ensures secure grip before lifting
180° rotation capability – Enables full material positioning control
High strength construction – Welded and forged alloy steel
Proof tested – Certified to 2× Working Load Limit
Traceability – Serialized with stamped identification

Model Working Load Limit (t)* Stock No. Weight Each (lb) Jaw A (in) Dimension B (in) Dimension C (in) Dimension D (in) Dimension E (in) Dimension F (in) Dimension G (in) Dimension H (in) Dimension J (in) Dimension K (in) Maintenance Kit Stock No.
IP10
IP10 0.5 2701674 3.97 0 - 0.63 1.73 5.12 7.99 1.57 4.53 1.65 1.10 — 0.43 2715054
IP10 1 2701662 4.85 0 - 0.75 1.77 5.47 8.35 1.57 5.00 1.65 1.50 — 0.43 2715009
IP10 2 2701676 16.8 0 - 1.38 3.07 7.91 12.99 2.76 7.40 2.52 2.17 — 0.63 2715063
IP10 3 2701664 30.4 0 - 1.56 3.94 9.96 17.09 2.95 8.74 3.07 2.36 — 0.79 2715018
IP10 4.5 2701666 33.1 0 - 1.56 3.94 9.96 17.09 2.95 8.94 3.23 2.56 — 0.79 2715018
IP10 6 2701668 50.3 0 - 2.00 4.96 11.89 20.35 3.15 11.50 3.31 3.74 1.57 0.79 2715036
IP10 9 2701670 65.8 0 - 2.00 4.96 12.80 21.42 3.15 12.20 3.70 4.09 1.73 0.98 2715288
IP10 12 2701678 111 0 - 2.13 6.30 15.43 22.60 3.15 17.05 4.76 5.39 1.61 0.98 2715102
IP10 16 2701682 150 0.25 - 2.50 7.09 18.23 27.01 3.46 19.37 4.76 6.02 1.77 0.98 2715108
IP10 22.5 2701686 243 0.25 - 3.13 8.74 21.81 31.81 4.33 22.24 5.47 7.32 1.93 0.98 2715114
IP10 30 2701690 273 0.25 - 3.13 8.74 21.81 31.61 4.33 22.24 6.02 7.32 2.13 1.18 2715120
IP10J - With Larger Jaw Opening
IP10J 0.5 2701646 3.97 0.59 - 1.18 1.77 5.04 8.23 1.57 5.04 1.61 1.26 — 0.43 2715054
IP10J 1 2702462 5.07 0.75 - 1.56 2.17 5.94 8.35 1.57 5.55 1.65 1.57 — 0.43 2715012
IP10J 3 2702458 36.4 1.56 - 3.13 4.53 10.63 16.93 2.95 10.91 3.07 2.64 — 0.79 2715021
IP10J 4.5 2702460 39.7 1.56 - 3.13 4.53 10.63 16.93 2.95 10.91 3.23 2.83 — 0.79 2715021
IP10J 6 2701705 55.8 2.00 - 4.00 4.96 11.89 19.92 3.15 13.23 3.31 3.74 1.57 0.79 2715040
IP10J 9 2701672 73.1 2.00 - 4.00 4.96 12.80 21.34 3.15 14.17 3.70 4.13 1.73 0.98 2715050
IP10J 12 2701680 128 2.13 - 4.25 7.01 17.24 24.41 3.15 19.33 4.76 5.35 1.61 0.98 2715105
IP10J 16 2701684 176 2.50 - 5.00 8.19 20.51 28.90 3.46 22.13 4.76 6.30 1.77 0.98 2715111
IP10J 22.5 2701688 287 3.13 - 6.13 10.04 24.72 34.76 4.33 25.98 5.47 7.72 1.93 0.98 2715117
IP10J 30 2701692 336.0 3.13 - 6.13 10.04 24.72 34.92 4.33 25.98 6.02 7.72 2.13 1.18 2715123
IP10S - For Stainless Steel, With Fixed Hoisting Eye
IP10S 0.5 2702274 3.97 0 - 0.63 1.73 5.12 7.99 1.57 4.53 1.65 1.10 — 0.43 2715234
IP10S 1 2702262 16.8 0 - 0.75 1.77 5.47 8.35 1.57 5.00 1.65 1.50 — 0.43 2715243
IP10S 2 2702276 30.4 0 - 1.38 3.07 7.91 12.99 2.76 7.40 2.52 2.17 — 0.63 2715252
IP10S 3 2702264 33.1 0 - 1.56 3.94 9.96 17.09 2.95 8.74 3.07 2.36 — 0.79 2715253
IP10S 4.5 2702266 51.8 0 - 1.56 3.94 9.96 17.09 2.95 8.94 3.23 2.56 — 0.79 2715253
IP10S 6 2702268 60.6 0 - 2.00 4.96 11.89 20.35 3.15 11.50 3.31 3.74 1.57 0.79 2715254
IP10S 9 2702270 60.6 0 - 2.00 4.96 12.80 21.42 3.15 12.20 3.70 4.09 1.73 0.98 2715255
IP10H - For Very Hard Materials, With Fixed Hoisting Eye
IP10H 0.5 2702174 3.97 0 - 0.63 1.73 5.12 8.15 1.57 4.53 1.65 1.10 — 0.43 2715207
IP10H 0.75 2702162 4.85 0 - 0.75 1.77 5.47 8.62 1.57 5.12 1.10 1.50 — 0.43 2729552
IP10H 1 2702176 16.8 0 - 1.38 3.07 7.91 12.99 2.76 7.40 2.52 2.17 — 0.63 2715216
IP10H 2 2702164 30.4 0 - 1.56 3.94 9.96 17.09 2.95 8.74 3.07 2.36 — 0.79 2715225
IP10H 3 2702166 33.1 0 - 1.56 3.94 9.96 17.09 2.95 8.94 3.23 2.56 — 0.79 2715225
IP10H 4.5 2702168 51.8 0 - 2.00 4.96 11.89 20.35 3.15 11.50 3.31 3.74 1.57 0.79 2715227
IP10H 6 2702170 60.6 0 - 2.00 4.96 12.80 21.42 3.15 12.20 3.62 4.13 1.73 0.98 2715229

Models: IP10, IP10J, IP10S and IP10H.

IP10: Standard vertical lifting clamp.

IP10J: Larger jaw opening configuration.

IP10S: Designed for stainless steel material and equipped with a fixed hoisting eye.

IP10H: Designed for very hard materials and equipped with a fixed hoisting eye.

Application: For vertical lifting, turning and transfer.

* Design Factor: Based on EN 13155 and ASME B30.20.
