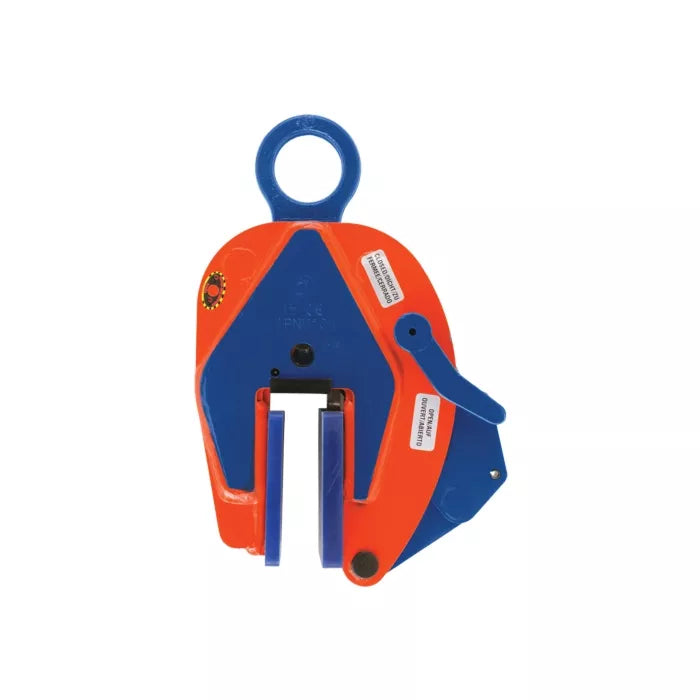

Crosby IPNM10 Non-Marring Vertical Lifting Clamps - 2 Ton

Product Description

Product Description:
Crosby IP Model IPNM10 lifting clamps are designed for the vertical lifting, turning, and transferring of steel plates and fabricated materials without damaging the surface. These clamps are specifically engineered for applications where surface protection is critical, such as lifting aluminum, stainless steel, painted materials, composites, glass, or plastics.
The IPNM10 features non-marring gripping pads that prevent scratching or marking, while still providing secure holding force. It allows full 180° rotation, enabling safe transfer from horizontal to vertical positions and back again.

Material:
Body: Welded alloy steel
Components: Forged alloy steel (where required)

Specifications:
Designed for vertical lifting, turning, and transferring plates and fabrications
Non-marring pads prevent damage or scratching of material surfaces
Suitable for materials such as:
Aluminum
Stainless steel
Painted surfaces
Glass, plastics, composites
Available capacities typically:
0.5 ton, 1 ton, and 2 ton
Jaw opening ranges up to approx. 0"–1.5" (varies by model)
Full 180° turning range for material handling
Individually proof tested to 2× Working Load Limit with certification
Clamp body marked with brand, WLL, and jaw opening
Each unit is individually serialized with proof test date stamped on body
Features lock open / lock closed latch mechanism
All sizes are RFID equipped for traceability
Includes user manual and test certificate
Material must be clean and dry for safe operation

Uses:
Lifting delicate or finished materials
Handling painted or coated plates
Fabrication and manufacturing operations
Aerospace, marine, and industrial applications
Material transfer where surface protection is required

Key Features:
Non-marring design – Prevents scratches and surface damage
Full rotation – 180° turning for flexible handling
Secure grip – Reliable clamping without damaging material
High strength construction – Welded and forged alloy steel
Proof tested – Certified to 2× Working Load Limit
Traceability – Serialized and RFID equipped
Precision handling – Ideal for sensitive materials
