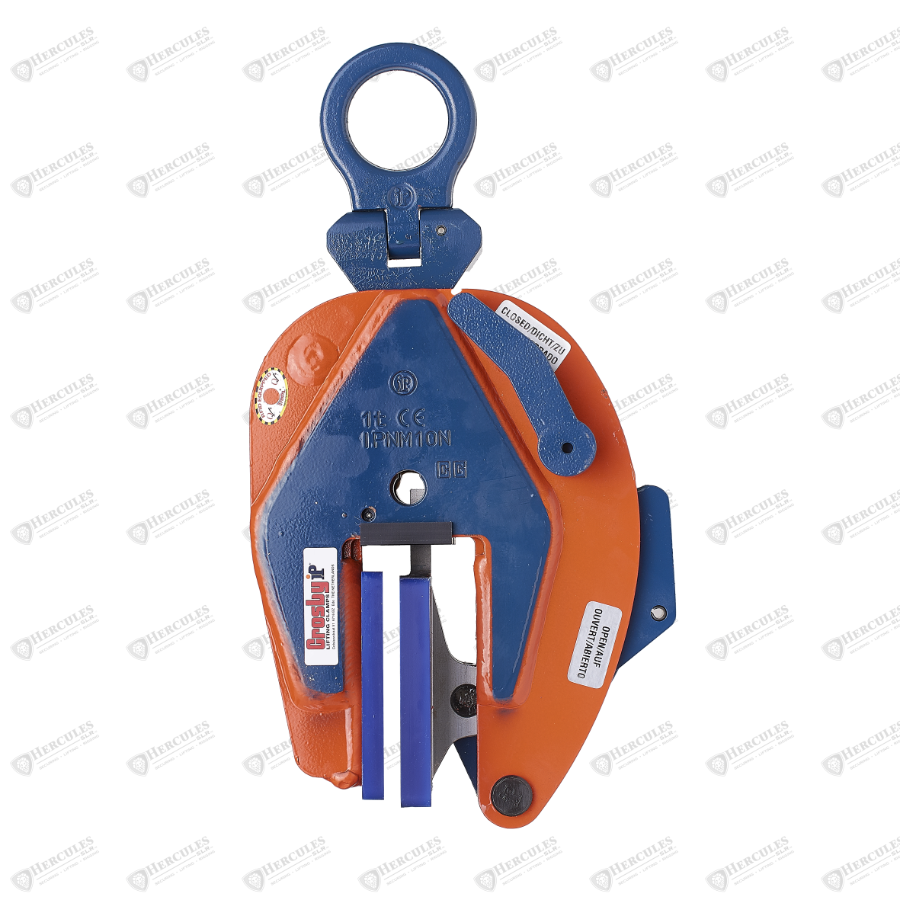

Crosby IPNM10N Non-Marring Vertical Lifting Clamps - 1 Ton

Product Description

Product Description:
Crosby IP Model IPNM10N lifting clamps are designed for the vertical lifting, turning, and transferring of delicate materials without damaging the surface, specifically in applications requiring a narrow jaw opening range.
This model is a specialized variant of the IPNM10 series, engineered for handling thinner materials while still providing the same non-marring protection. It uses protective gripping pads to prevent scratching, denting, or marking, making it ideal for finished or sensitive materials such as stainless steel, aluminum, coated plates, and composites.
The clamp allows for controlled 180° rotation, enabling safe transition between horizontal and vertical positions during handling operations.

Material:
Body: Welded alloy steel
Components: Forged alloy steel
Gripping surface: Non-marring protective pads

Specifications:
Designed for vertical lifting, turning, and transferring materials
Non-marring jaw pads prevent surface damage
Narrow jaw opening range for thinner materials (typically smaller than standard IPNM10 models)
Suitable for materials such as:
Aluminum
Stainless steel
Painted or coated surfaces
Plastics, composites, glass
Available capacities typically:
0.5 ton and 1 ton (varies by configuration)
180° turning capability for flexible material handling
Equipped with lock open / lock closed latch mechanism
Individually proof tested to 2× Working Load Limit with certification
Clamp body marked with brand, WLL, and jaw opening
Each unit is individually serialized with proof test date stamped on body
Includes user manual and test certificate
Often RFID equipped for traceability
Operating temperature range: -40°C to +100°C

Uses:
Lifting thin or delicate plates
Handling finished or coated materials
Fabrication and precision manufacturing
Aerospace, marine, and industrial applications
Any application requiring surface protection + narrow grip range

Key Features:
Non-marring protection – Prevents scratches and surface damage
Narrow jaw design – Ideal for thinner materials
Full rotation – 180° turning for flexible handling
Secure grip – Reliable holding without marking
High strength construction – Welded and forged alloy steel
Proof tested – Certified to 2× Working Load Limit
Traceability – Serialized and often RFID equipped
