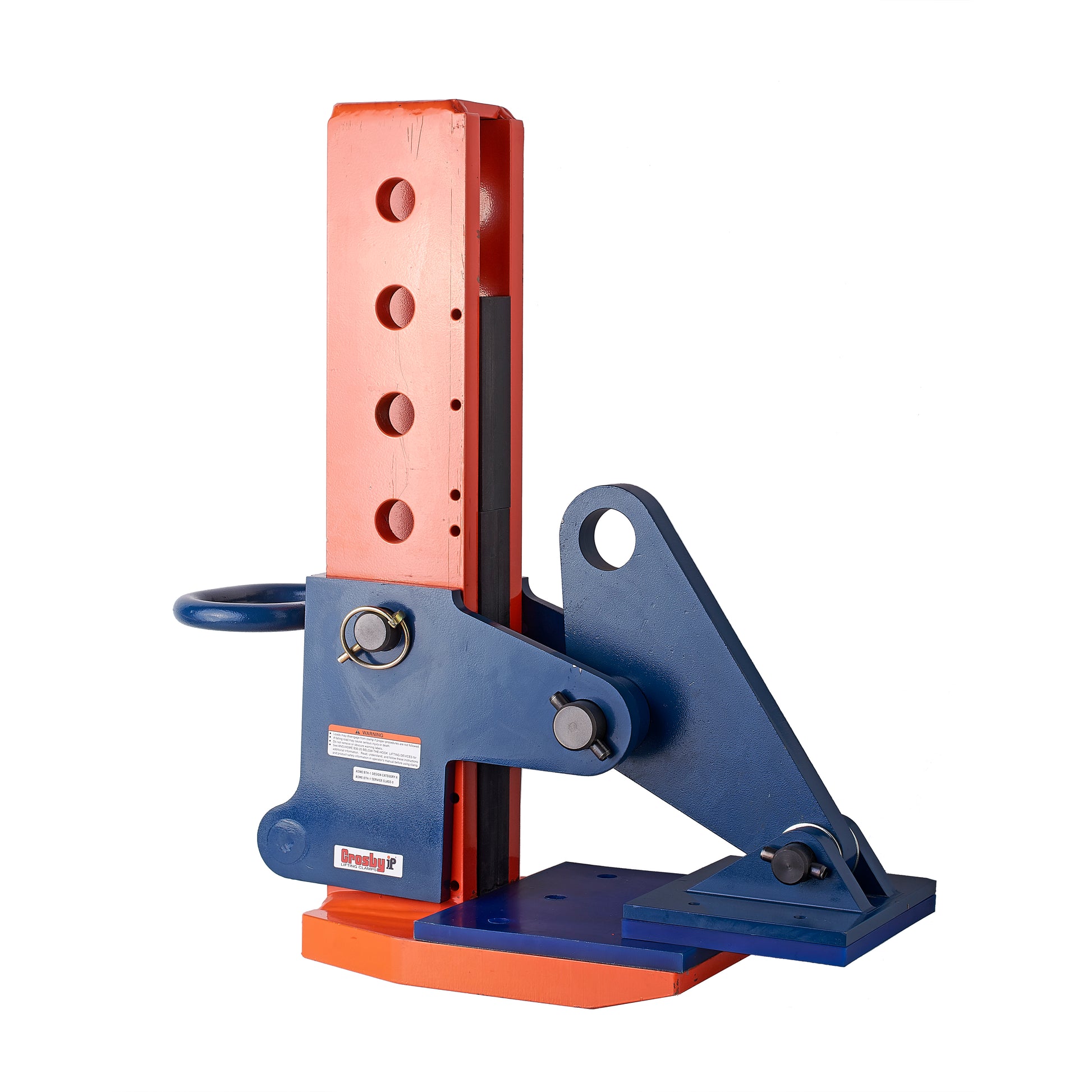

Crosby IP Model IPPE10NM - 3 Ton

Product Description

Product Description:
Crosby IP Model IPPE10 and IPPE10NM horizontal lifting clamps are designed for lifting and transporting bundles of non-bendable sheet metal in a horizontal position. These clamps are ideal for handling stacked plates or bundles where rigidity is maintained during lifting.
The IPPE10 model features magnets in the footplate, allowing easier placement and enabling one operator to position multiple clamps efficiently. The IPPE10NM variant is designed with a non-marring contact surface, making it suitable for materials where surface protection is required.

Material:
Body: Welded alloy steel
Components: Forged alloy steel (where required)

Specifications:
Designed for lifting and transporting non-bendable sheet metal bundles
Must be used in pairs or multiples for safe operation
Available in capacities from approximately 3 to 12 metric tons
Jaw openings available up to ~420 mm depending on model
IPPE10 includes magnets in footplate for easier positioning
IPPE10NM includes non-marring contact surfaces for sensitive materials
Individually proof tested to 2× Working Load Limit with certification
Clamp body marked with brand, WLL, and jaw opening
Each clamp is individually serialized with proof test data stamped on the body
Includes user manual and test certificate
Temperature range:
IPPE10: -40°C to +100°C
IPPE10NM: -20°C to +70°C

Uses:
Lifting bundles of steel plates
Handling non-bendable sheet metal stacks
Fabrication and manufacturing environments
Industrial material handling applications

Key Features:
Bundle handling design – Ideal for lifting stacked, non-flexible materials
Magnet-assisted positioning – Easier placement of clamps (IPPE10)
Surface protection – Non-marring option available (IPPE10NM)
High strength construction – Welded and forged alloy steel
Proof tested – Certified to 2× Working Load Limit
Traceability – Serialized with stamped identification
Reliable performance – Designed for demanding industrial use
