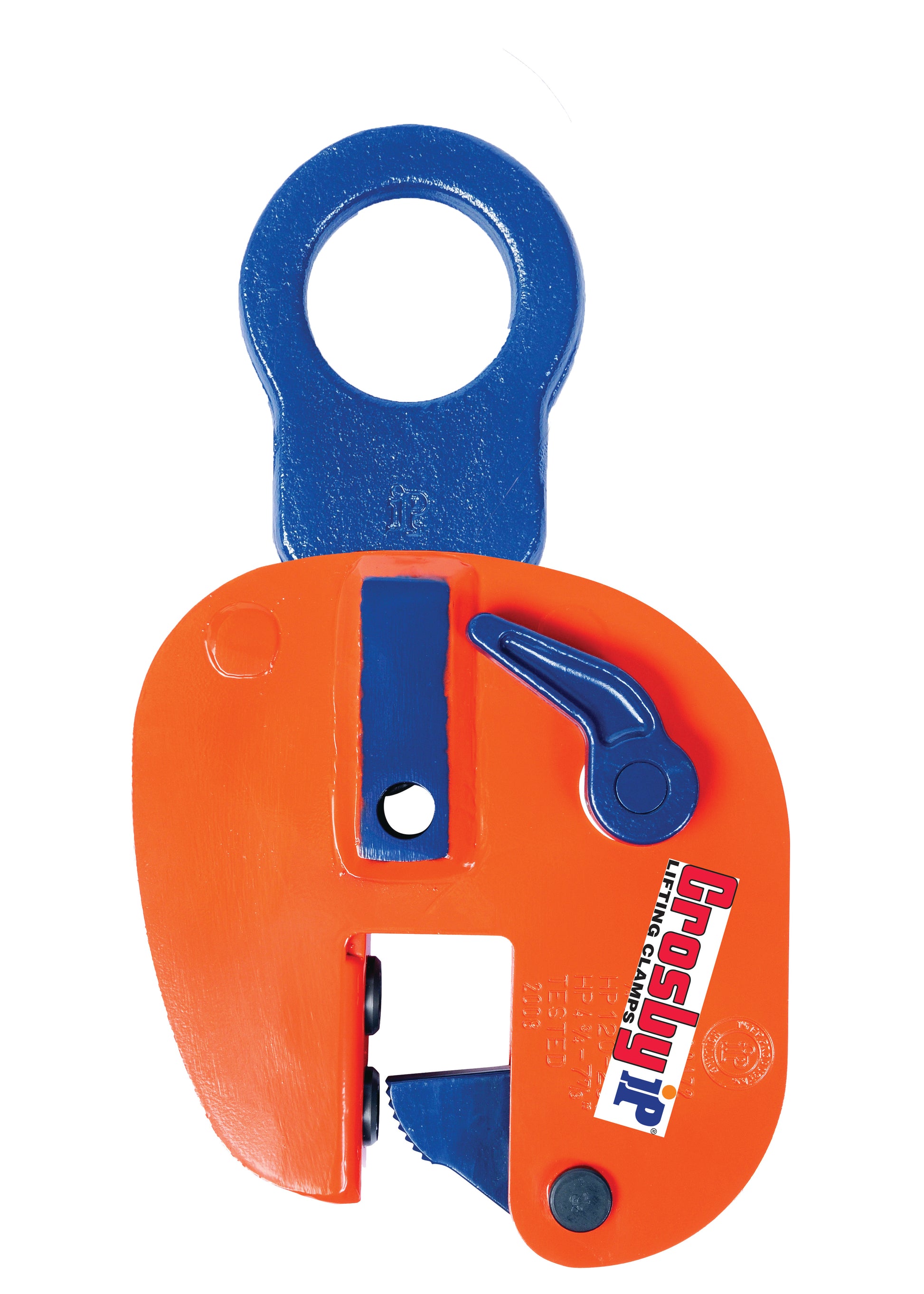

IPBUZ Lifting Clamps - 3.75 Ton

Product Description

Product Description:
Crosby IP Model IPBUUZ and IPBUZ lifting clamps are designed for lifting, transferring, and positioning bulb profiles in shipbuilding and structural applications. These clamps are specifically engineered to handle bulb flat sections and are used to place materials perpendicularly onto ship hulls or structural assemblies.
Available in two configurations, the IPBUUZ features a universal hoisting eye for flexible lifting angles, while the IPBUZ includes a fixed hoisting eye for controlled and stable lifting. Both models are built for reliability in demanding environments and ensure secure gripping during operation.

Material:
Body: Welded alloy steel
Components: Forged alloy steel (where required)

Specifications:
Designed for lifting, transferring, and placing bulb profiles
Available in capacities from 0.75 to 3.75 metric tons
Jaw openings available for HP 120 mm to HP 430 mm profiles
Equipped with a locking device for both open and closed positions
Individually proof tested to 2× Working Load Limit with certification
Each clamp is individually serialized with test data stamped on the body
Minimum Working Load Limit is 10% of maximum WLL
Operating temperature range: -40°C to +100°C

Uses:
Shipbuilding and offshore fabrication
Lifting and positioning bulb flat sections
Structural steel handling in marine environments
Industrial material handling applications

Key Features:
Dual model options – Universal (IPBUUZ) or fixed (IPBUZ) hoisting eye
Secure locking system – Ensures clamp remains fixed in open and closed positions
High strength construction – Welded and forged alloy steel components
Proof tested – Certified to 2× Working Load Limit
Application-specific design – Optimized for bulb profile handling
Reliable performance – Built for demanding shipbuilding environments
