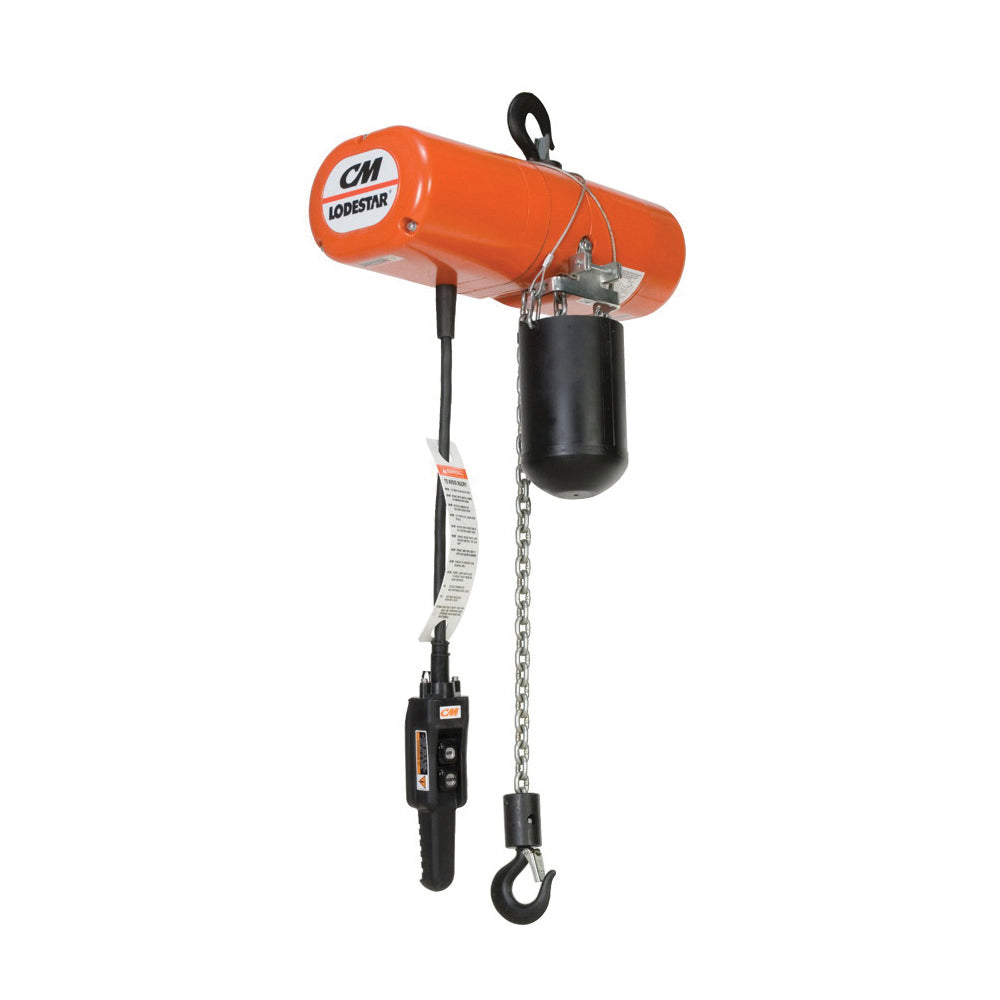

Lodestar Model E Electric Chain Hoist - 0.5 Ton Double Reeving 10 ft Lift 8 FPM 1/4 hp 230/460 VAC

Product Description

Product Description:
The CM Lodestar Model E Electric Chain Hoist is designed for dependable lifting, lowering and load positioning in industrial material-handling applications. These double-reeved configurations provide a 0.5 Ton lifting capacity, an 8 FPM lifting speed and available lifting heights of 10, 15 or 20 ft.

The double-reeved load-chain arrangement supports controlled vertical movement and stable handling of the rated load. One-speed control provides consistent operation, while the heavy-duty DC brake delivers controlled stopping and dependable load holding.

Selected configurations use a 1/4 hp hoist motor and are available for 115 or 230/460 VAC electrical service. Depending on the configuration, minimum distance between hooks is approximately 19-5/8 or 21.6 in, helping preserve available lifting space beneath the supporting structure.

Material:
Metal hoist frame and housing
Alloy steel load chain
Hardened steel drive components
Forged steel hook assemblies
Industrial electrical and control components

Compatible With:
Properly rated overhead suspension points
Approved hook and lug suspension systems
Compatible plain, geared and motorized trolleys
115 VAC electrical systems for applicable models
230/460 VAC electrical systems for applicable models
Manufacturer-approved load chain and replacement components

Uses:
Manufacturing and production lifting
Assembly and fabrication operations
Equipment installation and maintenance
Warehouse material handling
Workstation load positioning
Repetitive lifting and lowering
Controlled positioning of machinery and components

Key Features:
0.5 Ton lifting capacity
Double-reeved load-chain configuration
10, 15 and 20 ft Lift options
8 FPM lifting speed
One-speed control
Heavy-duty DC brake
Compact-headroom construction
Available 115 and 230/460 VAC configurations
