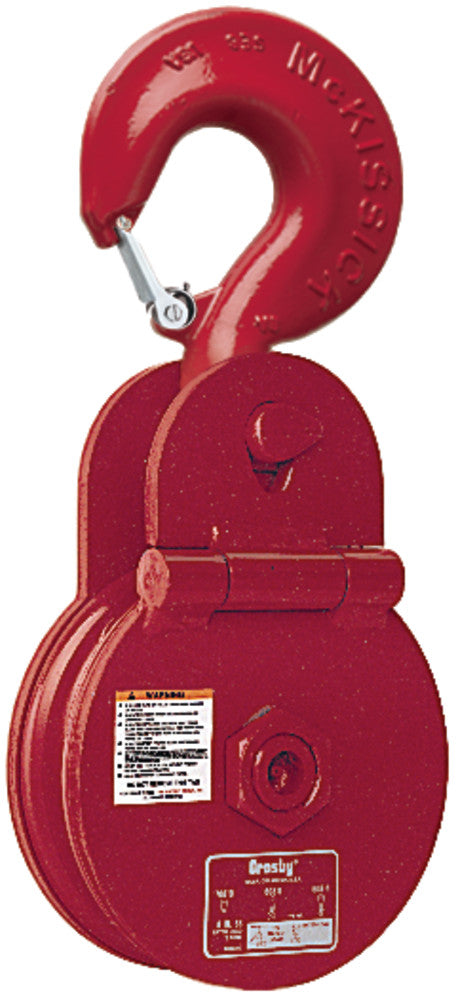

Crosby C-720 Snatch Block with Hook Fitting - Wire Rope Diameter 3/4 - 7/8 in

Product Description

Product Description:
The Crosby C-720 Heavy Duty Utility Snatch Blocks are engineered for utility line work, wire rope handling, and heavy-duty pulling applications requiring dependable sheave performance, rugged forged construction, and secure hook attachment. Designed with an opening side plate for quick wire rope installation without reeving, these utility snatch blocks are ideal for construction, utility, oilfield, marine, and industrial rigging environments where fast setup and reliable rope handling are critical.

Material:
Forged steel sheave construction
Forged steel swivel hook
Heavy-duty steel side plates
Bronze bushing or roller bearing configurations

Specifications:
Heavy duty utility snatch block design
Opening side plate allows easy wire rope insertion
Forged steel swivel hook with latch installed
Forged steel sheaves for rugged industrial service
Center pin equipped with pressure lube fitting
Available with bronze bushings or roller bearings
Designed for wire rope sizes from 3/4 in to 7/8 in
Working Load Limit of 7 tons
Ultimate load is 3.5 times the Working Load Limit
Dual-rated wireline sheave design
Easy-open retaining bolt system
Designed for utility, industrial, and heavy rigging applications
Meets or exceeds ASME B30.26 requirements including fatigue life and material traceability

Uses:
Utility line pulling operations
Wire rope directional pulling
Construction rigging applications
Oilfield service work
Industrial material handling
Marine rigging operations
Heavy-duty pulling systems
Temporary wire rope redirection applications

Key Features:
Opening side plate design – Allows quick wire rope insertion without reeving
Forged steel construction – Built for demanding utility and industrial environments
Swivel hook with latch – Provides secure attachment and improved positioning
Pressure lubrication fitting – Supports smooth operation and maintenance servicing
Dual-rated sheave – Accommodates multiple wire rope sizes
Heavy-duty utility performance – Designed for rugged field applications
Bronze bushing or roller bearing options – Supports smooth sheave rotation under load
ASME compliant design – Meets critical lifting and rigging performance requirements
