• Crosby S-2 Jaw & Jaw - 35-S-2 - Swivels - Hercules Lifting
Please note: images may not be exact representations. Always refer to manufacturer's specifications.
1 1
Crosby

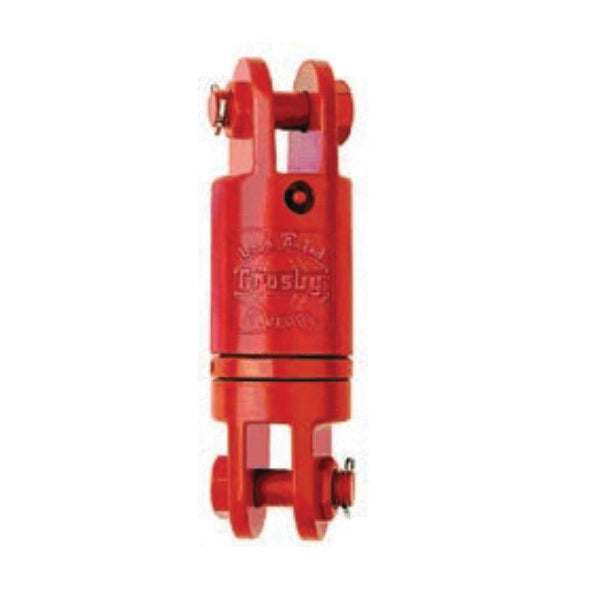

S-2 Jaw & Jaw

S-2 Jaw & Jaw

Part #297627

$4,554.58 CAD
$4,554.58 CAD
Sale Low stock
Swivel No.
View full details

Product Description

The Crosby S-2 Jaw & Jaw Swivel is designed for lifting and rigging applications requiring smooth rotation under load while minimizing wire rope twist and torque buildup. Featuring tapered roller thrust bearing technology, the S-2 swivel improves operational efficiency, reliability, and wire rope service life in demanding industrial environments.
Engineered for frequent rotation under load, the S-2 provides dependable performance for crane, marine, offshore, and heavy lifting applications where controlled swivel movement and secure load alignment are essential.

Material:
Forged alloy steel components
Tapered roller thrust bearings
Corrosion-resistant finish

Specifications:
Jaw & jaw swivel design
Equipped with tapered roller thrust bearing
Designed for frequent rotation under load
Available in capacities from approximately 3 tons to 45 tons
Compatible with multiple wire rope sizes depending on model
All jaws complete with bolts, nuts, and cotter pins
Individually proof tested to 2 times the Working Load Limit with certification
Pressure lubrication fitting provided
5:1 design factor
Not intended for demolition (wrecking) ball applications
Meets or exceeds ASME B30.26 requirements

Uses:
Crane and hoisting systems
Wire rope lifting assemblies
Marine and offshore rigging
Industrial and construction lifting
Applications requiring controlled swivel rotation

Key Features:
Tapered roller bearings – Designed for smooth rotation under load
Frequent rotation capability – Ideal for repetitive lifting applications
Jaw & jaw configuration – Provides versatile rigging connections
Heavy-duty construction – Engineered for demanding lifting environments
Proof tested – Individually tested for reliability and safety
Pressure lubrication fitting – Supports long-term bearing performance
Wire rope protection – Helps reduce twisting and extend rope life

Swivel No. Stock No. Working Load Limit (t) Wire Rope Size (in) Weight Each (lb) Overall Length - B (in) Swivel Body Width - G (in) Jaw Pin Diameter - H (in) Jaw Inside Width - J (in) Jaw Outside Width - K (in) Jaw Height - N (in) Jaw Opening - O (in)
3-S-2 297020 3 1/2 9.63 9.28 2.75 0.75 0.88 1.62 1.31 1.00
5-S-2 297226 5 5/8 13.69 10.31 3.00 0.88 1.00 2.25 1.62 1.12
8-S-2 297422 8.5 3/4 26.16 12.62 4.00 1.00 1.56 2.81 2.12 1.38
10-S-2 297627 10 7/8 45.75 16.75 4.50 1.50 1.75 3.38 3.50 1.75
15-S-2 297823 15 1 62.75 17.12 5.00 1.50 1.75 3.38 3.50 1.75
25-S-2 298127 25 — 140.00 20.75 6.00 2.00 2.00 4.62 3.69 2.38
35-S-2 298225 35 — 155.00 20.75 6.50 2.00 2.00 4.62 3.69 2.38
45-S-2 298323 45 — 235.00 25.25 7.00 2.25 2.50 5.00 4.00 3.00

Series: S-2 Jaw & Jaw Swivels

Bearing: Equipped with a tapered roller thrust bearing and suitable for frequent rotation under load.

Design Factor: 5:1.

Proof Test: Individually proof tested to 2 times the Working Load Limit.

Jaw Connection: Jaw ends provide clevis-style connections at both ends of the swivel.

Wire Rope: Crosby specifies 1/2 in, 5/8 in, 3/4 in, 7/8 in and 1 in wire rope sizes for the 3 through 15 ton models respectively. The larger 25, 35 and 45 ton models do not list a wire rope size.
