Crosby

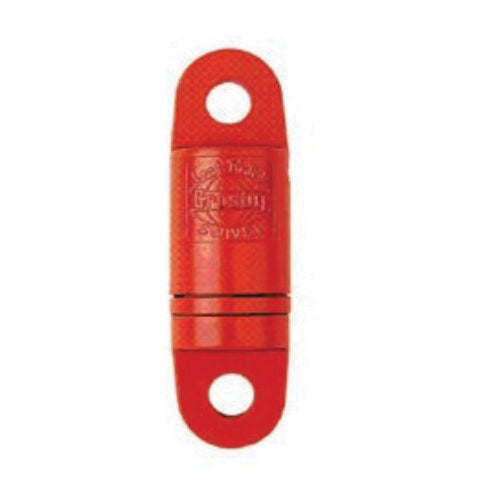

S-5 Eye & Eye

S-5 Eye & Eye

Part #297057

$1,531.17 CAD
$1,531.17 CAD
Sale Low stock
Swivel No.
View full details

Product Description

The Crosby S-5 Eye & Eye Swivel is designed for lifting and rigging applications requiring smooth rotation under load while minimizing wire rope twist and torque buildup. Featuring tapered roller thrust bearing technology, the S-5 swivel improves operational efficiency, reliability, and wire rope service life in demanding industrial environments.
Engineered for frequent rotation under load, the S-5 provides dependable performance for crane, marine, offshore, and heavy lifting applications where controlled swivel movement and secure load alignment are essential.

Material:
Forged alloy steel components
Tapered roller thrust bearings
Corrosion-resistant finish

Specifications:
Eye & eye swivel design
Equipped with tapered roller thrust bearing
Designed for frequent rotation under load
Available in capacities from approximately 3 tons to 45 tons
Compatible with multiple wire rope sizes depending on model
Individually proof tested to 2 times the Working Load Limit with certification
Pressure lubrication fitting provided
5:1 design factor
Designed for lifting and rigging applications requiring controlled rotation
Not intended for demolition (wrecking) ball applications
Meets or exceeds ASME B30.26 requirements

Uses:
Crane and hoisting systems
Wire rope lifting assemblies
Marine and offshore rigging
Industrial and construction lifting
Applications requiring controlled swivel rotation

Key Features:
Tapered roller bearings – Designed for smooth rotation under load
Frequent rotation capability – Ideal for repetitive lifting applications
Eye & eye configuration – Allows versatile rigging connections
Heavy-duty construction – Engineered for demanding lifting environments
Proof tested – Individually tested for reliability and safety
Pressure lubrication fitting – Supports long-term bearing performance
Wire rope protection – Helps reduce twisting and extend rope life

Swivel No. Stock No. Working Load Limit (t)* Wire Rope Size (in) Weight Each (lb) Overall Length (in) Eye Width (in) Eye Thickness (in) Eye Opening Diameter (in) Eye Shoulder Height (in) Eye End Height (in)
3-S-5 297057 3 1/2 8.50 9.41 2.75 0.75 1.03 1.12 1.25
5-S-5 297253 5 5/8 11.30 9.81 3.00 1.00 1.28 1.25 1.25
8-S-5 297459 8.5 3/4 29.25 11.88 4.00 1.25 1.41 1.62 1.50
10-S-5 297654 10 7/8 42.00 15.50 4.50 1.69 1.69 2.75 1.88
15-S-5 297850 15 1 49.00 16.38 5.00 1.94 2.03 2.75 2.12
25-S-5 298154 25 - 130.00 22.25 6.00 2.25 2.31 3.88 2.38
35-S-5 298252 35 - 145.00 22.25 6.50 2.25 2.31 3.88 2.38
45-S-5 298350 45 - 215.00 26.50 7.00 2.50 2.53 4.00 3.00

Series: S-5 Eye & Eye Swivels

Design: Equipped with a tapered roller thrust bearing and suitable for frequent rotation under load.

Design Factor: 5:1.

Proof Test: Individually proof tested to 2 times the Working Load Limit with labeled documentation.

Lubrication: Pressure lube fitting provided.

Wire Rope: Crosby swivels should only be used with the recommended wire rope. Contact the wire rope manufacturer for the proper wire rope to use with the swivel.

Important: Not to be used on demolition or wrecking balls.

Custom Applications: For swivels larger than 45 metric tons, or swivels intended for demanding applications such as subsea service, contact Kito Crosby Engineered Solutions.
