• Crosby S-6 Eye & Hook - 45-S-6 - Swivels - Hercules Lifting
Please note: images may not be exact representations. Always refer to manufacturer's specifications.
1 1
Crosby

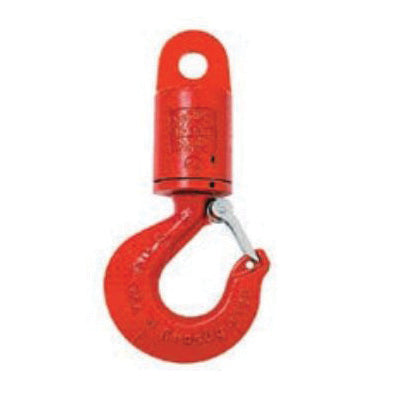

S-6 Eye & Hook

S-6 Eye & Hook

Part #297066

$1,477.28 CAD
$1,477.28 CAD
Sale Low stock
Swivel No.
View full details

Product Description

The Crosby S-6 Eye & Hook Swivel is designed for lifting and rigging applications requiring smooth rotation under load while minimizing wire rope twist and torque buildup. Featuring tapered roller thrust bearing technology, the S-6 swivel improves operational efficiency, reliability, and wire rope service life in demanding industrial environments.
Engineered for frequent rotation under load, the S-6 provides dependable performance for crane, marine, offshore, and heavy lifting applications where controlled swivel movement and secure load alignment are essential.

Material:
Forged alloy steel components
Tapered roller thrust bearings
Corrosion-resistant finish

Specifications:
Eye & hook swivel design
Equipped with tapered roller thrust bearing
Designed for frequent rotation under load
Available in capacities from approximately 3 tons to 45 tons
Compatible with multiple wire rope sizes depending on model
All hooks furnished with latches assembled
Individually proof tested to 2 times the Working Load Limit with certification
Pressure lubrication fitting provided
5:1 design factor
Not intended for demolition (wrecking) ball applications
Meets or exceeds ASME B30.26 requirements

Uses:
Crane and hoisting systems
Wire rope lifting assemblies
Marine and offshore rigging
Industrial and construction lifting
Applications requiring controlled swivel rotation

Key Features:
Tapered roller bearings – Designed for smooth rotation under load
Frequent rotation capability – Ideal for repetitive lifting applications
Eye & hook configuration – Allows versatile rigging connections
Heavy-duty construction – Engineered for demanding lifting environments
Proof tested – Individually tested for reliability and safety
Pressure lubrication fitting – Supports long-term bearing performance
Wire rope protection – Helps reduce twisting and extend rope life

Swivel No. Stock No. Working Load Limit (t)* Wire Rope Size (in) Weight Each (lb) Overall Length (in) Overall Width (in) Eye Width (in) Hook Opening Depth (in) Throat Opening (in) Hook Section Height (in) Eye Thickness (in) Eye Opening Diameter (in) Eye Shoulder Height (in) Eye End Height (in) Hook Section Width (in) Replacement Bolt Kit Stock No. Replacement Latch Kit Stock No.
3-S-6 297066 3 1/2 9.32 11.50 4.84 2.75 1.53 1.41 1.44 0.75 1.03 1.12 1.25 1.12 1411118 1096515
5-S-6 297262 5 5/8 14.24 13.09 6.28 3.00 1.94 1.69 1.81 1.00 1.28 1.25 1.25 1.44 1411127 1096562
8-S-6 297468 8.5 3/4 32.00 16.07 7.54 4.00 2.46 2.22 2.25 1.25 1.41 1.62 1.50 1.62 1411136 1096609
10-S-6 297663 10 7/8 45.50 19.12 8.34 4.50 2.59 2.41 2.59 1.69 1.69 2.75 1.88 1.94 1411145 1096657
15-S-6 297869 15 1 63.00 21.24 10.34 5.00 2.81 3.19 3.00 1.94 2.03 2.75 2.12 2.38 1411145 1096704
25-S-6 298163 25 - 135.00 27.53 13.62 6.00 3.44 3.62 3.66 2.25 2.31 3.88 2.38 3.00 134893 1090161
35-S-6 298261 35 - 215.00 30.69 14.06 6.50 3.88 3.75 4.56 2.25 2.31 3.88 2.38 3.19 134893 1090189
45-S-6 298369 45 - 270.00 35.69 15.44 7.00 4.75 4.25 5.06 2.50 2.53 4.00 3.00 3.25 134900 1090189

Series: S-6 Eye & Hook Swivels

Design: Equipped with a tapered roller thrust bearing and suitable for frequent rotation under load.

Hook: Hooks are furnished with latches assembled.

Design Factor: 5:1.

* Proof Test: Each swivel is individually proof tested to 2 times the Working Load Limit with labeled documentation.

Lubrication: Pressure lube fitting provided.

Wire Rope: Crosby swivels should only be used with the recommended wire rope. Contact the wire rope manufacturer to determine the proper wire rope for the swivel.

Important: Not to be used on demolition or wrecking balls.

Service Parts: Replacement bolt kit and replacement latch kit stock numbers shown are the current Kito Crosby service-part listings for the corresponding Working Load Limit.
