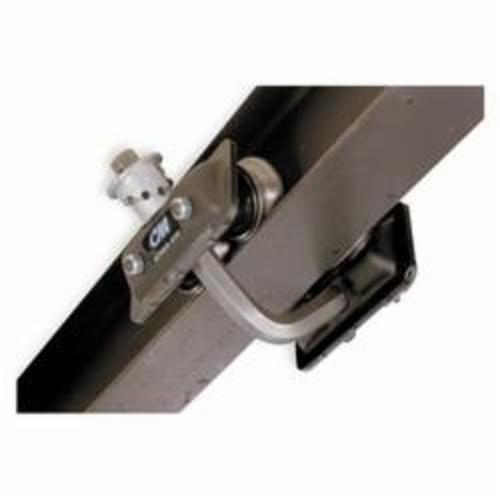

Series 635 Manual Plain Trolley - 500 to 1,000 lb, 5.04 to 7-1/2 in Beam Flange, Cast Iron Wheels

Product Description

Product Description:
CM Series 635 manual plain trolleys provide manually controlled horizontal travel for compatible suspended hoists operating along overhead runway beams. The listed configurations cover capacities from 500 to 2,000 lb and are designed for wider beam-flange ranges. Their push-type operation is suitable for applications where powered or hand-geared trolley travel is unnecessary.

Horizontal movement is produced by pushing or pulling the suspended hoist and load along the supporting beam. This straightforward arrangement requires no electric travel motor, pneumatic drive, powered controls, or trolley operating hand chain. Cast iron wheels provide a durable running surface for industrial maintenance, fabrication, assembly, equipment installation, and general material-handling operations.

The 2,000 lb configuration fits beam flange widths from 5.6 to 7.25 in. The 500 to 1,000 lb configuration fits beam flange widths from 5.04 to 7-1/2 in, has a 24 in minimum-radius curve, and uses a 3-1/8 in wheel-tread diameter. Each trolley must be matched to the intended hoist capacity, suspension arrangement, beam dimensions, and required operating clearance.

Material:
Cast iron trolley wheels
Industrial metal trolley frame
Metal wheel and axle assemblies
Suspension and beam-adjustment hardware
Exact frame and hardware material grades not confirmed

Compatible With:
Properly rated hoists with a compatible trolley suspension connection
Overhead beams within the selected model’s flange-width range
Straight or curved runway beams meeting the applicable model requirements
Capacity-matched hoist suspension and trolley mounting components

Uses:
Providing manual horizontal travel for suspended hoists
Positioning loads along overhead runway beams
Industrial maintenance and equipment installation
Fabrication and assembly operations
Manufacturing and production applications
Warehouse and general material handling
Applications where powered trolley travel is unnecessary

Key Features:
Manual plain push-type operation
Series 635 trolley configuration
Available for loads from 500 to 2,000 lb
Wide beam-flange adjustment ranges
Cast iron trolley wheels
No electrical or pneumatic travel power required
No separate trolley operating hand chain
Suitable for compatible overhead runway systems
