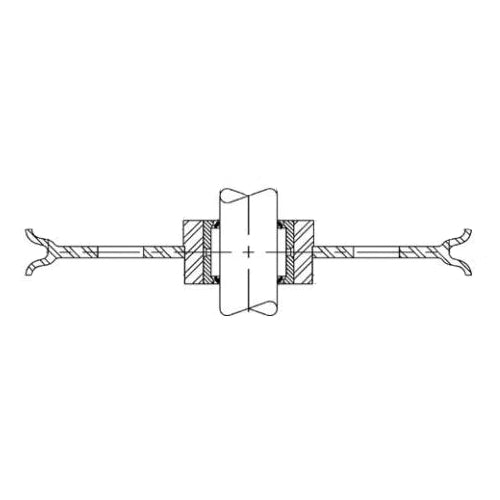

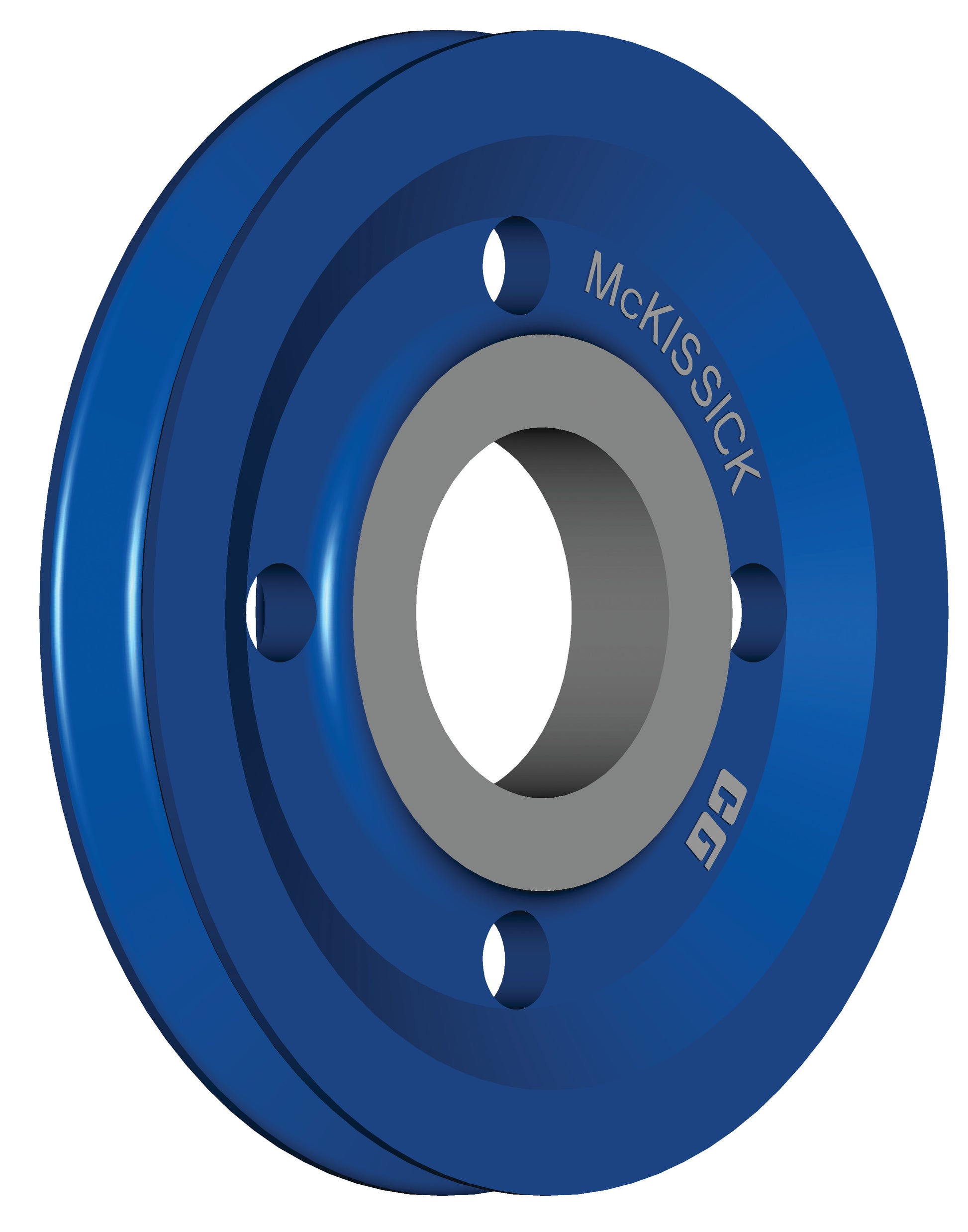

McKissick Ductile Iron Sheave - 5/8 in x 7-5/8 in - Roller Bearing

Product Description

The McKissick Ductile Iron Sheave with roller bearing is a premium heavy-duty wire rope sheave engineered for demanding crane, hoist, and rigging block applications where maximum rotational efficiency, high load capacity, and extended service life are required. Featuring a 7-5/8 in outside diameter and a roller bearing configuration, this sheave is designed to accept wire rope up to 5/8 in diameter, making it well-suited for medium to heavy lifting operations in construction, industrial, marine, and oilfield environments. Ductile iron construction provides a superior combination of strength, toughness, and impact resistance compared to standard cast iron, allowing the sheave to absorb shock loads without fracturing in dynamic lifting and rigging systems.

The roller bearing configuration provides the highest level of rotational efficiency and load-carrying capacity among available bearing types, significantly reducing friction during operation and enabling smooth, consistent sheave rotation under both light and heavy loads. Roller bearings are particularly well-suited for high-speed, high-cycle, or continuous-duty applications where minimizing friction and heat generation are critical to maintaining performance and extending bearing service life. The 7-5/8 in outside diameter provides a favorable rope-to-sheave diameter ratio that reduces bending stress on the wire rope during operation, contributing to extended rope service life and reduced maintenance intervals.

The machined rope groove is precisely profiled to match the wire rope diameter, ensuring even load distribution across the rope cross-section and minimizing groove and rope wear throughout the service life of the assembly. This sheave is designed for use as a replacement or component part within McKissick and compatible wire rope block assemblies. Proper shaft fit, lubrication, and alignment are essential to achieving rated performance and maximizing service life in demanding industrial lifting and rigging operations.

Material: Ductile Iron

Compatible With: Wire Rope up to 5/8 in Diameter Standard Bore Shaft and Pin Arrangements McKissick Wire Rope Block Assemblies Compatible Replacement Block Assemblies

Uses: Heavy-Duty Crane and Hoist Block Assemblies Wire Rope Guidance and Load Transfer Construction and Industrial Rigging Marine and Offshore Block Systems Oilfield and Heavy Industry Lifting Applications High-Speed and Continuous-Duty Rigging Applications Replacement Sheave for Block Assemblies

Key Features: 7-5/8 in Sheave Outside Diameter 5/8 in Maximum Wire Rope Capacity Roller Bearing for Maximum Rotational Efficiency and Load Capacity Ductile Iron Construction for Superior Strength and Impact Resistance Favorable Rope-to-Sheave Diameter Ratio Reduces Wire Rope Bending Stress Machined Rope Groove Profiled for Even Load Distribution Suitable for High-Speed, High-Cycle, and Continuous-Duty Applications McKissick Quality Construction
