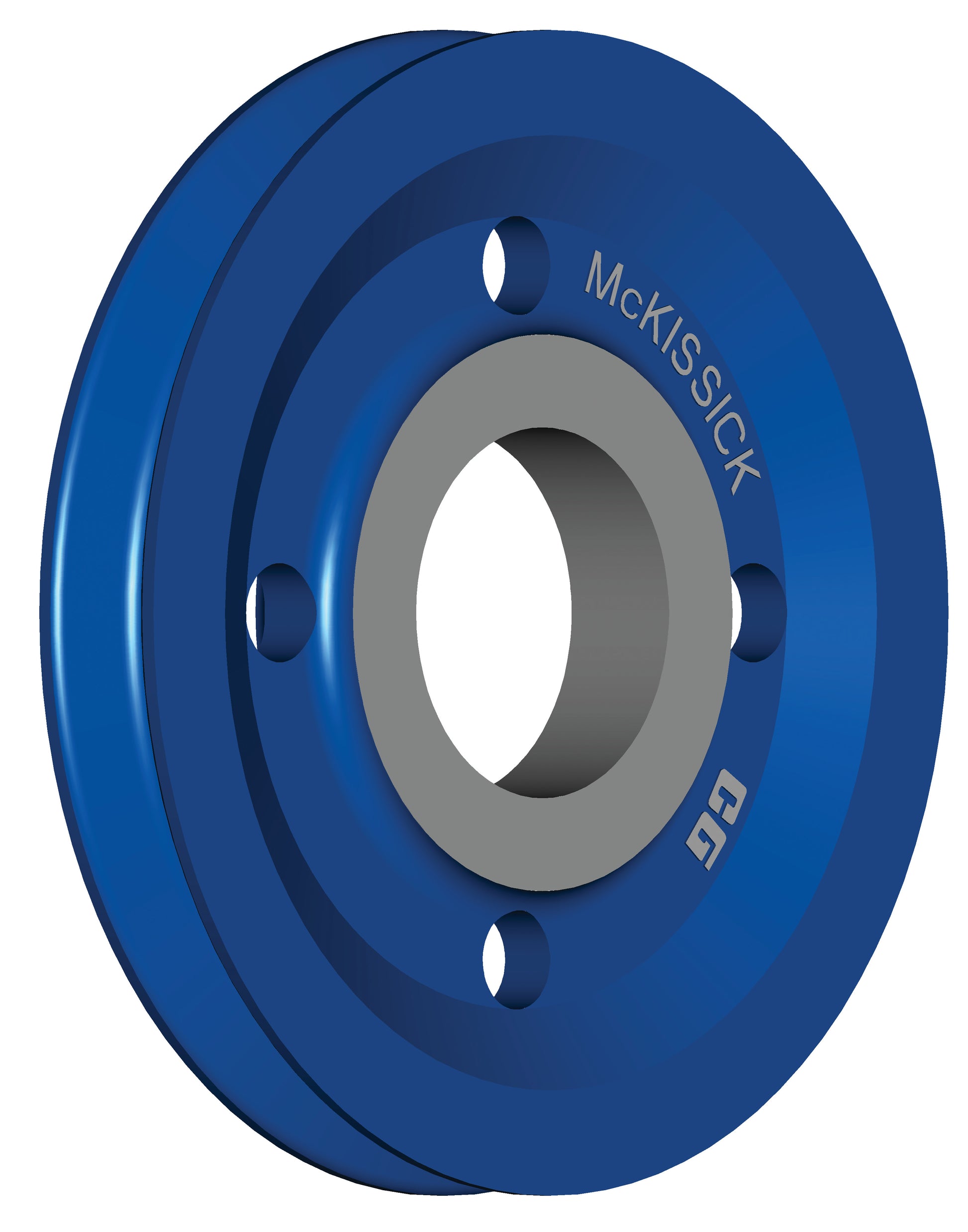

McKissick Sheave - 3/8 in x 8-1/2 in - Tapered Bearing

Product Description

The McKissick Ductile Iron Sheave with tapered bearing is a premium heavy-duty wire rope sheave engineered for demanding crane, hoist, and rigging block applications where high load capacity, superior rotational efficiency, and extended service life under combined radial and thrust loading are required. Featuring an 8-1/2 in outside diameter and a tapered bearing configuration, this sheave is designed to accept wire rope up to 3/8 in diameter, making it well-suited for light to medium capacity lifting operations in construction, industrial, marine, and oilfield environments. Ductile iron construction provides a superior combination of strength, toughness, and impact resistance compared to standard cast iron, allowing the sheave to absorb shock loads without fracturing in dynamic lifting and rigging systems.

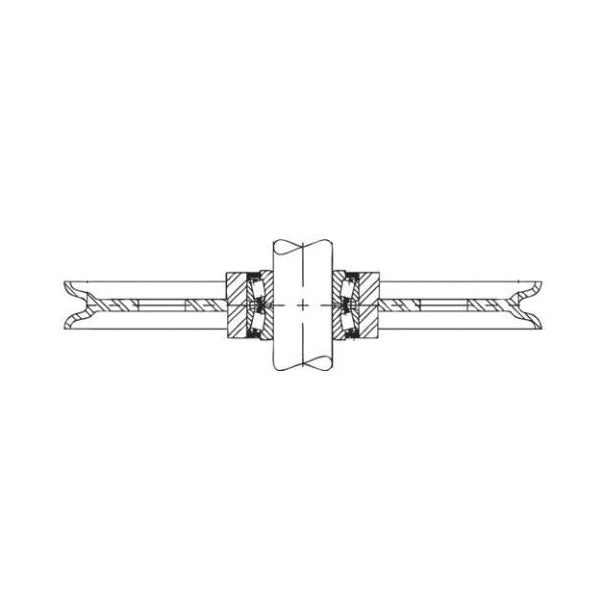

The tapered bearing configuration is engineered to handle combined radial and axial thrust loads simultaneously, providing superior load distribution and rotational stability compared to standard plain bore or cylindrical roller bearing arrangements. This bearing type is particularly well-suited for applications where sheave alignment, side loading, or thrust forces are present during operation, as the tapered geometry allows the bearing to manage complex load conditions while maintaining smooth, efficient rope travel. The 8-1/2 in outside diameter provides an excellent rope-to-sheave diameter ratio for a 3/8 in wire rope, substantially reducing bending stress on the rope during operation and contributing to extended rope service life and reduced maintenance intervals.

The machined rope groove is precisely profiled to match the wire rope diameter, ensuring even load distribution across the rope cross-section and minimizing groove and rope wear throughout the service life of the assembly. This sheave is designed for use as a replacement or component part within McKissick and compatible wire rope block assemblies. Proper shaft fit, lubrication, and alignment are essential to achieving rated performance and maximizing service life in demanding industrial lifting and rigging operations.

Material: Ductile Iron

Compatible With: Wire Rope up to 3/8 in Diameter Standard Bore Shaft and Pin Arrangements McKissick Wire Rope Block Assemblies Compatible Replacement Block Assemblies

Uses: Heavy-Duty Crane and Hoist Block Assemblies Wire Rope Guidance and Load Transfer Construction and Industrial Rigging Marine and Offshore Block Systems Oilfield and Heavy Industry Lifting Applications Applications with Combined Radial and Thrust Loading Replacement Sheave for Block Assemblies

Key Features: 8-1/2 in Sheave Outside Diameter 3/8 in Maximum Wire Rope Capacity Tapered Bearing for Superior Combined Radial and Thrust Load Capacity Ductile Iron Construction for Superior Strength and Impact Resistance Large Sheave Diameter Substantially Reduces Wire Rope Bending Stress and Fatigue Machined Rope Groove Profiled for Even Load Distribution Suitable for Applications with Complex or Combined Loading Conditions McKissick Quality Construction
