Cyclone Series 646 Hand Chain Hoist - 4 Ton Double Reeved Low Headroom Plain Trolley 10 ft Lift

Product Description

Product Description:
The CM Cyclone Series 646 Hand Chain Hoist is a manually operated lifting solution designed for dependable industrial load handling without electrical or pneumatic power. All three products feature a double-reeved load-chain arrangement and a 10 ft Lift. Product 4627 has a 3 Ton capacity, while products 4628 and 4838 have a 4 Ton capacity.

An enclosed, contoured Weston-type automatic brake provides positive load holding and controlled lowering. High-efficiency spur gearing reduces the hand-chain effort required to lift the load, while fully machined, forged liftwheel pockets promote smooth chain engagement and free chaining. A standard load limiter provides automatic overload protection, and the Hoistaloy load chain is designed to provide strength and durability in demanding lifting service.

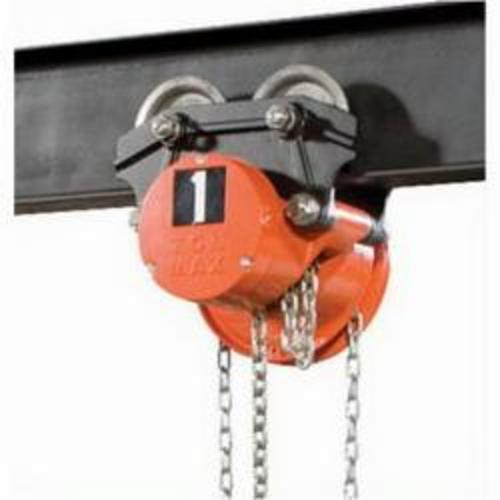

Products 4627 and 4628 use rigid hook suspension for attachment to a properly rated overhead support. Product 4838 combines the Cyclone hand hoist with a low-headroom plain trolley, providing reduced vertical clearance and allowing the load to travel along a suitable overhead beam. The trolley configuration uses crowned-tread, flanged wheels to reduce rolling resistance and improve movement along the supporting beam.

Material:
High-strength aluminum alloy frame castings
High-strength aluminum alloy cover castings
Hoistaloy alloy load chain
Rugged steel trolley loadbars on product 4838

Compatible With:
Properly rated overhead hook suspension points for products 4627 and 4628
Overhead beams with a 4 to 7 in flange-width range for product 4838
Beam systems suitable for the selected trolley capacity and configuration
CM Cyclone fabric chain bags
CM Cyclone metal chain containers

Uses:
Industrial lifting and lowering
Manufacturing and production operations
Equipment installation and maintenance
Fabrication and assembly work
Warehouse material handling
Manual lifting where electrical or pneumatic power is unavailable
Moving suspended loads along an overhead beam with product 4838

Key Features:
Series 646 construction
3 Ton capacity on product 4627
4 Ton capacity on products 4628 and 4838
10 ft Lift
Double-reeved load-chain configuration
Rigid hook suspension on products 4627 and 4628
Low-headroom plain trolley on product 4838
Automatic Weston-type load brake
Standard load limiter for overload protection
High-efficiency spur gearing
Fully machined, forged liftwheel pockets
Rugged Hoistaloy load chain
85 lb pull to lift the rated load on product 4627
88 lb pull to lift the rated load on products 4628 and 4838
21-1/2 in minimum between hooks on products 4627 and 4628
16-3/4 in minimum between hooks on product 4838
Standard hand-chain drop of 8 ft with a 10 ft Lift
Crowned-tread, flanged trolley wheels on product 4838
Reduced headroom, side clearance and end approach on product 4838

Note:
Product 4838 is a low-headroom plain trolley hoist rather than a hook-suspended hoist. The spreadsheet identifies the 16-3/4 in measurement as minimum between hooks, while other product data identifies the same measurement as trolley headroom. Confirm the preferred specification label before publishing. Do not exceed the rated capacity or use these hoists to lift people or move loads over people.
