VLHW13 G100 Trigger Set 1/2"

Product Description

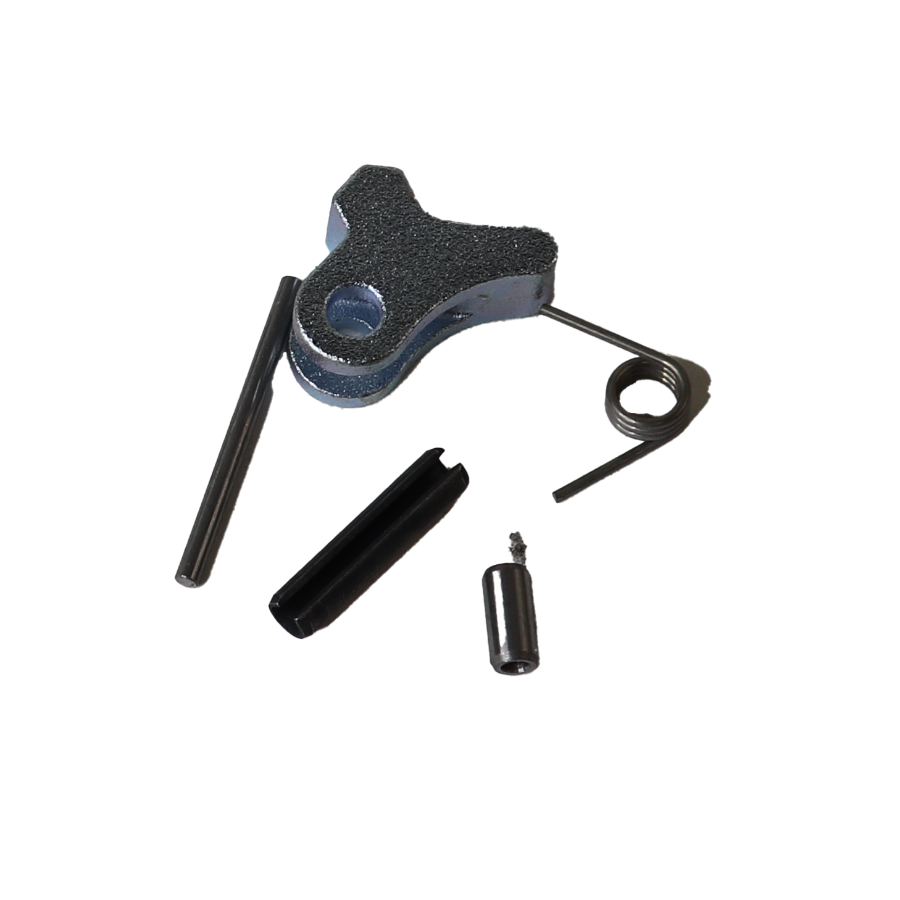

The Pewag VLHW13 is a Grade 100 replacement trigger set designed for use with Pewag safety hooks in the LHW 13, KLHW 13, and WLH(B)W 13 families. The set includes the safety lever, spring, and retaining pin, providing all components necessary to fully restore the trigger mechanism on compatible safety hooks. Engineered to Pewag's OEM specifications for the size 13 hook family, the VLHW13 ensures correct fit, trigger engagement force, and spring rate when installed on compatible hooks, maintaining the full safety performance of the trigger mechanism.

The trigger mechanism is a critical safety feature of these hook designs, functioning as a positive locking device that prevents the hook from opening unless the trigger is deliberately actuated. This provides a higher level of load retention security than a standard safety latch, making trigger-style safety hooks preferred in applications where accidental hook opening poses a significant risk. The retaining pin secures the trigger assembly within the hook body, ensuring the lever and spring remain correctly positioned throughout the service life of the assembly.

As a safety-critical replacement assembly, the VLHW13 must be installed by qualified personnel in accordance with Pewag's assembly and maintenance guidelines. The safety lever, spring, and retaining pin must be inspected regularly for wear, deformation, loss of spring tension, or corrosion, and must be replaced immediately if any deficiency is identified. Only OEM Pewag replacement parts should be used to maintain the rated performance and safety integrity of the hook assembly.

Material: Alloy steel safety lever Steel spring Retaining pin Grade 100 rated components

Compatible With: Pewag LHW 13 Pewag KLHW 13 Pewag WLHW 13 Pewag WLHBW 13

Uses: Replacement trigger set for Pewag LHW, KLHW, and WLH(B)W size 13 safety hooks Maintenance and repair of trigger-style safety hook mechanisms Overhead lifting and rigging applications using compatible Pewag size 13 safety hooks Applications requiring positive locking hook mechanisms

Key Features: Grade 100 rated trigger set for compatible Pewag size 13 safety hooks Includes safety lever, spring, and retaining pin Positive locking trigger mechanism for enhanced load retention security Engineered to Pewag OEM specifications for LHW 13, KLHW 13, and WLH(B)W 13 hooks 1/2" hook size compatibility

Note: Only use OEM Pewag replacement trigger sets. Non-OEM substitutes may not meet the dimensional or functional specifications required to maintain hook safety performance. Installation must be performed by qualified personnel following Pewag maintenance guidelines. Replace immediately if spring tension loss, deformation, or corrosion is detected.
