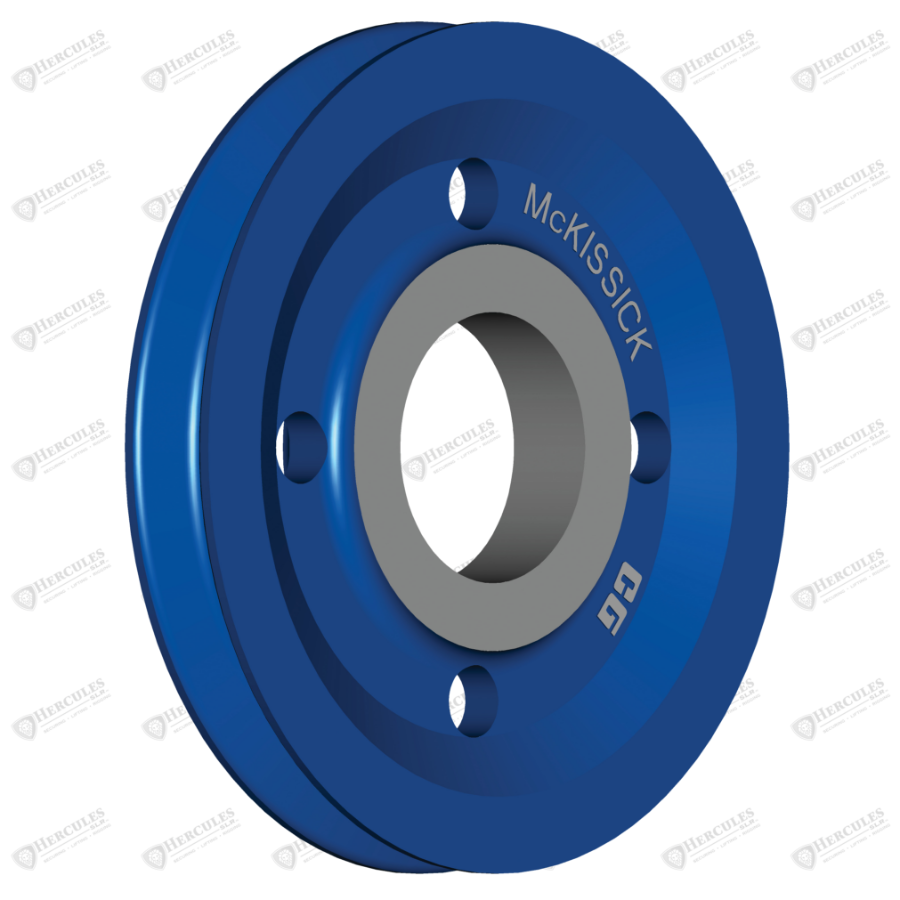

McKissick Bar Steel Sheave - 1/4 in x 3 in - Plain Bore

Product Description

The McKissick Bar Steel Sheave with plain bore is a compact wire rope sheave designed for lifting and rigging applications involving 1/4 in wire rope where solid bar steel construction and a flexible open bearing arrangement allow the end user to specify or supply their own pin, axle, or bushing to suit the requirements of a particular block assembly or maintenance application. Bar steel construction provides dependable industrial-grade strength and durability suited to a wide range of rigging and hoisting applications operating within the sheave's rated capacity. This sheave is appropriate for use in small block assemblies, light to moderate industrial rigging systems, and maintenance or utility hoisting applications where 1/4 in wire rope is specified.

This sheave accommodates wire rope up to 1/4 in maximum cable diameter and features a 3 in outside diameter, making it a highly compact option well suited to small block assemblies and space-restricted rigging installations where a minimal footprint is essential. The plain bore configuration provides an unlined bore without a pre-installed bushing or rolling element bearing, offering maximum flexibility for integration into custom rigging builds, replacement of worn bore components, or assemblies where a specific bearing arrangement is dictated by the block design or operating environment. This makes the sheave a practical choice for maintenance operations, custom fabrication, and rigging applications where the bearing solution is determined at the point of installation.

McKissick is a recognized manufacturer of sheaves, blocks, and rigging hardware for the oil and gas, construction, marine, and industrial sectors. This sheave is intended for use as a replacement or component part within compatible McKissick block assemblies and rigging systems. All installations should comply with applicable load ratings, rigging standards, and inspection requirements to ensure safe and reliable operation throughout the service life of the assembly.

Material: Bar Steel Sheave

Compatible With: McKissick block assemblies Wire rope up to 1/4 in diameter Customer-supplied pins, axles, or bushings

Uses: Overhead crane and hoist systems Block and tackle rigging assemblies Wire rope sheave replacement and maintenance Custom rigging assembly builds and fabrication Construction and industrial lifting applications Maintenance and utility hoisting applications

Key Features: 1/4 in maximum wire rope capacity 3 in sheave outside diameter for highly compact installations Plain bore configuration for flexible pin, axle, or bushing fitment Bar steel sheave construction for reliable industrial-grade durability Suitable for custom builds, maintenance applications, and space-constrained rigging assemblies
