Lodestar XL Electric Chain Hoist with Plain Trolley - 4 Ton, Double Reeving, 15 FPM

Product Description

Product Description:
CM Lodestar XL electric chain hoists with plain trolleys combine powered vertical lifting with manually controlled horizontal beam travel. The listed double-reeved configurations include 3 Ton models operating at 12 or 15 FPM and 4 Ton models operating at 12 or 15 FPM. The heavy-duty Lodestar XL platform is designed for demanding industrial applications that require higher capacities, efficient chain reeving, and dependable load movement.

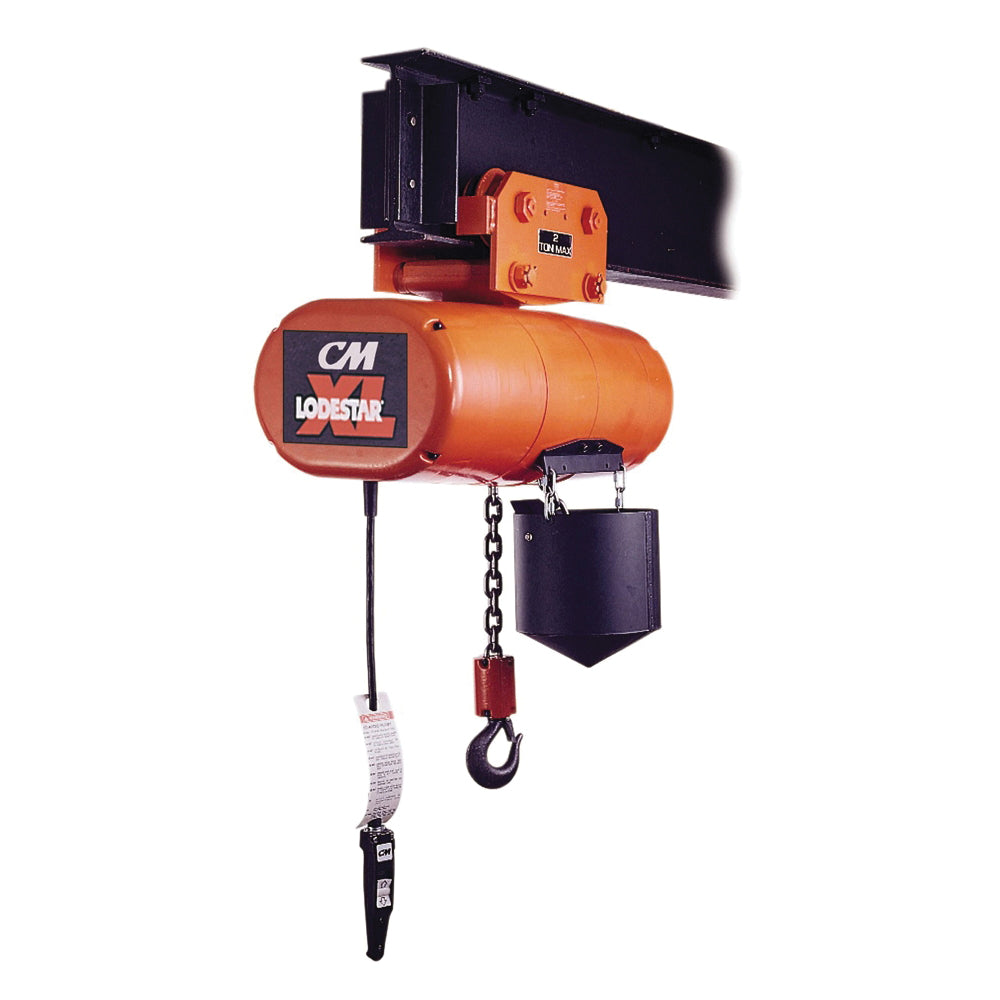

The factory-installed plain trolley is a manual push-type assembly connected to the hoist through a rigid lug suspension. The trolley can be moved along the runway by pushing or pulling the suspended load and is adjustable for compatible American Standard S-beams and flat-flanged beams. All four configurations fit beam flange widths from 4 to 6-1/4 in. The 3 Ton models have a 4 ft minimum-radius curve, 4 in wheel-tread diameter, and 9-1/8 in headroom, while the 4 Ton models have a 6 ft minimum-radius curve, 6-1/2 in wheel-tread diameter, and 12 in headroom.

The Lodestar XL hoist uses a lightweight cast aluminum frame and covers, Hoistaloy load chain, and a hardened alloy steel oblique-lay liftwheel designed to promote smooth chain engagement and reduce wear. Surface-hardened alloy steel helical gears operate in an oil bath for efficient power transmission. A multiple-disc brake, overload protector, upper and lower screw-type limit switches, thermally protected motor, and forged hooks with latches support controlled lifting in manufacturing, fabrication, maintenance, and heavy material-handling environments.

Material:
Lightweight cast aluminum frame and covers
Hoistaloy steel load chain
Hardened alloy steel oblique-lay liftwheel
Surface-hardened alloy steel helical gearing
Forged steel upper and lower hooks
Steel trolley wheels and suspension components

Compatible With:
American Standard S-beams from 4 to 6-1/4 in flange width
Flat-flanged beams from 4 to 6-1/4 in flange width
CM Lodestar XL rigid lug suspension assemblies
Capacity-, reeving-, and lift-specific CM chain containers
Compatible electrical supplies matching the hoist nameplate

Uses:
Powered lifting and lowering of industrial loads
Manual horizontal load movement along overhead beams
Heavy equipment manufacturing
Automotive production and assembly
Paper mill maintenance and production
Fabrication and machinery installation
Plant maintenance and material handling

Key Features:
Factory-installed manual plain trolley
Double-reeved load-chain configuration
Heavy-duty Lodestar XL construction
Oil-bath helical gearing
Multiple-disc braking system
Standard overload protector
Upper and lower limit switches
Thermally protected hoist motor
Hardened oblique-lay liftwheel
Adjustable trolley for multiple beam profiles
