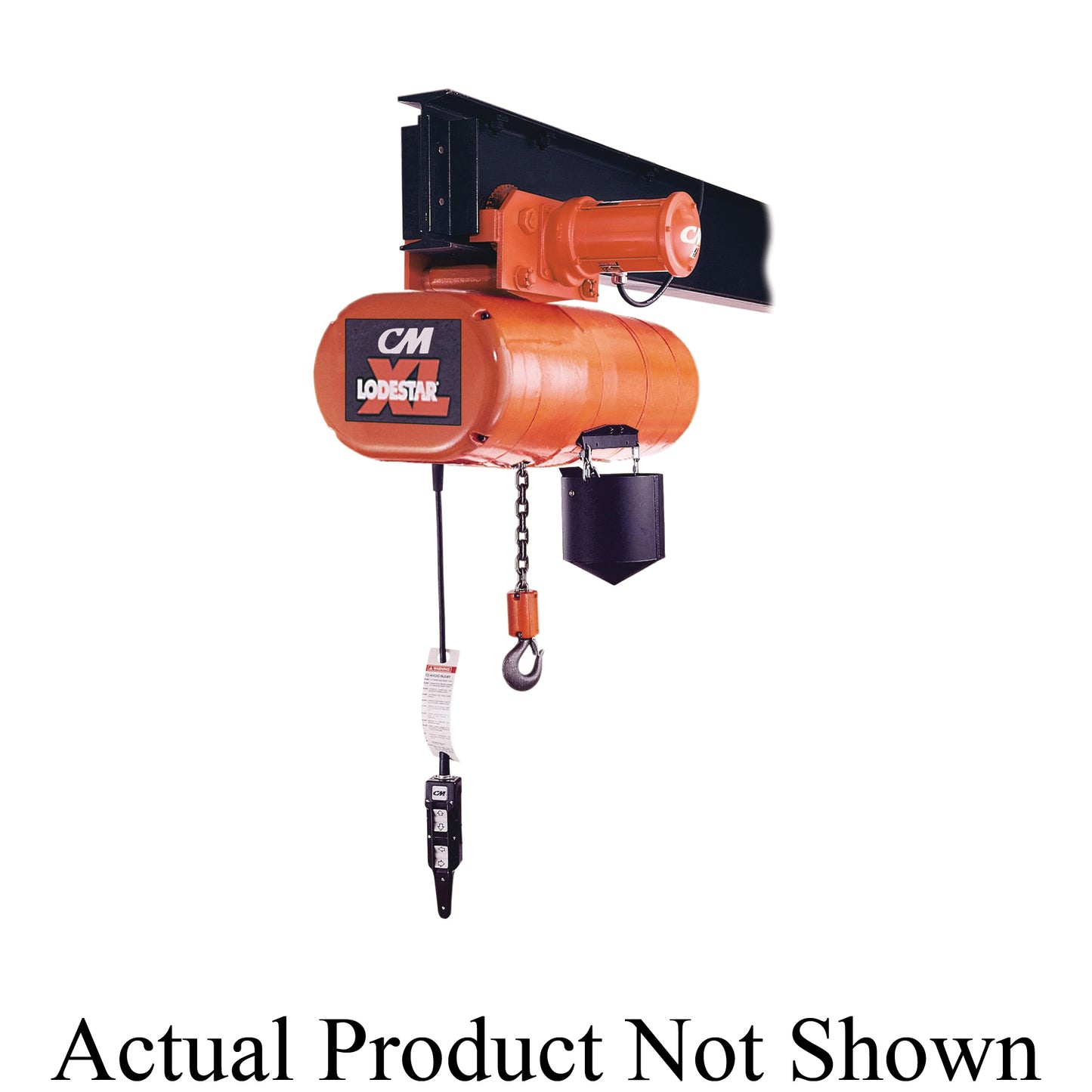

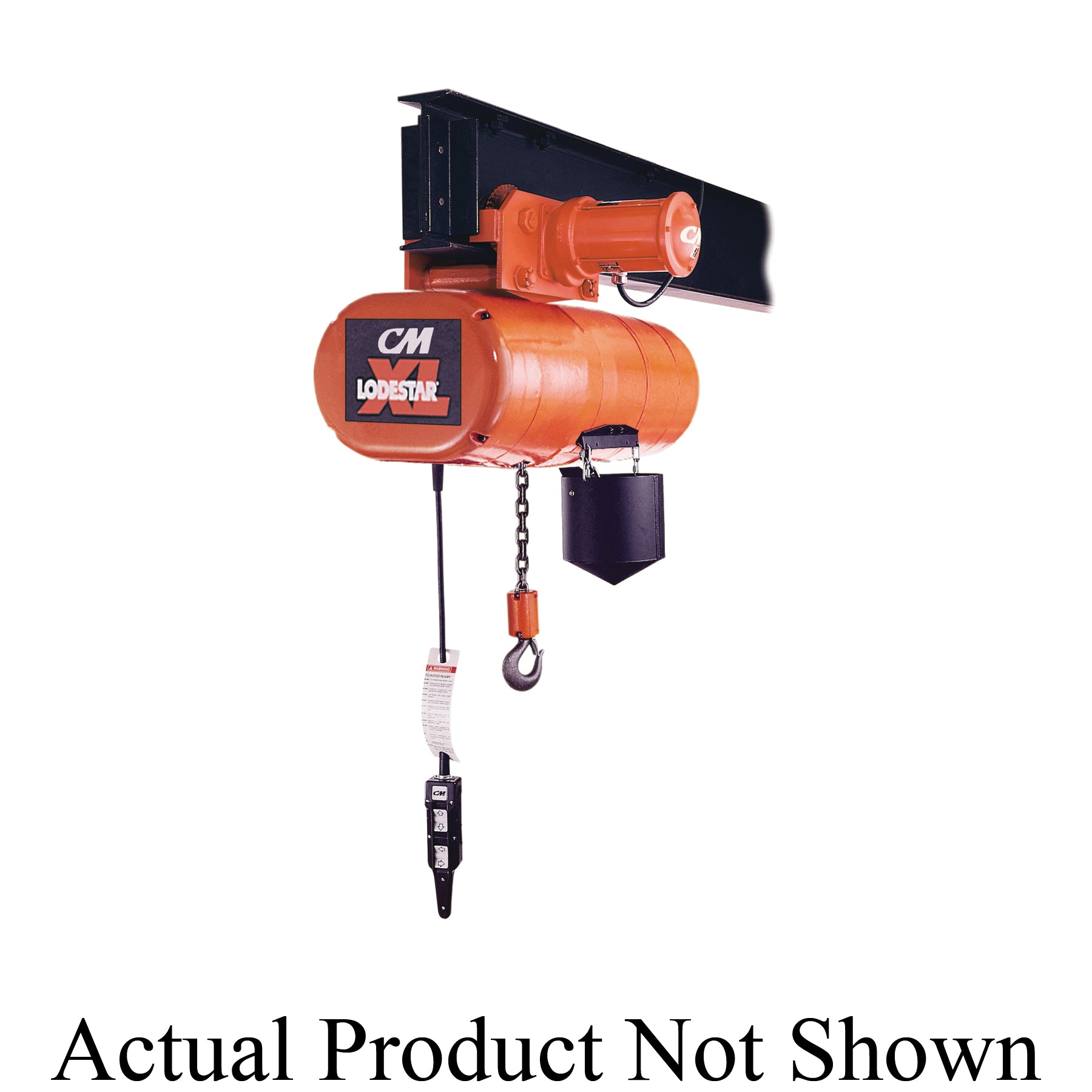

Lodestar XL Motor-Driven Trolley - 5 Ton, Double Reeving, 15 FPM, 4 to 6-1/4 in Beam Flange

Product Description

CM Lodestar XL motor-driven trolleys provide powered horizontal travel for compatible double-reeved Lodestar XL electric chain hoists. The listed configurations cover 3, 4, and 5 Ton capacities, with travel-speed options of 9, 12, or 15 FPM. Motorized operation supports controlled forward and reverse movement along overhead runway beams without requiring the operator to push the suspended load or use a trolley hand chain.

All listed configurations fit beam flange widths from 4 to 6-1/4 in. The 3 Ton models have a 4 ft minimum-radius curve, 4 in wheel-tread diameter, and 9-1/8 in headroom to the shaft. The 4 and 5 Ton models have a 6 ft minimum-radius curve, 6-1/2 in wheel-tread diameter, and 12 in headroom to the shaft.

These powered trolleys are suited to production, fabrication, assembly, machinery installation, maintenance, and other industrial applications requiring repeatable horizontal movement of heavy suspended loads. The selected trolley must be matched to the Lodestar XL hoist capacity, double-reeving arrangement, beam dimensions, desired travel speed, electrical configuration, and required operating clearances.

Material:
Industrial metal trolley frame and side plates
Electric trolley motor
Metal drive and transmission components
Trolley wheel and axle assemblies
Steel suspension and beam-adjustment hardware
Electrical wiring and control components

Compatible With:
CM Lodestar XL electric chain hoists with double must be matched to the Lodestar XL hoist capacity, double-reeving arrangement reeving
Hoists matching the selected 3, 4, or 5 Ton trolley capacity
Overhead beams with flange widths from 4 to 6-1/4 in
Straight or curved runway beams meeting the capacity-specific minimum-radius requirement
Capacity-matched hoist suspension and trolley mounting components

Uses:
Providing powered horizontal travel for Lodestar XL hoists
Positioning heavy loads along overhead runway beams
Industrial maintenance and machinery installation
Fabrication and assembly operations
Manufacturing and production applications
Heavy equipment and material handling
Repetitive applications where manual trolley travel is inefficient

Key Features:
Designed for double-reeved CM Lodestar XL hoists
Available in 3, 4, and 5 Ton capacities
Motor-driven forward and reverse travel
Available with 9, 12, or 15 FPM travel speeds
Fits 4 to 6-1/4 in beam flanges
Controlled powered load positioning
Suitable for compatible straight and curved runway beams
Reduces manual effort during horizontal travel
