Lodestar XL Motor-Driven Trolley - 7.5 Ton, Triple Reeving, 10 FPM, 4 to 6-1/4 in Beam Flange

Product Description

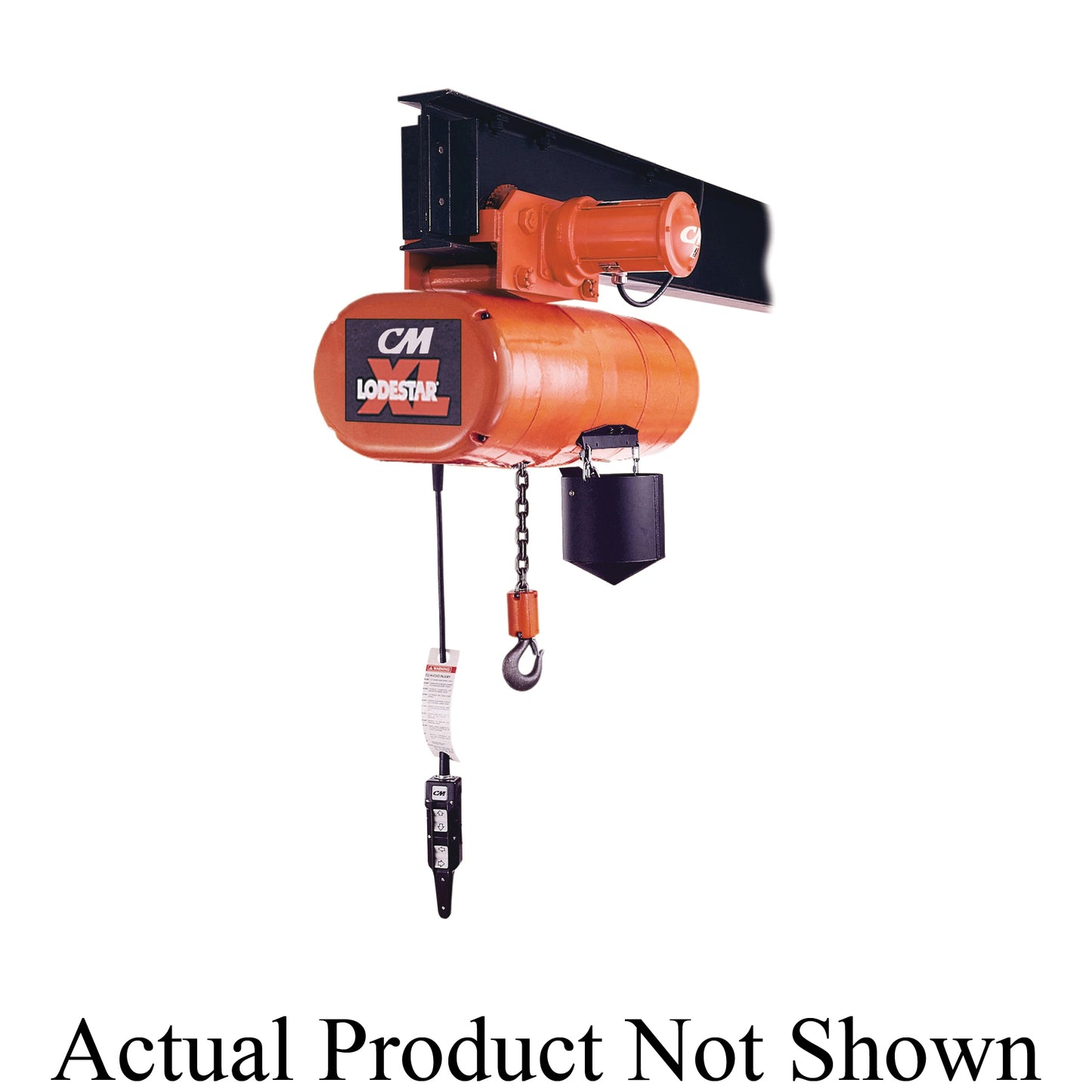

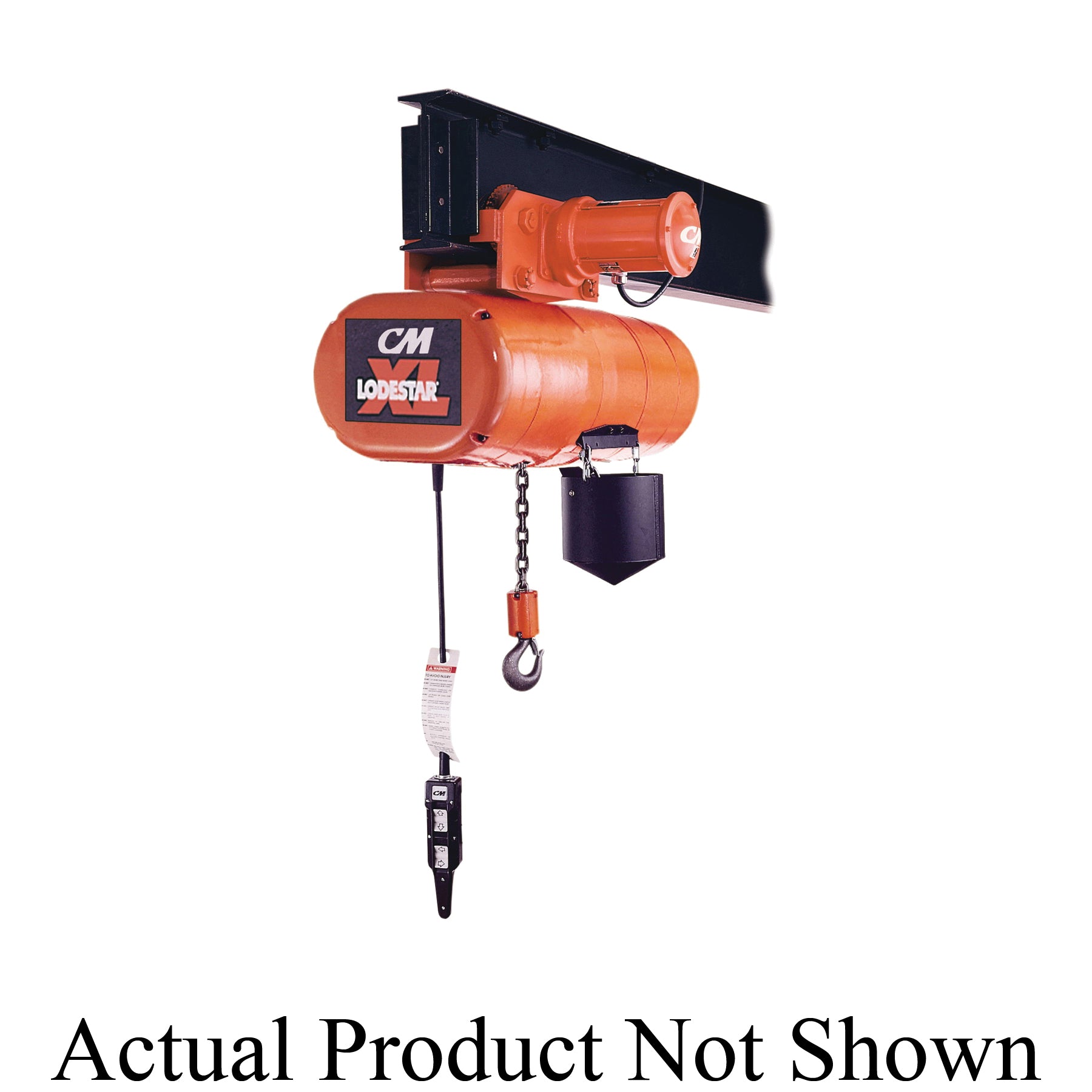

CM Lodestar XL motor-driven trolleys provide powered horizontal travel for compatible electric chain hoists and suspended loads operating along overhead runway beams. The listed configurations include a 2 Ton single-reeved trolley and triple-reeved models with 5, 6, and 7.5 Ton capacities. Motor-driven operation supports consistent forward and reverse movement without requiring the operator to push the load or pull a manual trolley hand chain.

The 2 Ton single-reeving configurations fit beam flange widths from 3.33 to 5.55 in and are available with 18, 24, or 30 FPM travel speeds. These models have a 4 ft minimum-radius curve and a 4-11/16 in wheel-tread diameter. The different speed options allow the trolley to be selected for controlled positioning or faster movement between lifting locations.

The 5, 6, and 7.5 Ton triple-reeving configurations fit beam flange widths from 4 to 6-1/4 in and are designed for a 6 ft minimum-radius curve. These models have a 6-1/2 in wheel-tread diameter and 12 in headroom. Available travel speeds range from 6 to 10 FPM depending on capacity and model, supporting controlled movement of heavier suspended loads.

Material:
Industrial metal trolley frame and side plates
Electric trolley motor
Metal drive and transmission components
Trolley wheel and axle assemblies
Suspension and beam-adjustment hardware
Electrical wiring and control components

Compatible With:
CM Lodestar XL electric chain hoists
2 Ton Lodestar XL hoists with single reeving
5, 6, and 7.5 Ton Lodestar XL hoists with triple reeving
Overhead beams within the specified flange-width ranges
Straight or curved runway beams meeting the model-specific minimum-radius requirement
Capacity-matched suspension and mounting components

Uses:
Providing powered horizontal travel for Lodestar XL hoists
Positioning suspended loads along overhead runway beams
Industrial maintenance and machinery installation
Fabrication and assembly operations
Manufacturing and production applications
Heavy equipment and material handling
Repetitive applications where manual trolley movement is inefficient

Key Features:
Motor-driven forward and reverse travel
Single- and triple-reeving configurations
Available in capacities from 2 to 7.5 Ton
Multiple travel-speed options
Capacity-specific beam-flange compatibility
Suitable for compatible straight and curved runway beams
Controlled movement of heavy suspended loads
Reduced manual effort during horizontal travel
