Pewag SFGW 19/20 Latch Kit 3/4 for HSW & KHSW Grade 80/100

Product Description

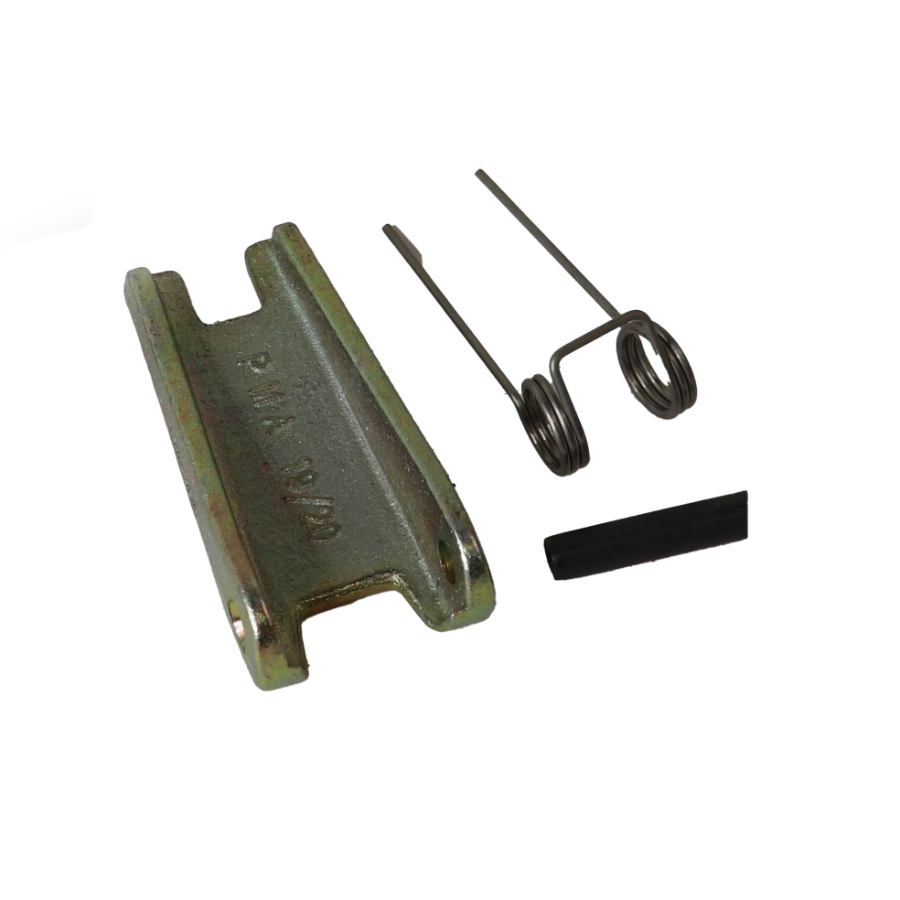

The Pewag SFGW19/20 is a forged replacement safety latch set designed for use with Pewag size 19/20 hooks and compatible models, including the HSW 19/20, KHSW 19/20, and SSM 7/8. The set includes the forged safety latch, spring, and cotter pin, providing all components necessary to fully restore the safety latch mechanism on compatible hooks. The forged construction of the latch body provides superior strength and durability compared to stamped or cast alternatives, ensuring reliable performance and long service life in demanding lifting and rigging environments where size 19/20 hooks are deployed.

The safety latch is a critical safety component of the hook assembly, functioning to retain the load in the hook throat and prevent accidental disengagement during lifting operations. The spring maintains the latch in the closed position under normal operating conditions, while the cotter pin secures the latch pivot and prevents the latch from becoming dislodged from the hook body. Together, these three components form a complete, matched replacement set engineered to Pewag's OEM specifications for the size 19/20 hook family and compatible SSM 7/8 model.

As a safety-critical replacement assembly, the SFGW19/20 must be installed by qualified personnel in accordance with Pewag's assembly and maintenance guidelines. The latch, spring, and cotter must be inspected regularly for wear, deformation, loss of spring tension, or corrosion, and must be replaced immediately if any deficiency is identified. Only OEM Pewag replacement parts should be used to maintain the rated performance and safety integrity of the hook assembly.

Material: Forged alloy steel safety latch Steel spring Cotter pin

Compatible With: Pewag HSW 19/20 Pewag KHSW 19/20 Pewag SSM 7/8

Uses: Replacement safety latch set for Pewag size 19/20 hooks and SSM 7/8 Maintenance and repair of hook safety latch mechanisms Overhead lifting and rigging applications using compatible Pewag hooks

Key Features: Forged alloy steel latch body for superior strength and durability Complete set including latch, spring, and cotter pin Engineered to Pewag size 19/20 hook OEM specifications Maintains safety integrity and rated performance of the hook assembly when correctly installed Compatible with HSW 19/20, KHSW 19/20, and SSM 7/8 models

Note: Only use OEM Pewag replacement safety latch sets. Non-OEM substitutes may not meet the dimensional or functional specifications required to maintain hook safety performance. Installation must be performed by qualified personnel following Pewag maintenance guidelines. Replace immediately if spring tension loss, deformation, or corrosion is detected.
