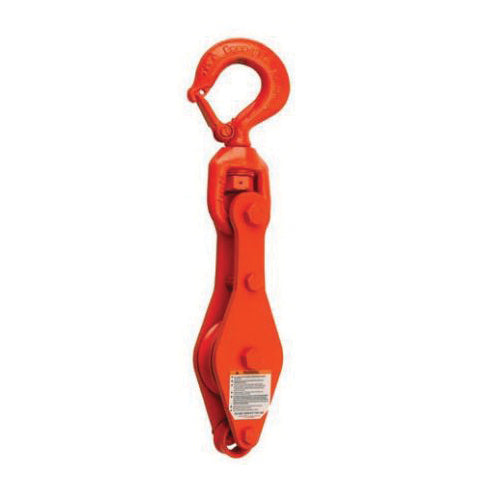

Western N-411B Series Synthetic Fiber Rope Steel Block - 3,000 lb - 3/4 in Synthetic Fiber Rope

Product Description

Product Description: The Western N-411B Series 3000 lb Synthetic Fiber Rope Steel Block is a compact and durable single-groove rigging block designed for use with synthetic fiber rope cable up to 3/4 inch in diameter in general rigging, construction, marine, and industrial applications where a reliable and manageable block is required for light to medium duty rope-based lifting and pulling operations. Standard steel blocks offer the durability and strength of an all-steel construction in a compact form factor well suited to a wide range of field and shop rigging tasks. The N-411B Series in this configuration is rated to a 3000 lb working load limit and is well matched to light to medium duty rigging applications where synthetic fiber rope is the preferred or specified line material and a single-groove block for 3/4 inch rope is required.

The single 3-1/2 inch sheave accommodates synthetic fiber rope up to 3/4 inch in diameter and provides reliable rope guidance within the compact overall block dimensions. The sheave runs on a self-lubricating bronze bushing bearing, a proven and low-maintenance bearing solution well suited to field rigging environments where regular lubrication may not always be practical. Self-lubricating bronze bushings deliver consistent performance across a range of operating conditions, resist corrosion, and provide reliable service life in both indoor and outdoor applications without requiring frequent maintenance intervention. The 6 inch block size provides a practical and manageable form factor suited to rigging configurations where a compact single-groove block for 3/4 inch synthetic fiber rope is preferred, while the 3000 lb working load limit reflects the increased capacity relative to smaller rope diameter configurations in the N-411B Series.

The N-411B Series standard steel block in this 3/4 inch rope configuration is designed for integration into general rigging, block and tackle, and rope-based lifting and pulling systems where a dependable light to medium capacity single-groove synthetic fiber rope block in a compact steel construction is required. The block is compatible with standard rigging hardware including hooks and shackles rated to the appropriate working load limit. All connected rigging components must be rated to 3000 lb or greater, and the block must be inspected before each use in accordance with applicable lifting and rigging safety standards. Synthetic fiber rope must be inspected for wear, abrasion, and degradation before each use and replaced when signs of deterioration are present.

Material: Steel block body - Standard configuration Steel sheave Self-lubricating bronze bushing bearing

Compatible With: Synthetic fiber rope cable up to 3/4 in diameter Hooks, shackles, and rigging hardware rated to 3000 lb or greater General rigging and block and tackle systems configured for 3/4 in synthetic fiber rope

Uses: General construction site lifting and rigging operations Block and tackle lifting and pulling assemblies Marine and boat rigging applications Industrial and shop rigging tasks Light to medium duty field rigging requiring a compact single-groove standard steel block for 3/4 in synthetic fiber rope

Key Features: 3000 lb working load limit N-411B Series designation Standard steel block configuration Single groove - 3-1/2 in sheave outside diameter 6 in block size for a compact and manageable form factor suited to 3/4 in synthetic fiber rope Accommodates synthetic fiber rope cable up to 3/4 in diameter Self-lubricating bronze bushing bearing for low-maintenance reliable performance Durable all-steel construction

Note: All connected rigging hardware must be rated to the working load limit of this block. Inspect the block, sheave, bearing, and all attachment points before each use. Inspect synthetic fiber rope for wear, abrasion, UV degradation, and chemical exposure before each use and replace when necessary. Follow applicable lifting and rigging safety standards and do not exceed the rated working load limit.
