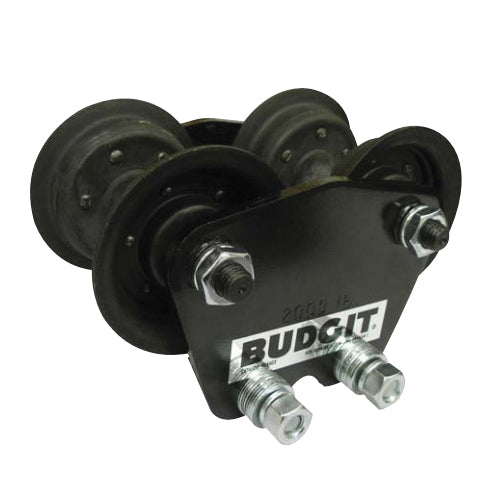

Budgit Heavy-Duty Push Rigid-Mount Trolley - 2 Ton, 3-3/8 to 6 in Beam Flange

Product Description

Product Description:
Budgit heavy-duty push rigid-mount trolleys provide manual horizontal movement for compatible hoists installed on overhead runway beams. The listed configurations include 3/4, 5/6, 1, and 2 Ton capacities. Their push-type design is suitable for industrial applications where straightforward manual travel is preferred over an electric, pneumatic, or hand-geared trolley system.

The rigid-mount connection attaches the hoist directly to the trolley assembly, creating a compact installation that helps preserve available lifting height. This arrangement is especially useful in facilities with restricted overhead clearance or applications where the hoist must remain closely coupled to the supporting beam. The trolley must be properly matched to the hoist capacity, suspension interface, runway dimensions, and required operating clearances.

The 1 Ton model fits beam flanges from 3 to 5 in, has a 3 ft minimum-radius curve, a 4 in wheel-tread diameter, and 7-5/8 in headroom to the shaft. The 2 Ton model fits beam flanges from 3-3/8 to 6 in, while the 3/4 Ton model fits flanges from 4 to 6-1/4 in. Both have a 5 ft minimum-radius curve, a 4 in wheel-tread diameter, and 9-1/8 in headroom to the shaft. The 5/6 Ton model fits beam flanges from 4 to 6-1/4 in.

Material:
Industrial metal trolley side frames
Metal trolley wheels and axles
Rigid-mount suspension components
Steel beam-adjustment and fastening hardware
Metal load-bearing components

Compatible With:
Compatible Budgit hoists using the required rigid-mount connection
Overhead beams within the selected trolley’s flange-width range
Capacity-matched hoist and trolley mounting components
Straight or curved runway beams meeting the model-specific requirements
Runway systems providing proper wheel engagement and flange clearance

Uses:
Providing manual horizontal travel for suspended hoists
Positioning loads along overhead runway beams
Low-headroom lifting installations
Industrial maintenance and equipment installation
Fabrication and assembly operations
Production and manufacturing applications
Warehouse and general material handling

Key Features:
Heavy-duty manual push operation
Rigid-mount suspension
Available in 3/4, 5/6, 1, and 2 Ton capacities
Compact direct hoist mounting
Model-specific beam-flange adjustment ranges
Capacity-specific curve and headroom configurations
No electric or pneumatic trolley power required
No separate trolley hand-chain drive
Suitable for compatible straight and curved runway beams
