FUSE 20VA

Product Description

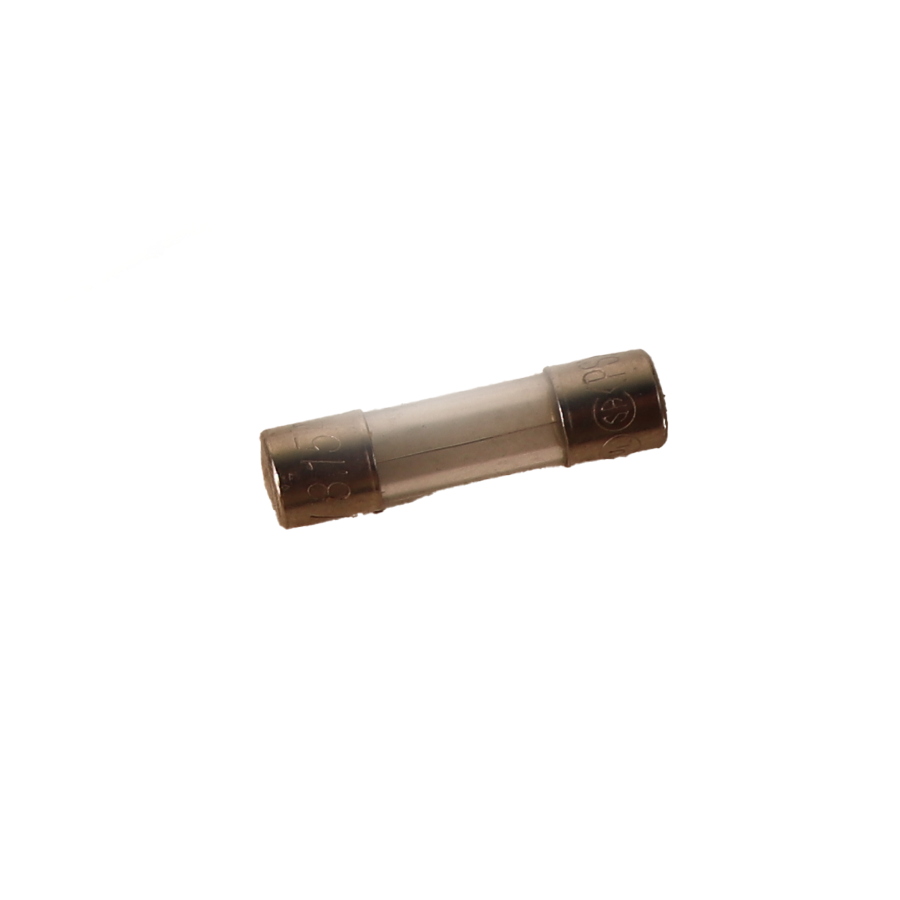

The Kito Fuse is a genuine OEM replacement electrical protection component for Kito electric chain hoists and hoist control systems, identified by part number 9006271. The fuse is a sacrificial overcurrent protection device installed in the hoist electrical circuit that protects the hoist control circuitry, motor windings, and associated electrical components from damage caused by overcurrent conditions including short circuits, ground faults, and sustained overloads. When current through the fuse exceeds the rated 2 amp threshold, the fuse element melts and opens the circuit, interrupting current flow and preventing the overcurrent condition from damaging the protected electrical components downstream of the fuse.

The 2 amp, 125 volt, 20VA rating identifies this as a low-current control circuit fuse rather than a main power fuse, consistent with its application in the hoist control circuit — typically protecting the pendant control transformer secondary, the control relay coil circuit, or other low-voltage control components within the hoist electrical system. The 125 volt voltage rating confirms this fuse is rated for use in 125 volt AC or DC control circuits, and the 20VA rating indicates the maximum apparent power the fuse circuit is designed to handle. Using a fuse of incorrect amperage, voltage rating, or interrupting capacity in a hoist electrical circuit is a serious safety risk — an undersized fuse will cause nuisance tripping under normal operating conditions, while an oversized fuse will fail to protect the circuit under fault conditions, potentially causing electrical damage, fire, or injury.

The fuse must be replaced with a genuine Kito OEM fuse of identical rating — 2 amps, 125 volts, 20VA, part number 9006271 — to ensure correct overcurrent protection for the hoist control circuit. Never substitute a fuse of a different amperage or voltage rating, and never bypass or bridge a fuse in a hoist electrical circuit under any circumstances.

Material: Fuse construction consistent with Kito OEM electrical specifications Rating: 2A / 125V / 20VA

Compatible With: Kito electric chain hoists and hoist control systems Part number 9006271

Uses: Replacement of blown or damaged control circuit fuses in Kito electric chain hoists Scheduled preventive maintenance and hoist electrical inspection programs Hoist electrical overhaul and refurbishment Restoration of correct overcurrent protection in Kito hoist control circuits

Key Features: Genuine Kito OEM replacement fuse 2 amp rated current 125 volt rated voltage 20VA rated apparent power Part number 9006271 Protects hoist control circuit components from overcurrent damage Must be replaced with identical rating fuse only

Note: Fuse replacement must be performed by a qualified electrician or hoist technician following Kito electrical service procedures and applicable electrical safety regulations. Always identify and correct the root cause of a blown fuse before replacing it — a fuse that blows repeatedly indicates a fault condition in the protected circuit that must be diagnosed and repaired. Never replace a fuse with one of a higher amperage rating. The hoist must be fully electrically tested and function tested before returning to service following fuse replacement.
