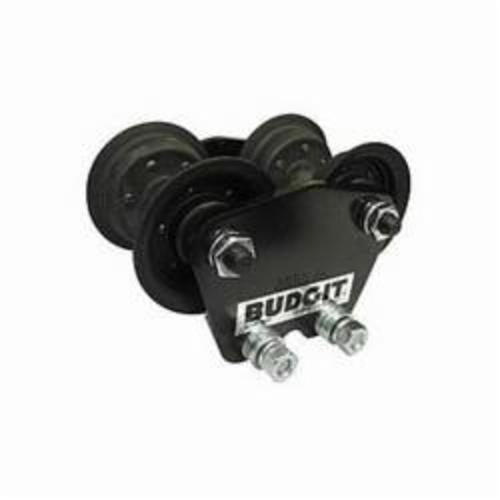

Budgit Manual Geared Trolley - 2,000 lb, 3 to 5 in Beam Flange, 5 in Beam Height, Steel Wheels

Product Description

Product Description:
This Budgit manual geared trolley provides controlled horizontal travel for a compatible suspended hoist and load along an overhead runway beam. It has a 2,000 lb rated load capacity and is adjustable to fit beam flange widths from 3 to 5 in.

The trolley is designed for a 5 in beam height and can travel through compatible runway curves with a minimum radius of 42 in. Manual geared operation allows the operator to move the trolley gradually in either direction, providing greater positioning control and requiring less effort than directly pushing the suspended load.

Steel wheels provide durable contact with the supporting beam for industrial lifting and material-handling applications. The trolley must be matched to the hoist capacity, suspension arrangement, beam dimensions, runway curvature, and required operating clearances.

Material:
Steel trolley wheels
Geared travel components
Trolley frame and suspension components
Exact materials for components other than the wheels are not specified

Compatible With:
Compatible Budgit hoists within the 2,000 lb trolley capacity
Overhead beams with flange widths from 3 to 5 in
Beams matching the specified 5 in height
Straight or curved runway beams meeting the 42 in minimum-radius requirement
Capacity-matched hoist suspension and mounting components

Uses:
Providing controlled horizontal travel for suspended hoists
Positioning loads along overhead runway beams
Industrial maintenance and equipment installation
Fabrication and assembly operations
Manufacturing and production applications
Warehouse and general material handling

Key Features:
2,000 lb rated load capacity
Manual geared travel
Fits 3 to 5 in capacity
Overhead beams with flange widths from 3 to 5 in
beam flanges
Designed for a 5 in beam height
42 in minimum-radius curve
Steel trolley wheels
Controlled movement without powered travel
