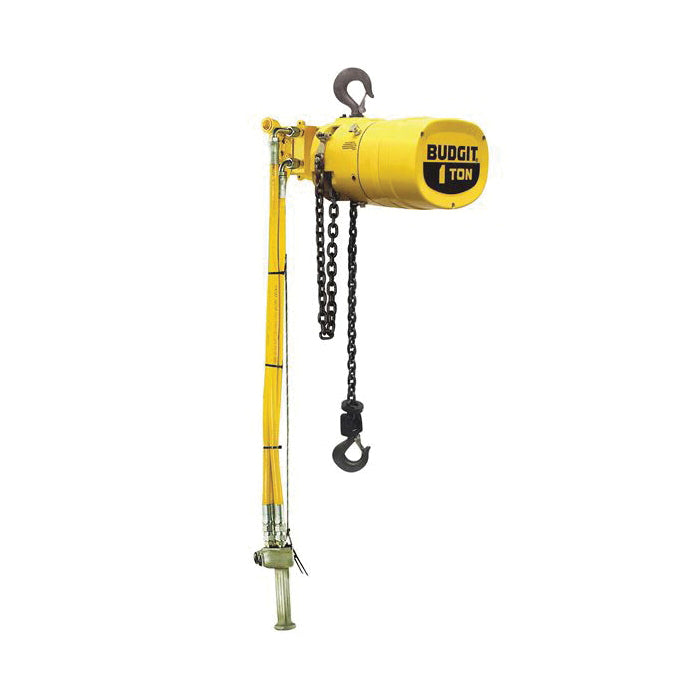

Budgit Series 6000 Air Chain Hoist - 1 Ton Hook Suspension 10 ft Lift

Product Description

The Budgit Series 6000 Air Chain Hoist is a pneumatic lifting solution designed for continuous-duty industrial material handling and precise positioning of loads up to 1 Ton. These standard, single-reeved models provide a 10 ft lifting height and are available with either a 13 FPM or 30 FPM lifting speed. The hoists operate at 90 PSI and use pendant throttle control for responsive lifting and lowering.

The Series 6000 design provides infinitely variable speed control, allowing the operator to start smoothly and accurately position suspended loads. An internal muffler helps reduce operating noise, while the throttle valve supports controlled operation throughout the lifting cycle. Built-in overload protection provides an additional safeguard against excessive loading.

These models are offered with either hook or lug suspension. Hook suspension provides a flexible connection to a suitable overhead support and has a minimum distance of approximately 16-1/2 in between hooks. Lug suspension provides a rigid mounting arrangement for installation with a compatible trolley or supporting structure. The 13 FPM and 30 FPM configurations allow the hoist speed to be selected according to the required balance of controlled positioning and faster load movement.

Material:
Industrial-duty metal frame and housing
Heat-treated steel gearing
Steel load chain
Steel load hook or mounting lug

Compatible With:
Suitable overhead supporting structures
Compatible trolley systems when equipped with lug suspension
Compressed-air systems capable of supplying 90 PSI
Compatible Budgit Series 6000 chain containers

Uses:
Industrial lifting and material handling
Production and assembly operations
Maintenance and repair work
Controlled positioning of suspended loads
Manufacturing facilities
Warehouses and service shops
Applications where pneumatic operation is preferred

Key Features:
1 Ton rated lifting capacity
10 ft Lift
Available with 13 FPM or 30 FPM lifting speed
Standard single-reeved configuration
Hook or lug suspension
Pendant throttle control
Infinitely variable operating speed
Smooth starting and precise load positioning
Continuous-duty pneumatic operation
Internal muffler for reduced operating noise
Throttle valve for controlled movement
Built-in overload protection
90 PSI operating pressure
Approximately 16-1/2 in minimum between hooks on hook-suspension models
Standard chain construction
Available in multiple lifting-speed configurations

Note:
The required airflow may vary according to the selected lifting speed and operating conditions. Verify the air-supply requirements, suspension compatibility and complete model configuration before installation. Follow the manufacturer’s instructions for installation, inspection, operation and maintenance.
