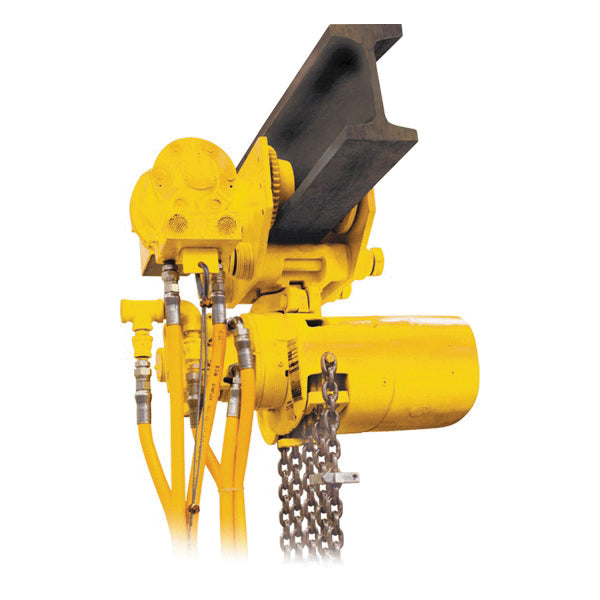

Budgit Spark/Corrosion-Resistant Air Motor-Driven Trolley - 3/8, 1/2 and 3/4 Ton, 50 FPM

Product Description

Budgit spark/corrosion-resistant air motor-driven trolleys provide powered horizontal travel for compatible pneumatic hoists operating on overhead runway beams. The listed geared configurations cover 3/8, 1/2, 3/4, 1 and 2 Ton loads. The lower-capacity trolley operates at 50 FPM, while the 1 and 2 Ton models operate at 60 FPM. Compressed-air operation makes these trolleys suitable for industrial systems where pneumatic power is preferred over an electrically driven travel mechanism.

The pneumatic motor transfers power through the geared trolley drive to move the suspended hoist and load along the supporting beam. Powered travel reduces the manual effort required to reposition loads and supports more consistent movement during production, maintenance, fabrication and equipment-installation work. The spark/corrosion-resistant construction is intended to reduce spark potential from designated trolley components while providing added protection in damp, corrosive or demanding operating environments.

The 3/8, 1/2 and 3/4 Ton configuration fits beam flange widths from 3 to 5 in, travels at 50 FPM and can negotiate a 3 ft minimum-radius curve. The 1 Ton configuration fits flange widths from 3-5/8 to 6-1/4 in, while the 2 Ton configuration fits flange widths from 4 to 6-1/4 in. Both larger models travel at 60 FPM and require a 5 ft minimum-radius curve. All three configurations have a 4 in wheel-tread diameter.

Material:
Manufacturer-specified spark/corrosion-resistant trolley components
Industrial metal trolley frame and suspension components
Pneumatic air motor
Metal geared travel mechanism
Manufacturer-specified trolley wheels
Exact wheel alloy not confirmed

Compatible With:
Compatible Budgit pneumatic chain hoists
Overhead beams within the selected trolley’s flange-width range
Straight or curved runway beams meeting the required minimum-radius specification
Compressed-air systems meeting the trolley and hoist operating requirements
Capacity-matched hoist suspension and trolley mounting components

Uses:
Providing powered horizontal travel for pneumatic hoists
Moving suspended loads along overhead runway beams
Positioning equipment during installation and maintenance
Production and assembly operations
Fabrication and manufacturing applications
Material handling in damp or corrosive environments
Applications where reduced-sparking trolley construction is required

Key Features:
Available for loads from 3/8 to 2 Ton
Pneumatic motor-driven travel
Geared drive for controlled horizontal movement
Spark/corrosion-resistant configuration
50 FPM travel on the 3/8 through 3/4 Ton model
60 FPM travel on the 1 and 2 Ton models
Adjustable beam-flange compatibility
4 in wheel-tread diameter
Suitable for compatible straight and curved runway beams
No electric trolley motor required
