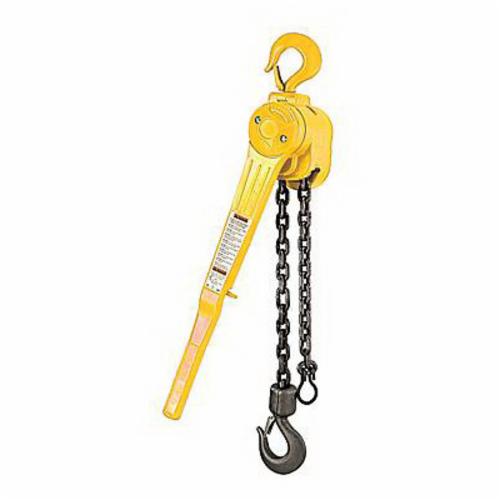

Yale PE2 Ratchet Lever Hoist - 1-1/2 Ton, 5 ft Lift

Product Description

Yale PE2 ratchet lever hoists are lightweight, manually operated link-chain hoists designed for pulling, lifting, dragging, stretching, tensioning, and positioning loads. The listed configurations include 3/4, 1-1/2, and 3 Ton capacities with lifting heights from 5 to 25 ft. Their portable hook-suspended construction is suitable for heavy-duty construction, industrial maintenance, fabrication, equipment installation, and field rigging applications.

The frame and housing are manufactured from durable aluminum alloy and protected by a powder-coated finish. Weatherproof construction supports outdoor service, while Hoistaloy hardened steel link-type load chain provides strength, flexibility, and resistance to wear. Forged upper and lower hooks include safety latches and swivel through 360 degrees to simplify alignment with properly rated suspension points and lifting attachments.

A weatherized Weston-type automatic brake provides positive load control, while the free-wheeling chain adjustment lever allows unloaded chain to be moved quickly for faster hook positioning. All primary controls face the operator for convenient one-handed use. The 3/4 Ton models have a 10-3/4 in minimum distance between hooks, a 1-1/32 in hook opening, and require approximately 58 lb of pull at rated load. The 1-1/2 Ton models have a 14-1/4 in minimum distance between hooks, a 1-1/8 in hook opening, and require approximately 89 lb of pull. The 3 Ton model uses two-strand reeving, has a 16-15/16 in minimum distance between hooks and a 1-7/32 in hook opening, and requires approximately 95 lb of pull. The 3 Ton specifications are confirmed for Yale part number 931-09108-5.

Material:
Lightweight aluminum-alloy frame
Durable aluminum-alloy housing
Powder-coated protective finish
Hoistaloy hardened steel link-type load chain
Forged steel upper and lower hooks
Steel hook safety latches

Compatible With:
Yale PE2 upper and lower Latchlok hooks
Optional Yale Load Limiter
Optional Yale Load Sentry
Optional anchor sling for compatible 3/4 and 1-1/2 Ton models
Optional shorter lever for compatible 3/4 and 1-1/2 Ton models
Capacity- and lift-specific Yale PE2 replacement load chain

Uses:
Lifting and lowering industrial loads
Pulling and positioning machinery
Dragging and stretching applications
Tensioning and equipment alignment
Heavy-duty construction work
Plant and facility maintenance
Fabrication and equipment installation
Outdoor and field rigging applications

Key Features:
Available in multiple capacities and lifting heights
Lightweight aluminum-alloy construction
Weatherproof design for outdoor service
Weatherized Weston-type automatic brake
Free-wheeling chain adjustment
Easy one-handed operation
Hardened steel link-type load chain
Forged 360-degree swivel hooks with safety latches
Simple construction for easier inspection and maintenance
