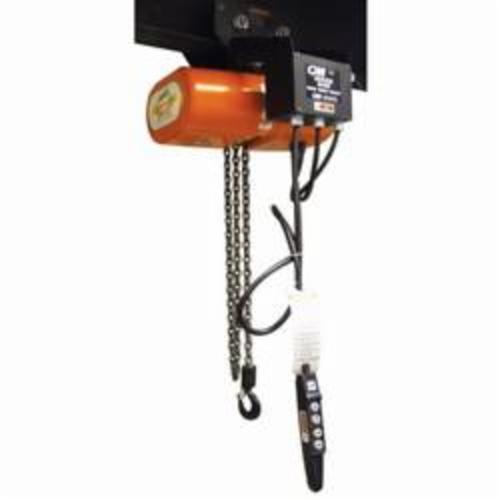

Series 635 Motor-Driven Trolley - 1/8 to 2 Ton, 30 FPM, 1/4 HP, 230 V AC, 3-3/8 to 5-5/8 in Beam Flange

Product Description

Product Description:
CM Series 635 motor-driven trolleys provide powered horizontal travel for compatible hoists and suspended loads operating along overhead runway beams. The listed configurations cover capacities from 1/8 to 3 Ton and are available with 30 or 75 FPM travel speeds. Motor-driven operation reduces manual handling and supports consistent forward and reverse movement during production, maintenance, fabrication, assembly, and equipment-installation applications.

The dimensioned 1/8 to 2 Ton configurations fit beam flange widths from 3-3/8 to 5-5/8 in and beam heights from 6 to 15 in. These models can negotiate a 30 in minimum-radius curve, and specified 75 FPM configurations have a 4 in wheel-tread diameter. The listed 3 Ton configuration fits beam flanges from 4 to 5-5/8 in, accommodates beam heights from 8 to 15 in, and also has a 30 in minimum-radius curve.

Available electrical configurations include 115, 230, 460, and 575 V AC depending on the selected model. Specified configurations use a 1/4 HP drive. The trolley must be matched to the hoist capacity, beam dimensions, travel speed, facility voltage, suspension arrangement, and required runway clearances.

Material:
Industrial metal trolley frame and side plates
Electric trolley motor
Metal drive and transmission components
Trolley wheel and axle assemblies
Suspension and beam-adjustment hardware
Electrical wiring and control components

Compatible With:
Compatible CM hoists using the required Series 635 trolley mounting arrangement
Hoists and suspended loads within the selected trolley capacity
Overhead beams within the specified flange-width and beam-height ranges
Straight or curved runway beams meeting the 30 in minimum-radius requirement
Electrical supplies matching the selected trolley voltage

Uses:
Providing powered horizontal travel for suspended hoists
Moving loads along overhead runway beams
Positioning equipment during installation and maintenance
Fabrication and assembly operations
Manufacturing and production applications
Warehouse and industrial material handling
Repetitive applications where manual trolley travel is inefficient

Key Features:
Series 635 motor-driven configuration
Available in capacities from 1/8 to 3 Ton
30 and 75 FPM travel-speed options
Multiple industrial voltage configurations
1/4 HP drive on specified models
Powered forward and reverse positioning
Adjustable beam-fit configurations
Suitable for compatible straight and curved runway systems
