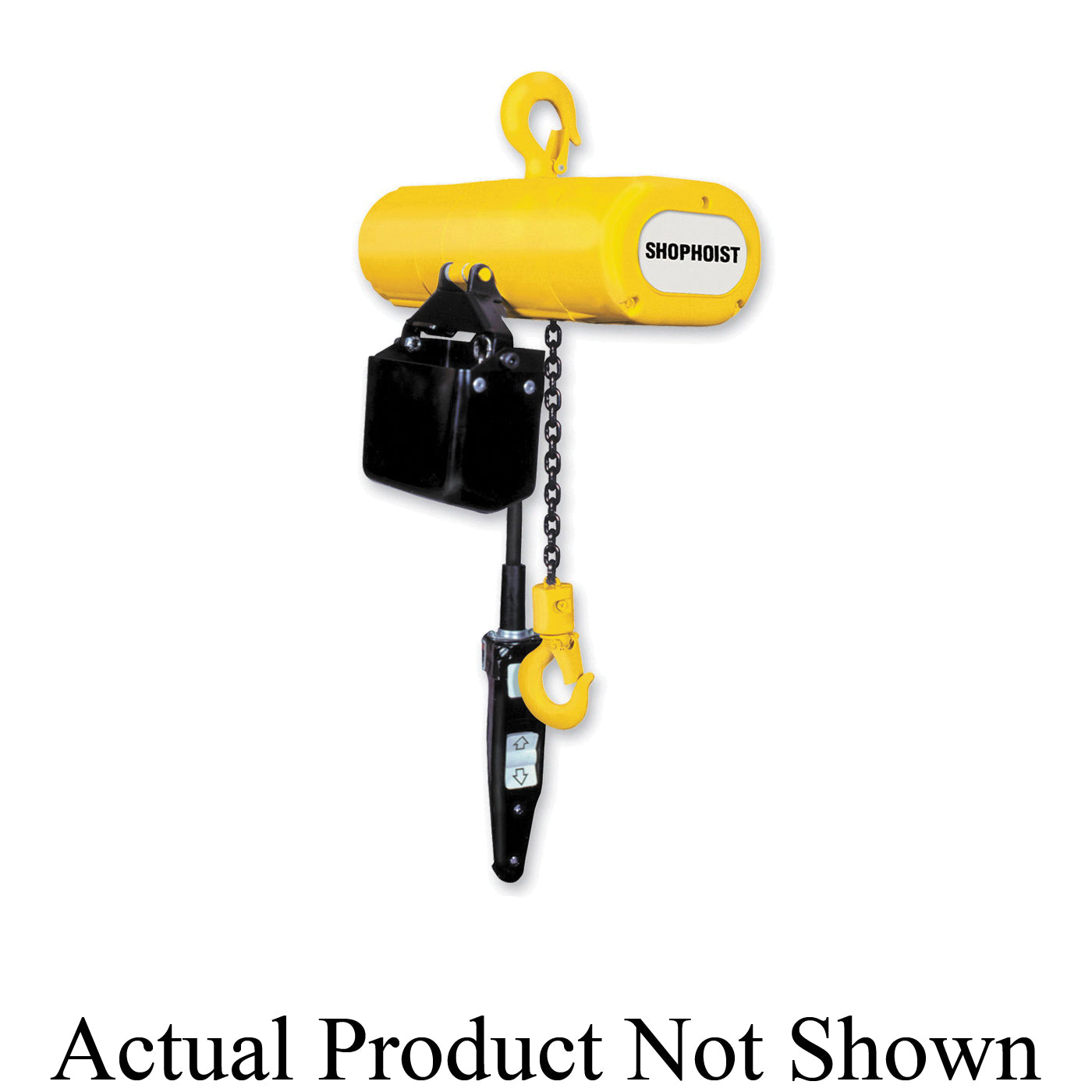

Budgit Shophoist Electric Chain Hoist - 1000 lb Double Reeving 10 ft Lift 6 FPM

Product Description

The Budgit Shophoist Electric Chain Hoist is a compact powered lifting unit designed for commercial and industrial material handling. The models shown have double-reeved load-chain configurations, 10 ft Lift and capacities of 500 lb, 600 lb or 1000 lb. Available lifting speeds include 6, 8, 12 and 20 FPM, depending on the selected capacity and electrical configuration. The listed models use 1/16 hp motors, one-speed controls, dual DC/regenerative braking and 1 in hook openings.

The Shophoist is built around a rugged cast aluminum alloy frame with a totally enclosed, non-ventilated design that helps protect the motor from environmental contamination. A thermally protected hoist-duty motor supports frequent lifting cycles, while precision bearings and a lifetime-lubricated gear train promote smooth, dependable operation with reduced routine maintenance. The epoxy powder-coated exterior provides added protection for demanding shop and production environments.

A 10-pocket oblique-lay liftwheel provides smooth chain engagement, consistent chain travel and reduced load-chain wear. The standard Protector overload device helps prevent excessive loading, while the dual braking system provides controlled stopping and load holding. A rigid latch-style upper hook helps prevent the power cord from becoming tangled, and the hardened forged steel lower hook rotates through 360° to assist with load alignment and true vertical lifting.

Material:
Cast aluminum alloy hoist frame
CM Hoist alloy load chain
Hardened forged steel lower hook
Epoxy powder-coated exterior finish

Compatible With:
Properly rated fixed overhead suspension points
Electrical supplies matching the selected model voltage and phase
Optional impact-resistant Shophoist chain containers

Uses:
Commercial and industrial lifting
Workstation and production-line material handling
Manufacturing and assembly operations
Maintenance and equipment servicing
Repetitive lifting applications

Key Features:
H4 duty cycle for frequent operation
Protector overload device
Dual DC and regenerative braking
NEMA 4 industrial control station
Lifetime-lubricated gear train
10-pocket oblique-lay liftwheel
