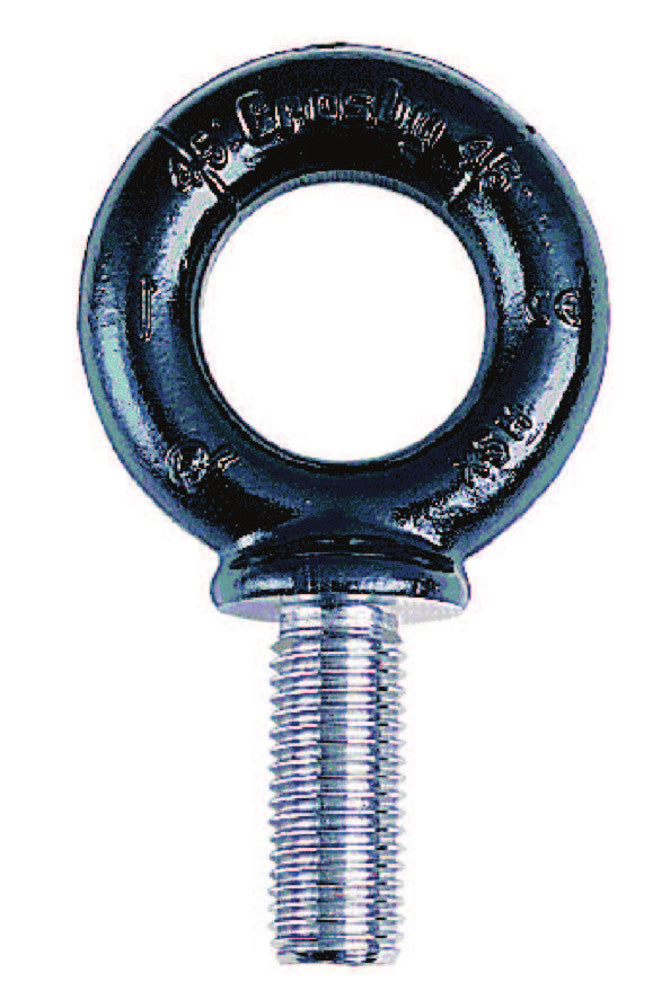

EYE BOLT 1-3/4X3-3/4 SHOULDER TYPE MACHI
Please note: images may not be exact representations. Always refer to manufacturer's specifications.
EYE BOLT 1-3/4X3-3/4 SHOULDER TYPE MACHI
$330.00
Forged Steel - Quenched & Tempered. Working Load Limits shown are for in-line pull. For angle loading, see Warnings & Applications. Fatigue rated at 1-1/2 times the Working Load Limit at 20,000 cycles. Recommended for in-line pull. S-279 threaded UNC. Meets or exceeds all requirements of ASME B30.26 including identification, ductility, design factor, proof load and temperature requirements. Importantly, these bolts meet other critical performance requirements including fatigue life, impact properties and material traceability, not addressed by ASME B30.26.
- BrandCrosby
- Diameter1-3/4"
- Shank Length3-3/4"
- Working Load Limit34000 LBS
Description
Forged Steel - Quenched & Tempered. Working Load Limits shown are for in-line pull. For angle loading, see Warnings & Applications. Fatigue rated at 1-1/2 times the Working Load Limit at 20,000 cycles. Recommended for in-line pull. S-279 threaded UNC. Meets or exceeds all requirements of ASME B30.26 including identification, ductility, design factor, proof load and temperature requirements. Importantly, these bolts meet other critical performance requirements including fatigue life, impact properties and material traceability, not addressed by ASME B30.26.
