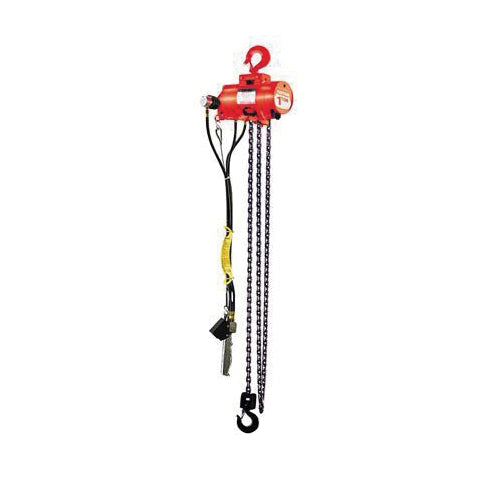

Coffing CAH Small-Frame Spark-Resistant Air Chain Hoist - 0.375 Ton, 10 ft Lift, Hook/Lug Suspension, 100 FPM, Pull-Cord Control

Product Description

Product Description:
The Coffing CAH small-frame spark-resistant air chain hoist provides pneumatic lifting and lowering for suspended loads up to 0.375 Ton. Its compact frame and hook/lug suspension configuration support installation in industrial work areas where space is limited and an air-powered lifting system is preferred over an electric hoist.

This model provides a 10 ft Lift and operates at a 100 FPM lifting speed. Pull-cord control allows the operator to command hoist movement from the operating position, while the pneumatic drive uses a 90 psi compressed-air supply with a rated consumption of 48 SCFM.

The spark-resistant configuration is intended for applications where reducing the potential for mechanically generated sparks is an important equipment-selection consideration. The hoist is suited to maintenance, processing, assembly, material transfer, and production environments with a compatible air supply and properly rated suspension point.

Material:
Manufacturer material specifications not provided in the supplied product data

Compatible With:
Properly rated overhead suspension points
Hook- or lug-mounted installations matching the hoist configuration
Compressed-air systems supplying 90 psi
Air systems capable of providing the specified 48 SCFM
Capacity-matched lifting attachments and below-the-hook equipment

Uses:
Lifting and lowering equipment
Positioning suspended loads
Industrial maintenance and repair
Manufacturing and assembly operations
Processing and production applications
Locations where pneumatic operation is preferred
Applications requiring reduced-sparking hoist construction

Key Features:
0.375 Ton rated load capacity
Compact small-frame construction
Spark-resistant configuration
10 ft Lift
100 FPM lifting speed
Pull-cord control
Hook/lug suspension
Pneumatic operation without an electric lifting motor
