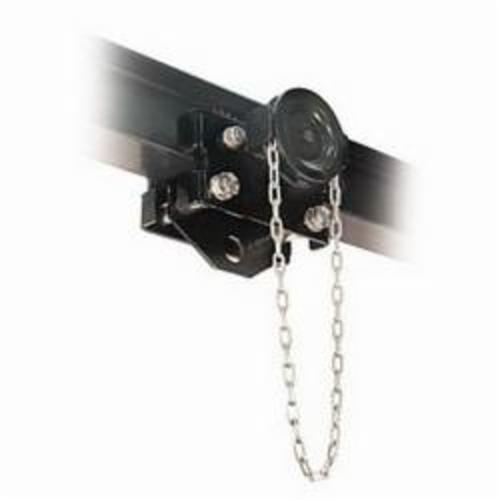

CBT Series Manual Geared Trolley - 2 Ton, 2.3 to 8.7 in Beam Flange

Product Description

CM CBT Series manual geared trolleys provide controlled horizontal travel for compatible hoists and suspended loads operating on overhead runway beams. The listed configurations cover capacities from 1 to 5 Ton and offer broad beam-flange adjustment ranges for use with various supporting beam sizes. Manual geared operation is suitable for industrial applications requiring more precise load positioning and less operating effort than a plain push trolley.

The geared travel mechanism allows the trolley to be moved gradually in either direction without an electric or pneumatic traverse motor. This controlled movement is useful for longer travel distances, heavier suspended loads, and applications where accurate positioning is important. Each trolley must be matched to the hoist capacity, suspension arrangement, beam dimensions, and required runway curvature.

The 1 Ton model fits beam flanges from 2.3 to 8.7 in, beam heights from 5 to 24 in, and a 36 in minimum-radius curve. The 1-1/2 and 2 Ton models fit 2.3 to 8.7 in flanges, beam heights from 6 to 24 in, and a 45 in minimum-radius curve. The 3 Ton model fits 3 to 8.7 in flanges with a 55 in minimum radius, while the 5 Ton model fits 3.5 to 8.7 in flanges with a 70 in minimum radius. Capacity-specific steel wheel diameters range from 2.36 to 4.92 in.

Material:
Steel trolley wheels
Metal geared travel components
Industrial trolley frame and beam-adjustment hardware
Additional material specifications not provided in the supplied product data

Compatible With:
Compatible hoists within the selected trolley’s rated capacity
Overhead beams within the specified flange-width range
Beams within the specified height range
Straight or curved runway beams meeting the model-specific minimum-radius requirement
Capacity-matched hoist suspension and trolley mounting components

Uses:
Providing controlled horizontal travel for suspended hoists
Positioning loads along overhead runway beams
Industrial maintenance and equipment installation
Fabrication and assembly operations
Manufacturing and production applications
Warehouse and material-handling systems
Applications where powered trolley travel is unnecessary

Key Features:
Manual geared travel for controlled load positioning
Available in capacities from 1 to 5 Ton
Broad adjustable beam-flange ranges
Capacity-specific beam-height compatibility
Steel trolley wheels
Suitable for compatible straight and curved runway beams
Reduced operating effort compared with plain push travel
No electric or pneumatic trolley motor required
