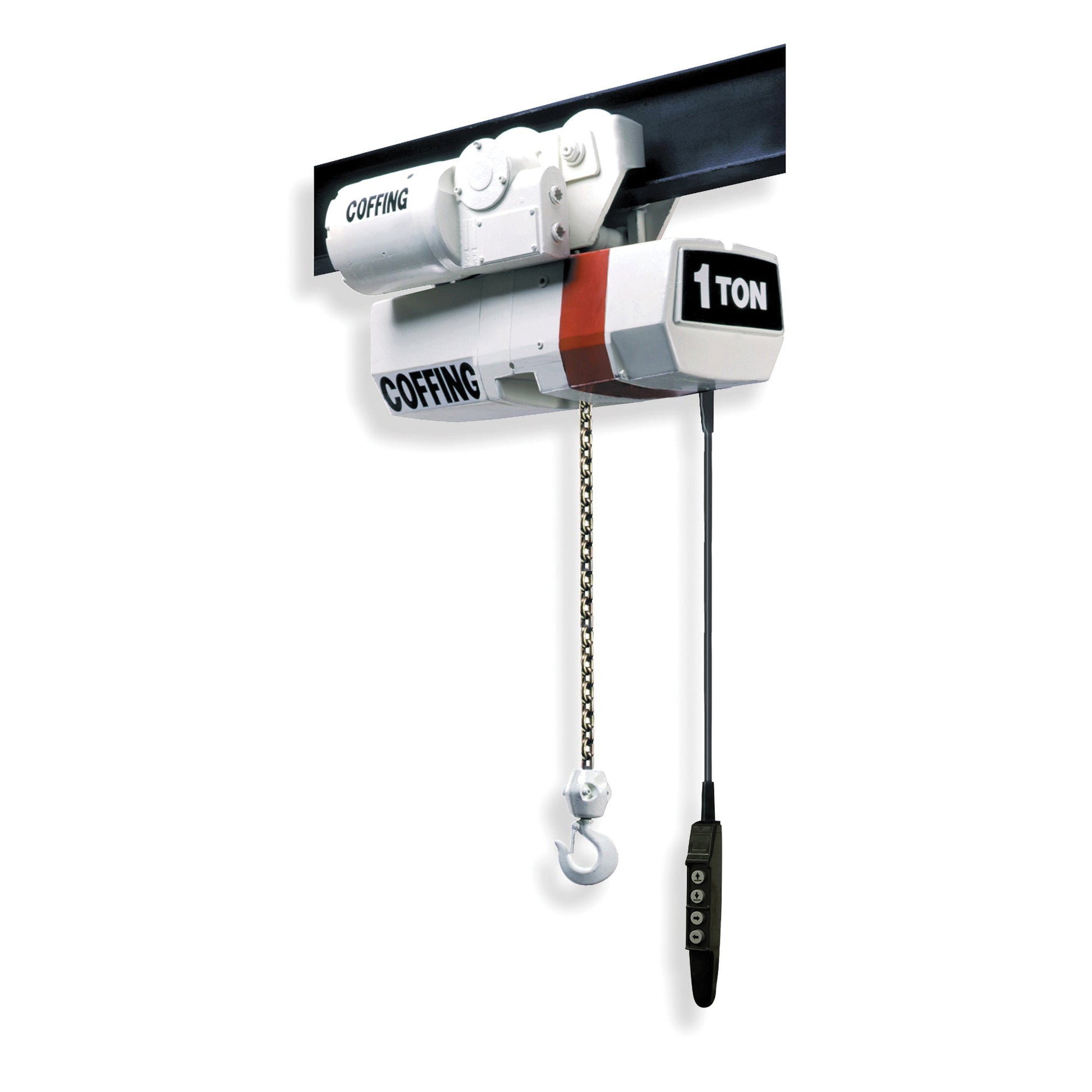

Coffing ECMT Electric Chain Hoist - 1 Ton Cross-Mount Motorized Trolley 15 ft Lift 48 FPM

Product Description

Product Description:
The Coffing ECMT Electric Chain Hoist combines a large-frame EC hoist with a cross-mounted motorized trolley for powered vertical lifting and horizontal load travel. The models shown range from 1 Ton to 5 Ton capacities, with 10, 15 or 20 ft Lift configurations and lifting speeds from 5 to 48 FPM. These models use one-speed hoist control and 230/460 VAC three-phase power.

The motorized trolley moves the hoist and suspended load along a compatible overhead beam without requiring the operator to manually push the load or pull a trolley hand chain. Powered horizontal travel is well suited to frequent material movement, longer runway systems and applications where controlled positioning of heavy components is required. Motorized trolley wheels are heat treated for additional durability in repeated industrial service.

The large-frame hoist uses ductile iron load-bearing housings with cast aluminum alloy covers and non-load-bearing enclosures. Heat-treated alloy steel gearing operates in an oil bath to provide dependable lubrication and effective heat dissipation. Independent multiple-disc motor and mechanical load brakes provide positive load control, while the overload-limiting clutch helps protect the lifting mechanism and supporting structure against excessive loading.

Material:
Ductile iron load-bearing housings
Cast aluminum alloy non-load-bearing housings
Heat-treated alloy steel gearing
Heat-treated cast iron trolley wheels
Steel trolley side plates

Compatible With:
American Standard I-beams
Wide-flange beams
Compatible patented track beams
230/460 VAC three-phase electrical systems
Beam sizes approved for the selected trolley configuration
Compatible Coffing motorized trolley controls

Uses:
Heavy industrial lifting and lowering
Powered movement along overhead beams
Manufacturing and production operations
Assembly-line material handling
Equipment installation and maintenance
Moving heavy loads over longer runway systems

Key Features:
Cross-mounted motorized trolley configuration
Powered horizontal load travel
Independent motor and mechanical load brakes
Overload-limiting clutch
Oil-bath-lubricated gearing
Adjustable upper and lower travel limits
