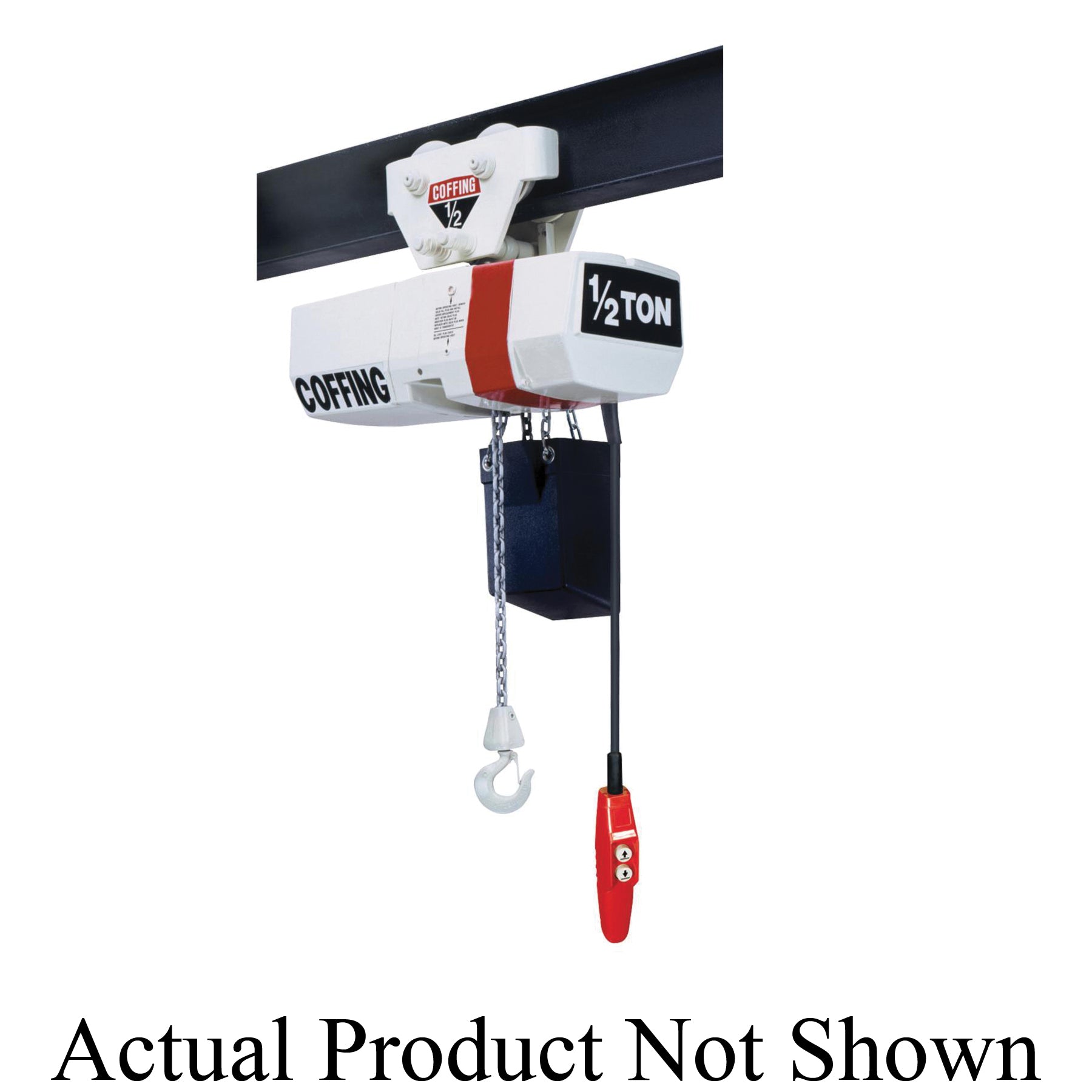

Coffing ECT Electric Chain Hoist - 0.25 Ton Small-Frame Parallel-Mount Plain Trolley 20 ft Lift 64 FPM

Product Description

The Coffing ECT Electric Chain Hoist combines a small-frame electric chain hoist with a parallel-mounted plain trolley for powered vertical lifting and manual horizontal load movement. The configurations shown range from 0.25 Ton to 3 Ton capacities, with 10, 15 or 20 ft Lift options and lifting speeds from 4 to 64 FPM. Each model uses one-speed control and is listed for 115/230/460 VAC operation.

The plain trolley allows the hoist and suspended load to be repositioned manually along a compatible overhead beam. This configuration is suited to workstations, production areas and maintenance applications where powered lifting is required but motorized trolley travel is unnecessary. The parallel-mounted design creates a compact integrated assembly, while the four-wheel trolley arrangement used on these capacity ranges supports smooth travel and operation on compatible curved tracks.

The small-frame EC hoist uses lightweight aluminum alloy housings to protect the mechanical and electrical components. Heat-treated alloy steel gearing operates in an oil bath for dependable lubrication and heat dissipation. Independent motor and mechanical load brakes provide controlled stopping and load holding, while an overload-limiting clutch helps protect the hoist against excessive loading. Adjustable upper and lower limit switches restrict hook travel during operation.

Material:
Cast aluminum alloy hoist housings
Heat-treated alloy steel gearing
Machined cast iron trolley wheels
Steel trolley side plates

Compatible With:
American Standard I-beams
Wide-flange beams
Compatible patented-track beams
115/230/460 VAC electrical systems
Beam flange widths approved for the selected trolley configuration

Uses:
Industrial lifting and lowering
Manual movement of suspended loads along overhead beams
Manufacturing and production operations
Assembly and fabrication applications
Equipment installation and maintenance
Warehouse and workstation material handling
Controlled positioning of machinery and production components

Key Features:
Parallel-mounted small-frame construction
Integrated plain trolley
Independent motor and mechanical load brakes
Overload-limiting clutch
Oil-bath-lubricated gearing
Adjustable upper and lower travel limits
