Coffing ECT Electric Chain Hoist - 5 Ton Cross-Mount Plain Trolley 10 ft Lift 8 FPM

Product Description

Product Description:

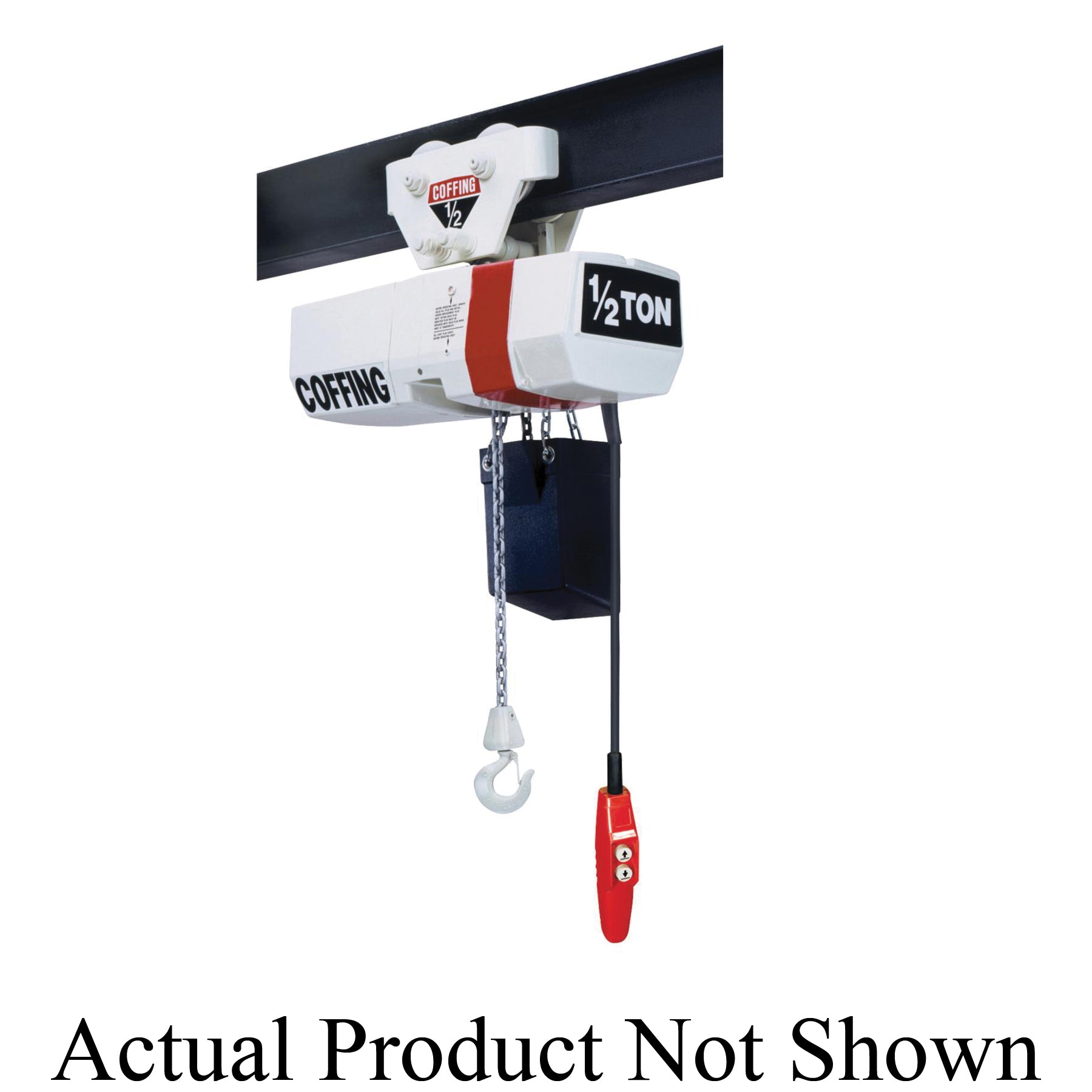

The Coffing ECT Electric Chain Hoist combines a large-frame EC electric hoist with a cross-mounted plain trolley for heavy-duty industrial lifting and manual horizontal load movement. The models shown range from 1 Ton to 5 Ton capacities, with 10, 15 or 20 ft Lift configurations and lifting speeds from 5 to 48 FPM. These models use one-speed control and 230/460 VAC three-phase power.

The plain trolley allows the operator to manually position the hoist and suspended load along a compatible overhead beam. Precision-machined cast iron trolley wheels operate on sealed, lifetime-lubricated ball bearings for smooth travel and extended service life. Wrap-around trolley side plates function as safety lugs and bumpers, helping protect the wheels during industrial operation.

The cross-mounted large-frame hoist uses ductile iron load-bearing housings for strength and cast aluminum alloy non-load-bearing housings to reduce unnecessary weight. Heat-treated alloy steel gearing operates in an oil bath for dependable lubrication and heat dissipation. Independent motor and mechanical load brakes provide controlled stopping and load holding, while the overload-limiting clutch helps protect the hoist against excessive loading.

Material:
Ductile iron load-bearing housings
Cast aluminum alloy non-load-bearing housings
Heat-treated alloy steel gearing
Machined cast iron trolley wheels
Steel wrap-around trolley side plates

Compatible With:
American Standard I-beams
Wide-flange beams
Compatible patented track beams
230/460 VAC three-phase electrical systems
Beam sizes approved for the selected trolley configuration

Uses:
Heavy industrial lifting and lowering
Manual movement of suspended loads along overhead beams
Manufacturing and production operations
Assembly and fabrication applications
Equipment installation and maintenance
Positioning heavy machinery and components

Key Features:
Cross-mounted large-frame construction
Integrated plain trolley for manual positioning
Independent motor and mechanical load brakes
Overload-limiting clutch
Oil-bath-lubricated gearing
Precision trolley wheels with sealed bearings
