2002426 - 6t EXOSET UNIVERSAL CLAMP

Product Description

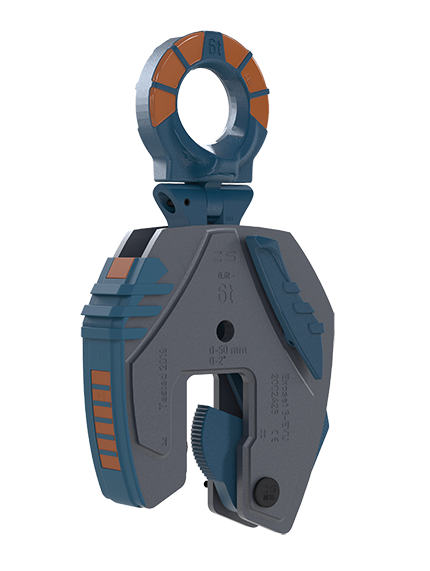

The Spanset EXOSET Universal Plate Clamp (EVU-6) is a 6 Ton capacity lifting clamp designed for the vertical lifting and handling of steel plates, beams, and structural sections. The EXOSET series features a universal jaw design that accommodates a wide range of material thicknesses and profiles, making it a versatile solution for steel fabrication, construction, and industrial material handling operations. With a jaw opening range of 0–2.00 in (0–50mm), this clamp is compatible with a broad variety of plate and structural steel dimensions commonly encountered in the field.

Engineered to meet ASME B30.20 and BTH-1 standards, the EVU-6 is built for use with materials up to a maximum hardness of 37HRC (364 HV), ensuring reliable grip performance on standard structural and plate steels. The clamp is designed to maintain secure engagement throughout the lift, with a minimum working load limit of 10% of the maximum WLL to ensure the jaw remains properly loaded during operation. The robust construction and precision jaw mechanism deliver consistent, repeatable performance in demanding lifting environments.

Backed by a 5-year warranty, the Spanset EXOSET Universal Plate Clamp is a premium lifting tool suited for riggers, steel erectors, fabricators, and material handling professionals who require a dependable, standards-compliant plate clamp for vertical lifting applications. Always inspect the clamp before use, verify material hardness compatibility, and operate within the rated working load limit and applicable rigging regulations.

Material: Alloy Steel Construction Maximum Material Hardness: 37HRC (364 HV)

Compatible With: Steel Plates Structural Beams and Sections Material up to 2.00 in (50mm) Thickness

Uses: Vertical Plate Lifting Steel Fabrication and Erection Structural Steel Handling Industrial Material Handling Rigging and Crane Operations

Key Features: 6 Ton Working Load Limit Jaw Opening: 0–2.00 in (0–50mm) ASME B30.20 and BTH-1 Certified Maximum Material Hardness: 37HRC (364 HV) Minimum WLL: 10% of Maximum WLL 5-Year Warranty Universal Jaw Design for Versatile Application

Note: For vertical lifting only. Verify material hardness does not exceed 37HRC (364 HV) before use. Minimum load of 10% of maximum WLL must be maintained during operation to ensure proper jaw engagement. Inspect before each use and operate within rated capacity.
