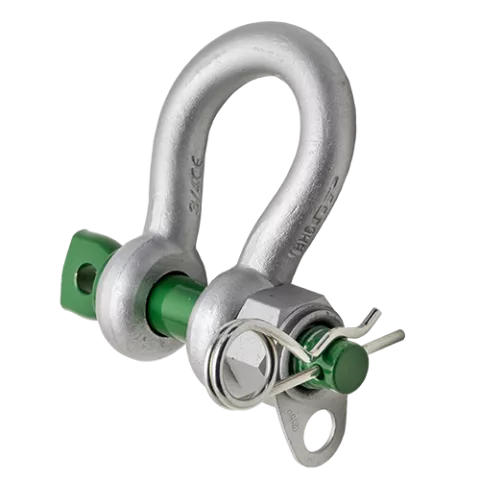

G-4163H, Green Pin® Catch Shackle BN, Standard bow shackle with safety bolt which enables all components to be tethered,GPGHMB19H

Product Description

The Green Pin® Catch Shackle BN (G-4163H) is a Grade 6 tether-ready bow shackle manufactured by Van Beest for lifting where dropped-object prevention is essential. Its safety bolt and nut connection is designed for dependable field use, while the hot-dip galvanized finish supports durability in industrial, construction and marine environments. This model is specified to ISO 2415, EN 13889, ASME B30.26, supporting use in professionally engineered lifting and rigging systems.

With a Working Load Limit of 4.75 tonnes and a 19 mm body diameter, a 22 mm pin diameter, the GPGHMB19H provides a size-specific solution for demanding lifting assemblies. The alloy-steel body is quenched and tempered for a strong, reliable connection, and its geometry supports correct load alignment when selected and used in accordance with the applicable rigging plan.

Dedicated tethering points help keep the bolt, nut and cotter pin attached during installation and removal, reducing dropped-object risk at height. As part of the Van Beest Green Pin® range, the G-4163H is designed for traceability, consistent performance and straightforward inspection in professional lifting operations.

Material: Grade 6 alloy steel Hot-dip galvanized finish

Compatible With: Tethered rigging components Wire rope slings Synthetic roundslings Master links

Uses: Work at height Offshore lifting Construction rigging Dropped-object prevention programs

Key Features: WLL: 4.75 t Body diameter: 19 mm Pin diameter: 22 mm Grade 6 alloy steel Safety bolt and nut Hot-dip galvanized finish Conforms to ISO 2415 Conforms to EN 13889 Conforms to ASME B30.26 Van Beest Green Pin® product
