Product Description

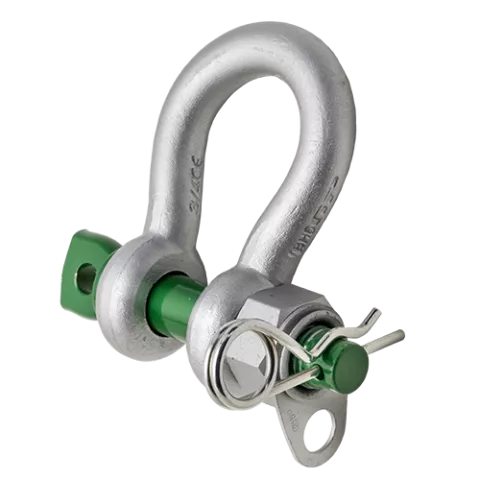

G-4163H, Green Pin® Catch Shackle BN, Standard bow shackle with safety bolt which enables all components to be tethered, to ISO 2415, EN13889, ASME B30.26, hot dipped galvanized, grade 6, diameter bow 28 mm, diameter pin 32 mm, WLL 9.5 t
| Specification | Value |
|---|---|
| Hole Diameter | 15 mm |
| Pin Diameter | 32 mm |
| Height | 74 mm |
| Eye Width | 28 mm |
| Working Load Limit | 9.5 t |
| Width | 131 mm |
| Type | Bow, safety bolt |
| Length | 185 mm |
| Grade | 6 |
