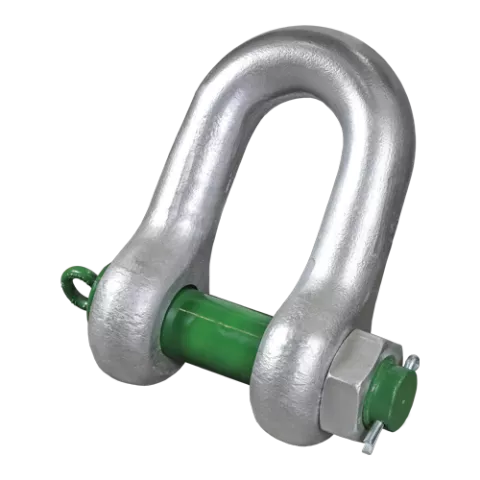

P-6038, Green Pin® Heavy Duty Shackle BN, High load capacity dee shackle with safety bolt,HDGPDM0120

Product Description

The Green Pin® Heavy Duty Shackle BN (P-6038) is a Grade 8 high-capacity dee shackle manufactured by Van Beest for heavy-duty in-line lifting connections. Its safety bolt and nut connection is designed for dependable field use, while the protective painted finish supports durability in industrial, construction and marine environments. This model is specified to ASME B30.26, supporting use in professionally engineered lifting and rigging systems.

With a Working Load Limit of 120 tonnes and a 95 mm body diameter, a 95 mm pin diameter, the HDGPDM0120 provides a size-specific solution for demanding lifting assemblies. The alloy-steel body is quenched and tempered for a strong, reliable connection, and its geometry supports correct load alignment when selected and used in accordance with the applicable rigging plan.

The narrow, straight-sided dee profile promotes alignment with hooks, master links and lifting beams in predominantly in-line loading. As part of the Van Beest Green Pin® range, the P-6038 is designed for traceability, consistent performance and straightforward inspection in professional lifting operations.

Material: Grade 8 alloy steel Protective painted finish

Compatible With: Master links Lifting hooks Lifting beams Wire rope slings

Uses: Heavy industrial lifting Offshore and marine lifting Steel and fabrication work In-line load connections

Key Features: WLL: 120 t Body diameter: 95 mm Pin diameter: 95 mm Grade 8 alloy steel Safety bolt and nut Protective painted finish Conforms to ASME B30.26 Van Beest Green Pin® product
