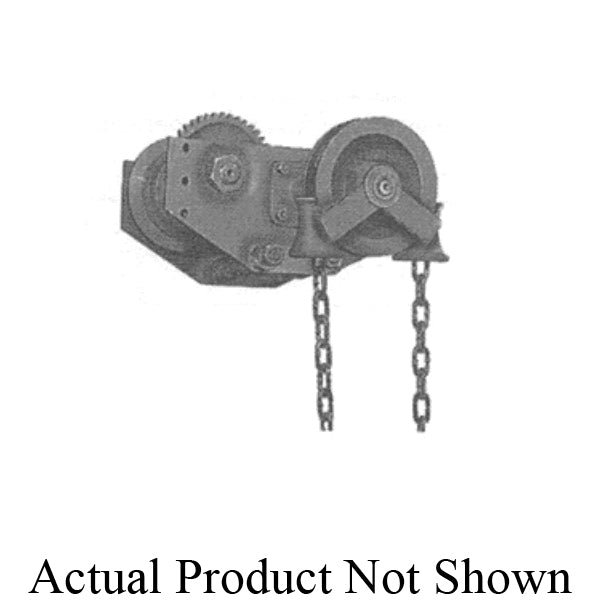

Budgit Heavy-Duty Hand-Geared Rigid-Mount Trolley - 7.5 Ton, 4 to 6-1/4 in Beam Flange

Product Description

Budgit heavy-duty hand-geared rigid-mount trolleys are designed to move compatible suspended hoists and loads along overhead runway beams with controlled manual travel. The listed configurations cover 1, 2, 3/4, 5/6, and 7.5 Ton capacities. Model-specific beam-flange ranges allow the appropriate trolley to be selected for the supporting runway and hoist arrangement.

The rigid-mount connection attaches the hoist directly to the trolley, creating a compact installation suited to applications where overhead clearance is limited. The trolley frame and suspension components must be correctly assembled around the selected beam so that the wheels remain properly engaged while maintaining the manufacturer-required flange clearance.

The hand chain operates a geared drive that transfers manual input to the trolley wheels. This system provides more controlled positioning than manually pushing the suspended load and is useful for heavier loads, longer travel distances, and applications requiring gradual movement. The listed 1 Ton configuration has a 3 ft minimum-radius curve, 4 in wheel-tread diameter, and 7-5/8 in headroom to the shaft. The listed 2 Ton and 3/4 Ton configurations have 5 ft minimum-radius curves, 4 in wheel-tread diameters, and 9-1/8 in headroom to the shaft.

Material:
Industrial metal trolley side frames
Steel operating hand chain
Metal geared drive components
Trolley wheel and axle assemblies
Rigid-mount suspension components
Steel beam-adjustment and fastening hardware

Compatible With:
Compatible Budgit hoists using the required rigid-mount connection
Overhead beams within the selected model’s flange-width range
Capacity-matched hoist and trolley mounting assemblies
Straight or curved runway beams meeting the model requirements
Runway systems providing proper wheel and flange clearance

Uses:
Providing controlled horizontal travel for suspended hoists
Moving loads along overhead runway beams
Low-headroom lifting installations
Industrial maintenance and equipment installation
Fabrication and assembly operations
Production and manufacturing applications
Heavy material handling without powered trolley travel

Key Features:
Heavy-duty industrial construction
Manual hand-chain geared operation
Rigid-mount suspension
Available in capacities through 7.5 Ton
Model-specific beam-flange ranges
Controlled travel without an external power source
Compact direct hoist mounting
Suitable for compatible straight or curved runway beams
Capacity-specific wheel and headroom configurations
