HOIST 3 TON AIR 12 LIFT 8 HAND CHAIN NO

Product Description

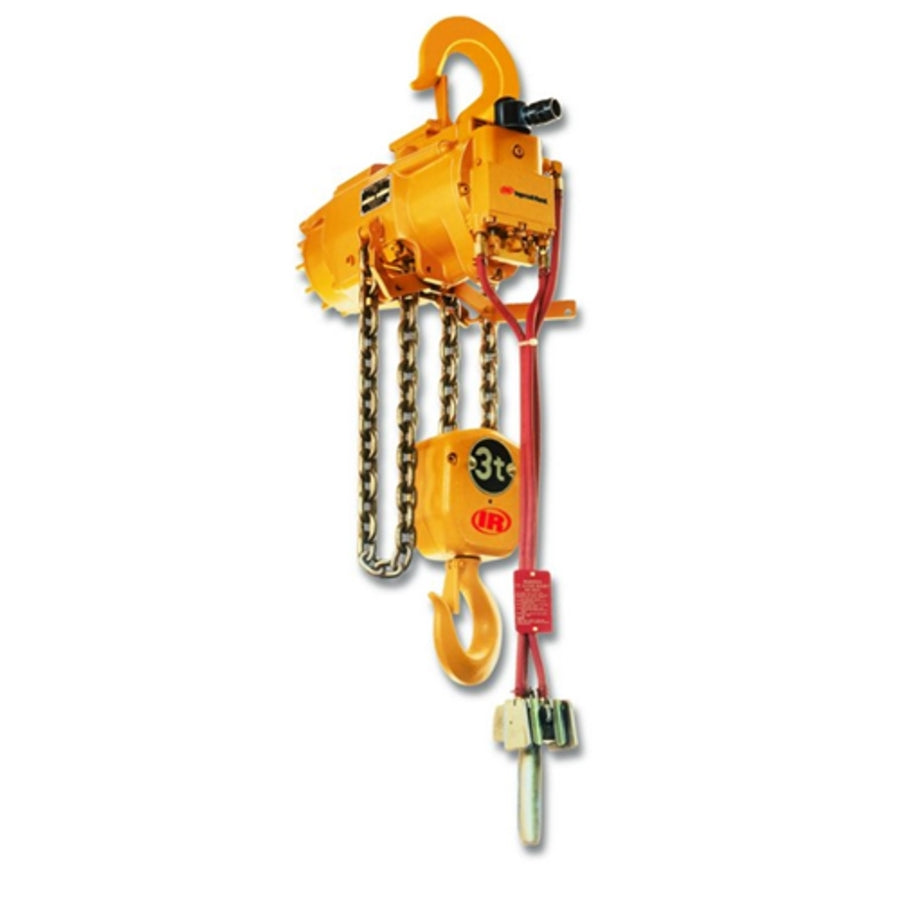

The Ingersoll Rand HLK Series Air Hoist is a pneumatic lifting device rated at 3 Ton working load limit, with 12 ft of lift height, 8 ft of hand chain, no pendant controls, and a fixed lug suspension, engineered for demanding industrial lifting applications in manufacturing, fabrication, foundry, and heavy maintenance environments where compressed air is the preferred or required power source. Pneumatic hoists are well suited for environments where electric hoists are not appropriate due to explosion hazard, high heat, washdown requirements, or other conditions that make electrical equipment unsuitable, as well as applications where the facility's compressed air infrastructure makes pneumatic operation the most practical choice.

The HLK Series designation identifies this hoist within Ingersoll Rand's air hoist product line, indicating the specific hoist body configuration, motor design, and performance characteristics within the series. At 3 Ton working load limit, this air hoist is suited for a wide range of medium to heavy industrial lifting tasks including machinery, fabricated assemblies, tooling, and structural components in facilities with adequate compressed air supply capacity.

The 12 ft lift height accommodates load pick-up from floor level and delivery to elevated work surfaces, fixtures, or crane hook positions within the hoist's operating range. The 8 ft hand chain allows the operator to control the hoist's air throttle valve manually from a safe working position without pendant controls, providing a simple and reliable control method for applications where a pendant control is not required or where the operating environment makes pendant controls impractical. The fixed lug suspension mounts the hoist to a fixed overhead structural point — such as a trolley, beam clamp, or structural attachment — providing a stationary hoist position suited for applications where the load is always lifted from the same location directly below the hoist.

As an Ingersoll Rand product, the HLK Series air hoist is built to the engineering and quality standards associated with the Ingersoll Rand line of industrial pneumatic hoists, and should be installed, operated, and maintained in accordance with Ingersoll Rand's specifications and applicable overhead hoist and crane safety standards including ASME B30.16.

Material: Steel alloy hoist body and load chain with precision-engineered pneumatic motor and load brake mechanism

Compatible With: Compressed air supply systems providing adequate pressure and volume for HLK Series hoist operation Overhead structural attachment points, beam clamps, and trolleys compatible with the fixed lug suspension Loads within the 3 Ton working load limit

Uses: Pneumatic lifting of loads up to 3 Ton in manufacturing, fabrication, foundry, and heavy maintenance environments Applications requiring air-powered hoisting where electric hoists are unsuitable due to hazardous area classification, high heat, or washdown requirements Fixed-position lifting applications where the load is always lifted from the same location below the hoist Applications where hand chain throttle control is preferred over pendant control operation

Key Features: 3 Ton working load limit 12 ft lift height for standard industrial bay applications 8 ft hand chain for manual throttle control from a safe working position No pendant controls for simplified operation in applications where pendant control is not required Fixed lug suspension for stationary hoist mounting to overhead structural attachment points Pneumatic operation suitable for hazardous, high-heat, and washdown environments Ingersoll Rand HLK Series designation for proven industrial air hoist performance

Note: The compressed air supply must provide adequate pressure and volume to meet the HLK Series hoist's operating requirements at the required lift speed and capacity. The supporting structure must be rated to carry the combined weight of the hoist and the maximum suspended load. Specifications including required air pressure, air consumption, hoist speed, lug dimensions, and applicable standards compliance should be confirmed against the official Ingersoll Rand HLK Series product documentation prior to ordering. Installation and periodic inspection must be performed in accordance with Ingersoll Rand's instructions and applicable overhead hoist and crane safety standards.
