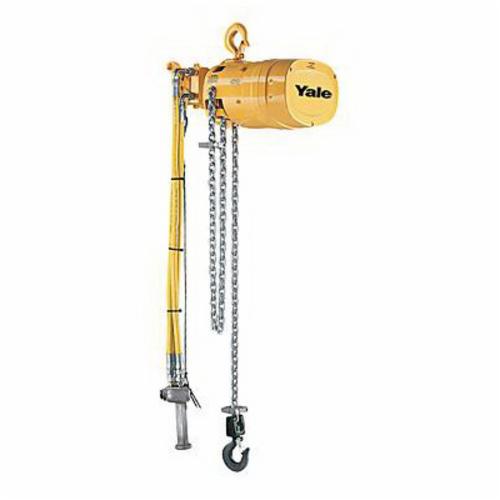

Yale KALC Air Chain Hoist - 0.5 Ton Plain Trolley 15 ft Lift

Product Description

The Yale KALC Air Chain Hoist is a pneumatic lifting system designed for repeated industrial lifting and controlled material handling. This model combines a 0.5 Ton air chain hoist with a plain trolley, 15 ft Lift and 30 FPM lifting speed. The integrated trolley allows the suspended load to be manually moved along a compatible overhead beam.

The KALC product family uses a multi-vane rotary air motor that provides high starting torque, smooth acceleration and responsive control. A full-flow pendant throttle and precision throttle valves regulate airflow for accurate load positioning, while an internal muffler helps reduce operating noise.

A positive-action Weston-type load brake holds the suspended load and supports controlled lifting and lowering. Precision-cut, heat-treated helical and spur gearing provides efficient power transmission, while overload protection helps protect the hoist against excessive loading. The plain trolley configuration is suited to applications requiring both vertical lifting and manual horizontal travel.

Material:
Die-cast aluminum hoist frame
Precision-cut, heat-treated helical gears
Precision-cut, heat-treated spur gears
Steel load chain
Steel trolley components

Compatible With:
Properly rated overhead beams
Beam flanges compatible with the selected trolley
Compressed-air systems sized for the hoist
Compatible Yale KALC chain containers

Uses:
Industrial lifting and lowering
Manual movement of suspended loads along overhead beams
Manufacturing and production operations
Assembly and fabrication work
Equipment installation and maintenance
Applications where pneumatic power is preferred

Key Features:
Integrated plain trolley
Multi-vane rotary air motor
Responsive pendant throttle control
Weston-type load brake
Overload protection
Internal muffler
