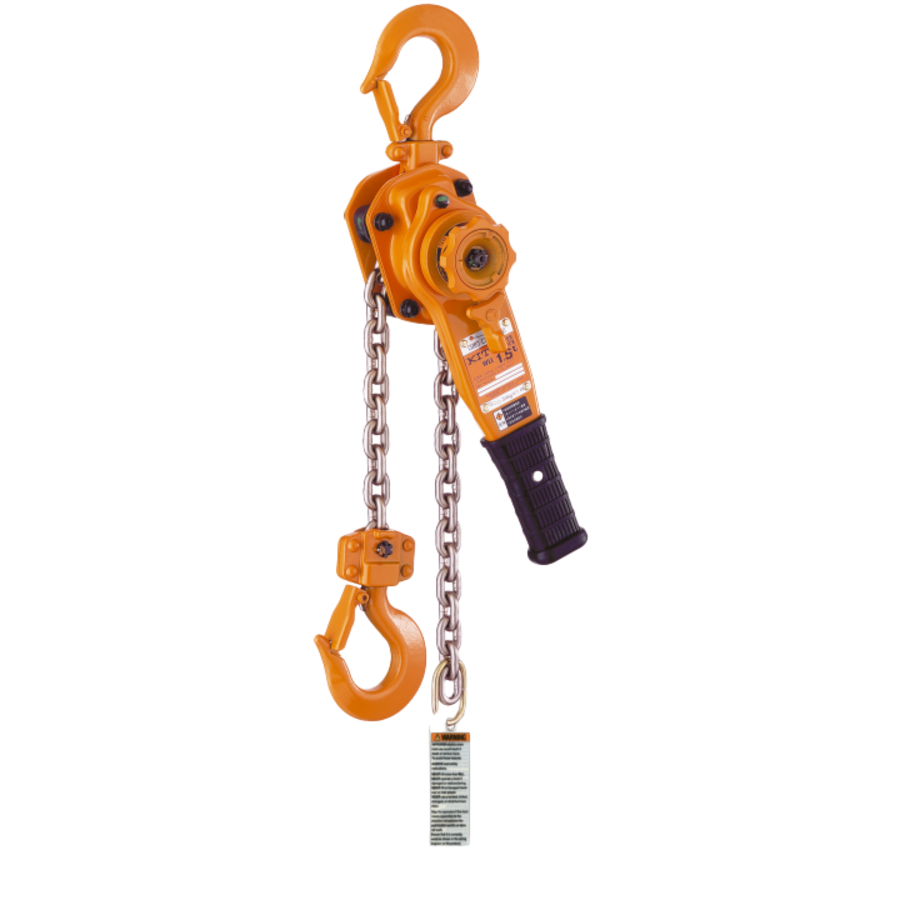

Kito L5 Series Lever Hoist - 3/4 Ton - 15 ft Lift

Product Description

The Kito L5 Series Lever Hoist is a rugged and dependable manual lifting tool designed for industrial use across a wide range of lifting, pulling, and tensioning applications. With a 3/4 Ton rated capacity and 15 ft of lift, this hoist is well suited for construction, steel erection, maintenance, shipbuilding, and general rigging work where a compact and reliable manual lever hoist is required. The 3/4 Ton capacity class makes this an ideal choice for lighter industrial rigging tasks where a full 1 Ton hoist would be unnecessarily heavy or cumbersome to deploy.

The L5 Series represents Kito's established legacy line of lever hoists, recognized for their straightforward mechanical design, field durability, and ease of maintenance. The lever-operated ratchet mechanism allows precise load positioning in both the lifting and lowering directions, giving the operator full control over load movement throughout the 15 ft lift range. The free-chaining function enables quick hook-to-hook setup without engaging the load brake, reducing setup time in multi-point rigging configurations and repetitive lifting tasks.

Built with an alloy steel load chain and a reinforced steel housing, the Kito L5 Lever Hoist is engineered to perform reliably under sustained loads and in demanding operating environments. Its compact form factor and relatively light weight for its capacity class make it easy to transport between work areas and deploy in confined or restricted-access locations where larger hoists cannot be accommodated. The L5 Series remains a proven and practical choice for industrial operations requiring a dependable manual lever hoist at the 3/4 Ton capacity level.

Material: Alloy steel load chain Steel housing and frame Heat-treated load sheave and gears

Compatible With: Standard rigging hardware and shackles Kito replacement load chain (L5 Series) Compatible beam trolleys for horizontal travel applications

Uses: Overhead lifting and lowering Load pulling and tensioning Load securing and tie-down Rigging in confined or restricted-headroom spaces Construction, maintenance, and general industrial rigging

Key Features: 3/4 Ton (750 kg) rated capacity 15 ft standard lift height Lever-operated ratchet mechanism for precise load control Free-chaining function for rapid hook positioning Alloy steel load chain for strength and durability Compact and field-serviceable design Forward and reverse load control via lever handle

Note: The L5 Series is a legacy Kito lever hoist line. Confirm current availability, replacement parts, and compatible accessories with your Kito distributor.
