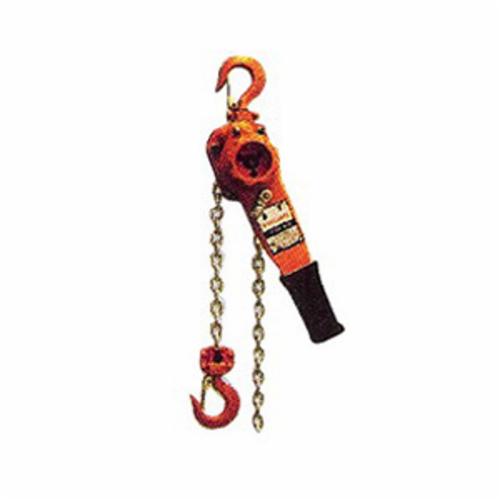

Yale PE Series Ratchet Lever Hoist - 1-1/2 Ton, 20 ft Lift

Product Description

Product Description:
Yale PE Series ratchet lever hoists are manually operated chain hoists designed for lifting, lowering, pulling, tensioning, and positioning loads. The listed configurations include 3/4, 1-1/2, and 6 Ton capacities with lifting heights from 5 to 25 ft, providing options for general industrial maintenance, construction, fabrication, equipment installation, and material-handling applications.

The operating handle uses a pumping action to move the load, while a selector lever allows the operator to choose lifting, lowering, or neutral operation. When the unloaded hoist is placed in neutral, the separate free-chain control disengages the load-brake pawl so the chain can be moved rapidly in either direction for faster hook positioning and attachment.

The PE Series uses link-type load chain and hook suspension for portable installation from a properly rated supporting point. The internal ratchet, pawl, gearing, and dry-operating load brake work together to provide controlled load movement and holding. The manufacturer’s documentation covers PE configurations from 3/4 through 6 Ton and includes capacity-specific hook blocks, chain arrangements, and load-bearing components.

Material:
Steel link-type load chain
Metal frame and protective side covers
Metal operating lever
Steel gearing, ratchet, pawl, and brake components
Upper and lower load hooks
Exact material grades and exterior finish are not specified in the available PE Series documentation

Compatible With:
Properly rated fixed suspension and anchoring points
Properly rated hook-mount trolleys and beam attachments
Capacity-specific Yale PE Series replacement load chain
Approved slings and lifting attachments properly seated within the hook saddle

Uses:
Lifting and lowering industrial loads
Pulling and positioning machinery
Tensioning and alignment work
Construction and fabrication
Plant maintenance and repair
Equipment installation
Material handling in areas without powered lifting equipment

Key Features:
Available in multiple capacities and lifting heights
Manual ratchet-lever operation
UP, DOWN, and neutral selector positions
Free-chain control for rapid unloaded chain adjustment
Dry-operating load brake
Link-type load chain
Hook-suspended portable construction
Controlled incremental load movement
Capacity-specific chain and hook-block arrangements
